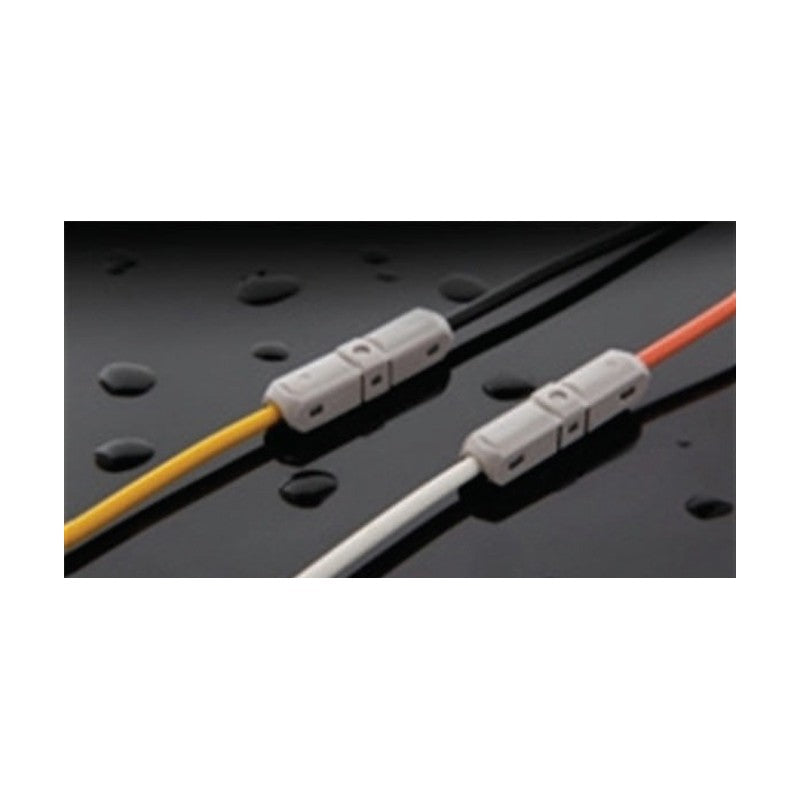

Jeoneo JQC Insulation-Displacement Quick Connectors

Jeoneo JQC Insulation-Displacement Quick Connectors

Insulation-displacement quick connectors (IDMC technology) for in-line and T-joint wire splicing without stripping, taping or splicing.

Key features

  • No stripping, splicing or taping needed
  • Protected from water and dust (IP33); IP65 with JOWX waterproof housing
  • Shock proof and easy to use
  • For solid and stranded wire
  • PC/ABS flame-retardant housing with tin-plated brass terminal; RoHS compliant

Specifications

Connection method Insulation displacement and multiple connection (IDMC)
Housing PC/ABS, flame retardant
Terminal Tin-plated brass
Temperature range -40 to 90 °C
Pack qty 100
Jeoneo JQC Insulation-Displacement Quick Connectors
JQCI-1 Connector type: In-line (I-type) | Wire range: AWG 23-20 / 0.3-0.5 mm² | Current: 3 A | Measured voltage: 12-24 V | Tensile strength: 45 N | Color: White | Weight: 0.8 g | Dimensions (mm): H 6, W 5.7, L 25
JQCI-2 Connector type: In-line (I-type) | Wire range: AWG 19-18 / 0.75 mm² | Current: 10 A | Measured voltage: 100-600 V | Tensile strength: 55 N | Color: Charcoal | Weight: 1 g | Dimensions (mm): H 6.9, W 6.3, L 30
JQCI-3 Connector type: In-line (I-type) | Wire range: AWG 16-14 / 1.5 mm² | Current: 15 A | Measured voltage: 100-600 V | Tensile strength: 85 N | Color: Yellow | Weight: 2.1 g | Dimensions (mm): H 7.5, W 7.2, L 30
JQCI-4 Connector type: In-line (I-type) | Wire range: AWG 13-12 / 2.5 mm² | Current: 20 A | Measured voltage: 100-600 V | Tensile strength: 120 N | Color: Green | Weight: 2.5 g | Dimensions (mm): H 7.8, W 7.7, L 36
JQCI-5 Connector type: In-line (I-type) | Wire range: AWG 11-10 / 4 mm² | Current: 25 A | Measured voltage: 100-600 V | Tensile strength: 140 N | Color: Orange | Weight: 4.4 g | Dimensions (mm): H 10.8, W 10.5, L 40
JQCT-1 Connector type: T-joint (T-type) | Wire range: AWG 23-20 / 0.3-0.5 mm² | Current: 3 A | Measured voltage: 12-24 V | Tensile strength: 40 N | Color: White | Weight: 1 g | Dimensions (mm): H 5.8, W 5.7, L 25.6, W (T) 14
JQCT-2 Connector type: T-joint (T-type) | Wire range: AWG 19-18 / 0.75 mm² | Current: 10 A | Measured voltage: 100-600 V | Tensile strength: 65 N | Color: Charcoal | Weight: 1.6 g | Dimensions (mm): H 6.9, W 6.3, L 30.9, W (T) 16.1
JQCT-3 Connector type: T-joint (T-type) | Wire range: AWG 16-14 / 1.5 mm² | Current: 15 A | Measured voltage: 100-600 V | Tensile strength: 75 N | Color: Yellow | Weight: 2.9 g | Dimensions (mm): H 7.5, W 7.2, L 30.9, W (T) 15.7
JQCT-4 Connector type: T-joint (T-type) | Wire range: AWG 13-12 / 2.5 mm² | Current: 20 A | Measured voltage: 100-600 V | Tensile strength: 120 N | Color: Green | Weight: 3.3 g | Dimensions (mm): H 7.8, W 7.7, L 37.6, W (T) 18
JQCT-5 Connector type: T-joint (T-type) | Wire range: AWG 11-10 / 4 mm² | Current: 25 A | Measured voltage: 100-600 V | Tensile strength: 160 N | Color: Orange | Weight: 5.7 g | Dimensions (mm): H 10.8, W 10.5, L 41.8, W (T) 20
JQDI-2 Connector type: In-line (DI-type) | Wire range: AWG 19-18 / 0.75 mm² | Current: 10 A | Measured voltage: 12-24 V | Tensile strength: 85 N | Color: Charcoal | Weight: 3.5 g | Dimensions (mm): H 6.1, W 10.5, L 22.8
Wire ConnectorsJeoneo
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JQC Insulation-Displacement Quick Connectors

Brand Jeoneo·Wire Connectors

Available part numbers (11)

JQCI-1, JQCI-2, JQCI-3, JQCI-4, JQCI-5, JQCT-1, JQCT-2, JQCT-3, JQCT-4, JQCT-5 + 1 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JQC Insulation-Displacement Quick Connectors
0 selected
RFQ List (0)
Product codeSpec
JQCI-1Connector type: In-line (I-type) | Wire range: AWG 23-20 / 0.3-0.5 mm² | Current: 3 A | Measured voltage: 12-24 V | Tensile strength: 45 N | Color: White | Weight: 0.8 g | Dimensions (mm): H 6, W 5.7, L 25
JQCI-2Connector type: In-line (I-type) | Wire range: AWG 19-18 / 0.75 mm² | Current: 10 A | Measured voltage: 100-600 V | Tensile strength: 55 N | Color: Charcoal | Weight: 1 g | Dimensions (mm): H 6.9, W 6.3, L 30
JQCI-3Connector type: In-line (I-type) | Wire range: AWG 16-14 / 1.5 mm² | Current: 15 A | Measured voltage: 100-600 V | Tensile strength: 85 N | Color: Yellow | Weight: 2.1 g | Dimensions (mm): H 7.5, W 7.2, L 30
JQCI-4Connector type: In-line (I-type) | Wire range: AWG 13-12 / 2.5 mm² | Current: 20 A | Measured voltage: 100-600 V | Tensile strength: 120 N | Color: Green | Weight: 2.5 g | Dimensions (mm): H 7.8, W 7.7, L 36
JQCI-5Connector type: In-line (I-type) | Wire range: AWG 11-10 / 4 mm² | Current: 25 A | Measured voltage: 100-600 V | Tensile strength: 140 N | Color: Orange | Weight: 4.4 g | Dimensions (mm): H 10.8, W 10.5, L 40
JQCT-1Connector type: T-joint (T-type) | Wire range: AWG 23-20 / 0.3-0.5 mm² | Current: 3 A | Measured voltage: 12-24 V | Tensile strength: 40 N | Color: White | Weight: 1 g | Dimensions (mm): H 5.8, W 5.7, L 25.6, W (T) 14
JQCT-2Connector type: T-joint (T-type) | Wire range: AWG 19-18 / 0.75 mm² | Current: 10 A | Measured voltage: 100-600 V | Tensile strength: 65 N | Color: Charcoal | Weight: 1.6 g | Dimensions (mm): H 6.9, W 6.3, L 30.9, W (T) 16.1
JQCT-3Connector type: T-joint (T-type) | Wire range: AWG 16-14 / 1.5 mm² | Current: 15 A | Measured voltage: 100-600 V | Tensile strength: 75 N | Color: Yellow | Weight: 2.9 g | Dimensions (mm): H 7.5, W 7.2, L 30.9, W (T) 15.7
JQCT-4Connector type: T-joint (T-type) | Wire range: AWG 13-12 / 2.5 mm² | Current: 20 A | Measured voltage: 100-600 V | Tensile strength: 120 N | Color: Green | Weight: 3.3 g | Dimensions (mm): H 7.8, W 7.7, L 37.6, W (T) 18
JQCT-5Connector type: T-joint (T-type) | Wire range: AWG 11-10 / 4 mm² | Current: 25 A | Measured voltage: 100-600 V | Tensile strength: 160 N | Color: Orange | Weight: 5.7 g | Dimensions (mm): H 10.8, W 10.5, L 41.8, W (T) 20
JQDI-2Connector type: In-line (DI-type) | Wire range: AWG 19-18 / 0.75 mm² | Current: 10 A | Measured voltage: 12-24 V | Tensile strength: 85 N | Color: Charcoal | Weight: 3.5 g | Dimensions (mm): H 6.1, W 10.5, L 22.8
