Jeoneo JRE/JRD Nylon Fully Insulated Bullet and Receptacle Disconnects

Nylon fully insulated double-crimp bullet (JRD) and receptacle (JRE) disconnects for 0.5 to 0.75 mm² wire.

Key features

Double crimp with D-type reinforcement sleeve
Easy-entry nylon insulation
Maximum rating 300 V, 105 °C

Specifications

Terminal material	Brass
Plating	Electro-tin
Insulation	Easy-entry nylon
Maximum voltage	300 V
Maximum temperature	105 °C
Wire range (AWG)	22~18
Wire range (mm²)	0.5~0.75
Pack qty	500

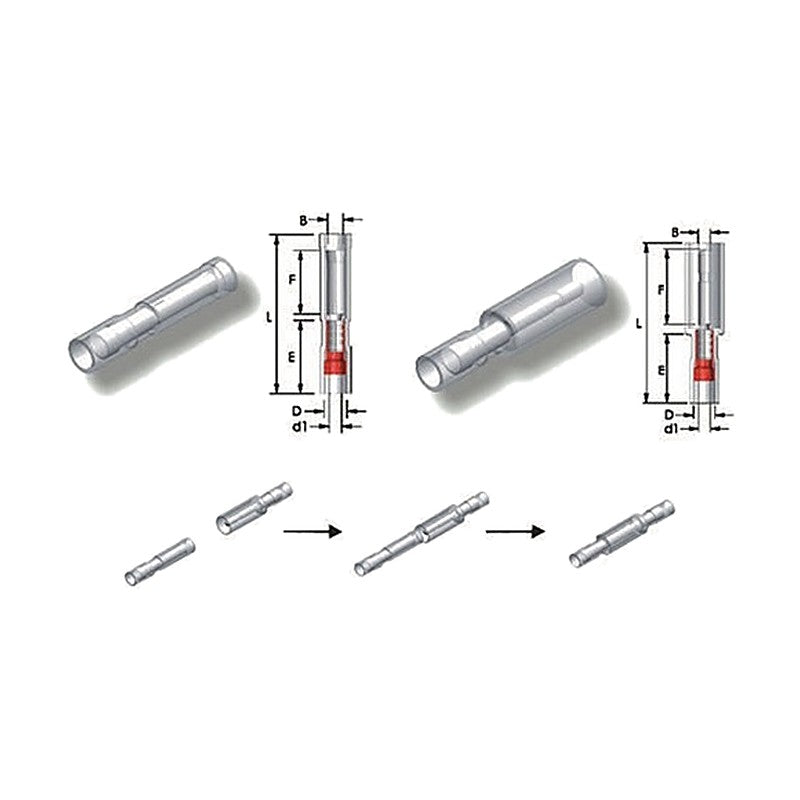

JRE-052AFD		Dimensions (mm): B 2.1, L 24.0, E 11.0, F 10.0, d1 1.6, D 3.5
JRD-052AFD		Dimensions (mm): B 2.0, L 26.5, E 11.0, F 12.3, d1 1.6, D 3.5

Quick Disconnect TerminalsJeoneo

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JRE/JRD Nylon Fully Insulated Bullet and Receptacle Disconnects

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (2)

JRE-052AFD, JRD-052AFD

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
