Jeoneo JS Snap Bushings

Jeoneo JS Snap Bushings

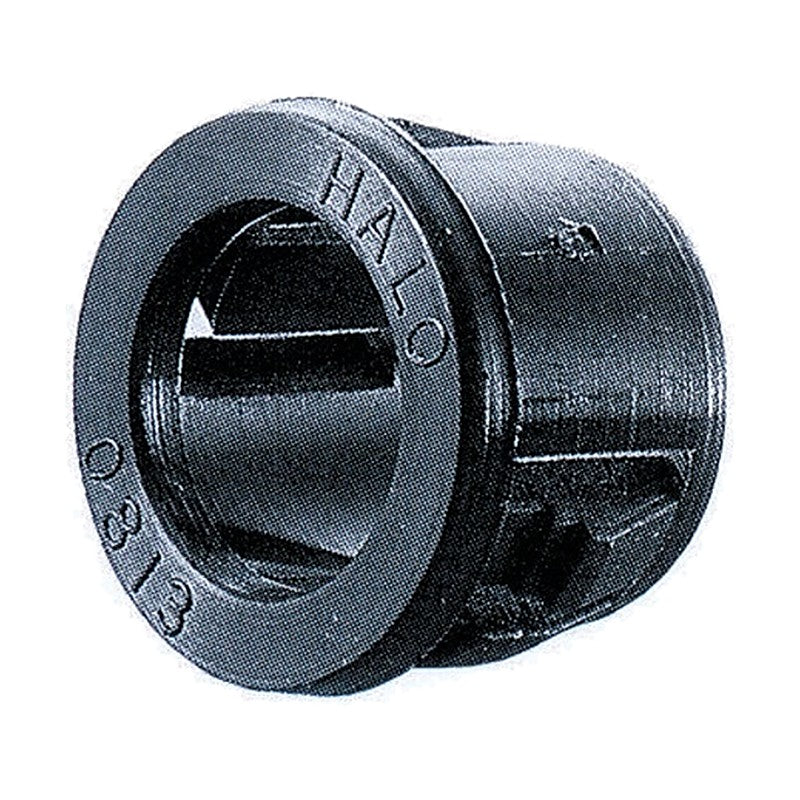

Black flame-resistant nylon 6.6 snap bushings that protect wires passing through panel holes of 8 to 16 mm.

Key features

  • Nylon 6.6, self-extinguishing to UL94 V-2
  • UL recognized and CSA certified

Specifications

Material Nylon 6.6, UL94 V-2
Color Black
Pack qty (bag) 1000
Jeoneo JS Snap Bushings
JS312-3 Mounting hole D (mm): 8 | Head dia. B (mm): 9.6 | Inside dia. A (mm): 5.2 | Overall height C (mm): 8.3 | Pack qty (carton): 30000
JS375-4 Mounting hole D (mm): 9.5 | Head dia. B (mm): 12 | Inside dia. A (mm): 6.4 | Overall height C (mm): 10.3 | Pack qty (carton): 20000
JS0811 Mounting hole D (mm): 11.1 | Head dia. B (mm): 13.6 | Inside dia. A (mm): 8.2 | Overall height C (mm): 10.3 | Pack qty (carton): 20000
JS0813 Mounting hole D (mm): 13 | Head dia. B (mm): 15.1 | Inside dia. A (mm): 9.8 | Overall height C (mm): 10.3 | Pack qty (carton): 10000
JS1216 Mounting hole D (mm): 16 | Head dia. B (mm): 18.1 | Inside dia. A (mm): 12.9 | Overall height C (mm): 10.3 | Pack qty (carton): 10000
Panel HardwareJeoneo
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JS Snap Bushings

Brand Jeoneo·Panel Hardware

Available part numbers (5)

JS312-3, JS375-4, JS0811, JS0813, JS1216

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JS Snap Bushings
0 selected
RFQ List (0)
Product codeSpec
JS312-3Mounting hole D (mm): 8 | Head dia. B (mm): 9.6 | Inside dia. A (mm): 5.2 | Overall height C (mm): 8.3 | Pack qty (carton): 30000
JS375-4Mounting hole D (mm): 9.5 | Head dia. B (mm): 12 | Inside dia. A (mm): 6.4 | Overall height C (mm): 10.3 | Pack qty (carton): 20000
JS0811Mounting hole D (mm): 11.1 | Head dia. B (mm): 13.6 | Inside dia. A (mm): 8.2 | Overall height C (mm): 10.3 | Pack qty (carton): 20000
JS0813Mounting hole D (mm): 13 | Head dia. B (mm): 15.1 | Inside dia. A (mm): 9.8 | Overall height C (mm): 10.3 | Pack qty (carton): 10000
JS1216Mounting hole D (mm): 16 | Head dia. B (mm): 18.1 | Inside dia. A (mm): 12.9 | Overall height C (mm): 10.3 | Pack qty (carton): 10000
