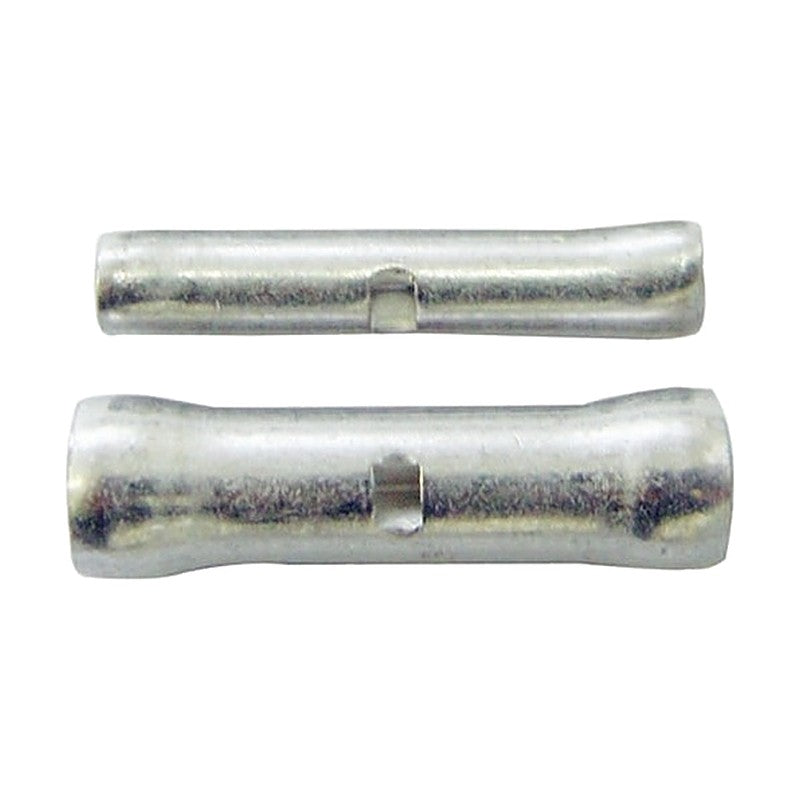

Jeoneo JSFE Non-Insulated Butt Splices, Metric Funnel Entry

Jeoneo JSFE Non-Insulated Butt Splices, Metric Funnel Entry

Non-insulated tin-plated copper butt splices with metric funnel entry for 1.5 to 6 mm² wire.

Key features

  • Internal wire stop prevents over-insertion of the conductor

Specifications

Material Electrolytic copper
Surface Tin plated
Pack qty 1,000
Jeoneo JSFE Non-Insulated Butt Splices, Metric Funnel Entry
JSFE 15 Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): D 4.3, d1 1.8, d2 3.1, L 22
JSFE 25 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): D 4.6, d1 2.4, d2 3.6, L 22
JSFE 6 Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): D 6.4, d1 3.6, d2 5.0, L 23
Butt SplicesJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JSFE Non-Insulated Butt Splices, Metric Funnel Entry

Brand Jeoneo·Butt Splices

Available part numbers (3)

JSFE 15, JSFE 25, JSFE 6

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JSFE Non-Insulated Butt Splices, Metric Funnel Entry
0 selected
RFQ List (0)
Product codeSpec
JSFE 15Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): D 4.3, d1 1.8, d2 3.1, L 22
JSFE 25Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): D 4.6, d1 2.4, d2 3.6, L 22
JSFE 6Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): D 6.4, d1 3.6, d2 5.0, L 23
