Jeoneo JSK Quick Splice Connectors

Jeoneo JSK Quick Splice Connectors

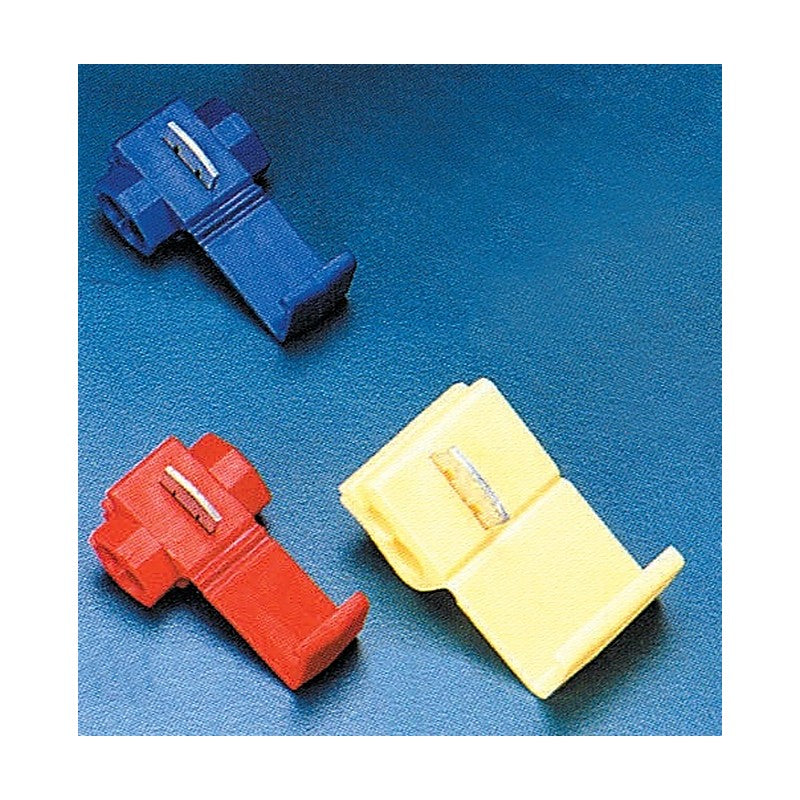

Insulation-displacement quick splice (tap) connectors with PP body and metal insert for 0.5 to 6 mm² wires.

Key features

  • Working temperature 125 °C

Specifications

Body PP with metal insert
Working temperature 125 °C
Jeoneo JSK Quick Splice Connectors
JSK-1 Wire range: 22~18 AWG / 0.5~1.0 mm² | Color: Red | Pack qty (bag): 500 | Pack qty (carton): 10,000
JSK-2 Wire range: 18~14 AWG / 0.75~2.5 mm² | Color: Blue | Pack qty (bag): 500 | Pack qty (carton): 10,000
JSK-3 Wire range: 12~10 AWG / 4~6 mm² | Color: Yellow | Pack qty (bag): 250 | Pack qty (carton): 5,000
Wire ConnectorsJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JSK Quick Splice Connectors

Brand Jeoneo·Wire Connectors

Available part numbers (3)

JSK-1, JSK-2, JSK-3

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JSK Quick Splice Connectors
0 selected
RFQ List (0)
Product codeSpec
JSK-1Wire range: 22~18 AWG / 0.5~1.0 mm² | Color: Red | Pack qty (bag): 500 | Pack qty (carton): 10,000
JSK-2Wire range: 18~14 AWG / 0.75~2.5 mm² | Color: Blue | Pack qty (bag): 500 | Pack qty (carton): 10,000
JSK-3Wire range: 12~10 AWG / 4~6 mm² | Color: Yellow | Pack qty (bag): 250 | Pack qty (carton): 5,000
