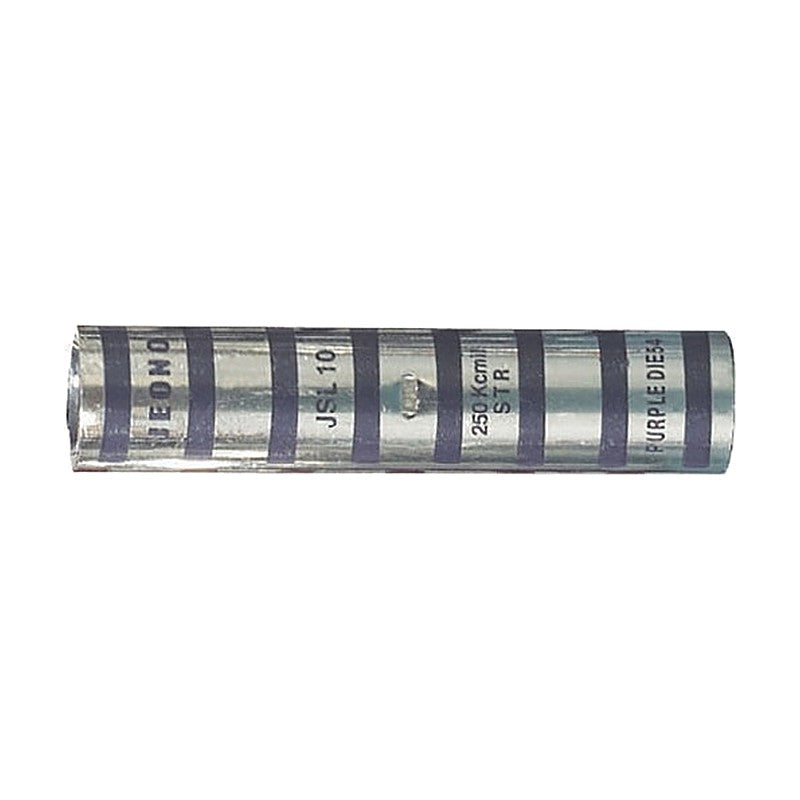

Jeoneo JSL Code Conductor Butt Splices, Long Barrel

Jeoneo JSL Code Conductor Butt Splices, Long Barrel

Long-barrel copper butt splices (Type SL) with internal wire stop for 1.5 to 800 mm² code conductors.

Key features

  • Internal wire stop prevents over-insertion of cable
  • Color stripe or color code identifies wire range and die
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Jeoneo JSL Code Conductor Butt Splices, Long Barrel
JSL 015 Wire range: 20~16 AWG / 1.5 mm² | Color code / die: Red | Pack qty: 1,000 | Dimensions (mm): d1 2.0, D 3.0, L 25
JSL 025 Wire range: 16~14 AWG / 2.5 mm² | Color code / die: Blue | Pack qty: 1,000 | Dimensions (mm): d1 2.5, D 3.5, L 25
JSL 4 Wire range: 14~12 AWG / 4 mm² | Color code / die: Brown | Pack qty: 1,000 | Dimensions (mm): d1 3.2, D 4.5, L 25
JSL 6 Wire range: 12~10 AWG / 6 mm² | Color code / die: Yellow | Pack qty: 1,000 | Dimensions (mm): d1 4.0, D 5.5, L 25
JSL 10 Wire range: 8 AWG / 10 mm² | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): d1 4.7, D 6.7, L 57
JSL 16 Wire range: 6 AWG / 16 mm² | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 61
JSL 25 Wire range: 4~3 AWG / 25 mm² | Color code / die: Gray 29 | Pack qty: 200 | Dimensions (mm): d1 6.7, D 9.0, L 61
JSL 35 Wire range: 2 AWG / 35 mm² | Color code / die: Brown 33 | Pack qty: 100 | Dimensions (mm): d1 8.1, D 10.6, L 67
JSL 50 Wire range: 1 AWG / 50 mm² | Color code / die: Green 37 | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 73
JSL 60 Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink 42 | Pack qty: 100 | Dimensions (mm): d1 10.2, D 13.2, L 73
JSL 70 Wire range: 2/0 AWG / 70 mm² | Color code / die: Black 45 | Pack qty: 50 | Dimensions (mm): d1 11.3, D 14.6, L 78
JSL 95 Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange 50 | Pack qty: 40 | Dimensions (mm): d1 13.5, D 17, L 78
JSL 100 Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange 50 | Pack qty: 40 | Dimensions (mm): d1 14, D 18, L 78
JSL 120 Wire range: 250Kcmil / 120 mm² | Color code / die: Purple 54 | Pack qty: 35 | Dimensions (mm): d1 15.2, D 19, L 86
JSL 150 Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): d1 17, D 21, L 105
JSL 185 Wire range: 350Kcmil / 185 mm² | Color code / die: Red 71 | Pack qty: 20 | Dimensions (mm): d1 19, D 23.5, L 111
JSL 200 Wire range: 400Kcmil / 200 mm² | Color code / die: Blue 76 | Pack qty: 20 | Dimensions (mm): d1 21, D 26, L 111
JSL 240 Wire range: 500Kcmil / 240 mm² | Color code / die: Brown 87 | Pack qty: 15 | Dimensions (mm): d1 22, D 27.4, L 117
JSL 300 Wire range: 600Kcmil / 300 mm² | Color code / die: Green 94 | Pack qty: 10 | Dimensions (mm): d1 24, D 30.5, L 140
JSL 400 Wire range: 800Kcmil / 400 mm² | Color code / die: Black 106 | Pack qty: 5 | Dimensions (mm): d1 26, D 34, L 149
JSL 500 Wire range: 1000Kcmil / 500 mm² | Color code / die: White 125 | Pack qty: 4 | Dimensions (mm): d1 31, D 40, L 155
JSL 630 Wire range: 1250Kcmil / 630 mm² | Color code / die: Pink 142 | Pack qty: 4 | Dimensions (mm): d1 34, D 45, L 165
JSL 800 Wire range: 1600Kcmil / 800 mm² | Color code / die: Orange 150 | Pack qty: 3 | Dimensions (mm): d1 39, D 50.6, L 196
