Jeoneo JSS Code Conductor Butt Splices, Standard Barrel

Jeoneo JSS Code Conductor Butt Splices, Standard Barrel

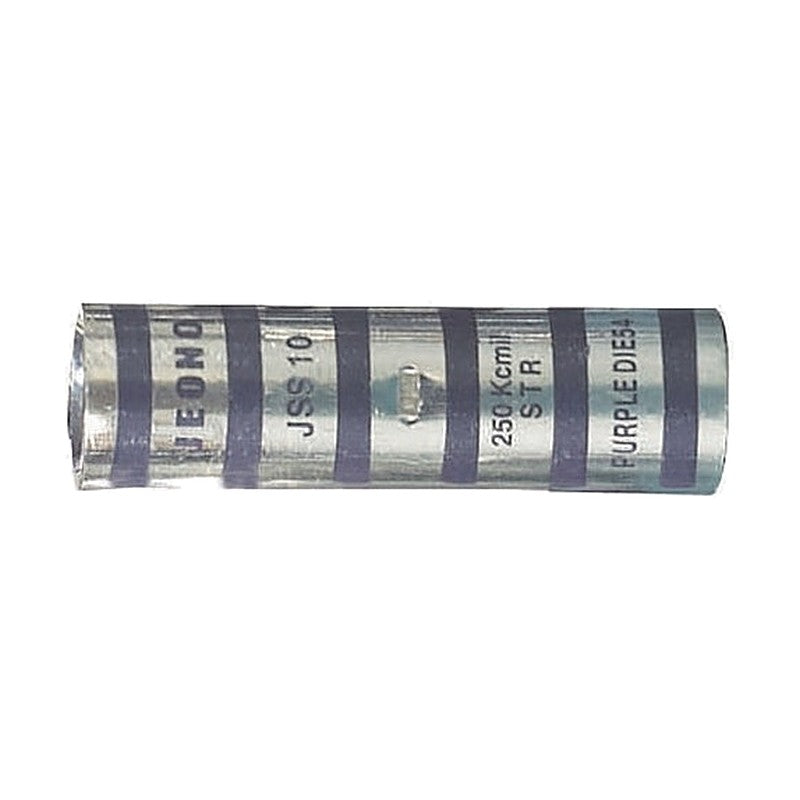

Standard-barrel copper butt splices (Type SS) with internal wire stop for 1.5 to 630 mm² code conductors.

Key features

  • Internal wire stop prevents over-insertion of cable
  • Color stripe or color code identifies wire range and die
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Jeoneo JSS Code Conductor Butt Splices, Standard Barrel
JSS 015 Wire range: 20~16 AWG / 1.5 mm² | Color code / die: Red | Pack qty: 1,000 | Dimensions (mm): d1 2.0, D 3.0, L 15
JSS 025 Wire range: 16~14 AWG / 2.5 mm² | Color code / die: Blue | Pack qty: 1,000 | Dimensions (mm): d1 2.5, D 3.5, L 15
JSS 4 Wire range: 14~12 AWG / 4 mm² | Color code / die: Brown | Pack qty: 1,000 | Dimensions (mm): d1 3.2, D 4.5, L 20
JSS 6 Wire range: 12~10 AWG / 6 mm² | Color code / die: Yellow | Pack qty: 1,000 | Dimensions (mm): d1 4.0, D 5.5, L 20
JSS 10 Wire range: 8 AWG / 10 mm² | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): d1 4.7, D 6.7, L 30
JSS 16 Wire range: 6 AWG / 16 mm² | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 35
JSS 25 Wire range: 4~3 AWG / 25 mm² | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): d1 6.7, D 9.0, L 40
JSS 35 Wire range: 2 AWG / 35 mm² | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): d1 8.1, D 10.6, L 45
JSS 50 Wire range: 1 AWG / 50 mm² | Color code / die: Green 37 | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 50
JSS 60 Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink 42 | Pack qty: 100 | Dimensions (mm): d1 10.2, D 13.2, L 50
JSS 70 Wire range: 2/0 AWG / 70 mm² | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): d1 11.3, D 14.6, L 51
JSS 95 Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): d1 13.5, D 17, L 54
JSS 100 Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): d1 14, D 18, L 54
JSS 120 Wire range: 250Kcmil / 120 mm² | Color code / die: Purple 54 | Pack qty: 70 | Dimensions (mm): d1 15.2, D 19, L 57
JSS 150 Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow 62 | Pack qty: 40 | Dimensions (mm): d1 17, D 21, L 57
JSS 185 Wire range: 350Kcmil / 185 mm² | Color code / die: Red 71 | Pack qty: 35 | Dimensions (mm): d1 19, D 23.5, L 60
JSS 200 Wire range: 400Kcmil / 200 mm² | Color code / die: Blue 76 | Pack qty: 30 | Dimensions (mm): d1 21, D 26, L 60
JSS 240 Wire range: 500Kcmil / 240 mm² | Color code / die: Brown 87 | Pack qty: 20 | Dimensions (mm): d1 22, D 27.4, L 73
JSS 300 Wire range: 600Kcmil / 300 mm² | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): d1 24, D 30.5, L 73
JSS 400 Wire range: 800Kcmil / 400 mm² | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): d1 26, D 34, L 86
JSS 500 Wire range: 1000Kcmil / 500 mm² | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): d1 31, D 40, L 98
JSS 630 Wire range: 1250Kcmil / 630 mm² | Color code / die: Pink 142 | Pack qty: 5 | Dimensions (mm): d1 34, D 45, L 108
Butt SplicesJeoneo
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JSS Code Conductor Butt Splices, Standard Barrel

Brand Jeoneo·Butt Splices

Available part numbers (22)

JSS 015, JSS 025, JSS 4, JSS 6, JSS 10, JSS 16, JSS 25, JSS 35, JSS 50, JSS 60 + 12 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JSS Code Conductor Butt Splices, Standard Barrel
0 selected
RFQ List (0)
Product codeSpec
JSS 015Wire range: 20~16 AWG / 1.5 mm² | Color code / die: Red | Pack qty: 1,000 | Dimensions (mm): d1 2.0, D 3.0, L 15
JSS 025Wire range: 16~14 AWG / 2.5 mm² | Color code / die: Blue | Pack qty: 1,000 | Dimensions (mm): d1 2.5, D 3.5, L 15
JSS 4Wire range: 14~12 AWG / 4 mm² | Color code / die: Brown | Pack qty: 1,000 | Dimensions (mm): d1 3.2, D 4.5, L 20
JSS 6Wire range: 12~10 AWG / 6 mm² | Color code / die: Yellow | Pack qty: 1,000 | Dimensions (mm): d1 4.0, D 5.5, L 20
JSS 10Wire range: 8 AWG / 10 mm² | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): d1 4.7, D 6.7, L 30
JSS 16Wire range: 6 AWG / 16 mm² | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): d1 5.4, D 7.4, L 35
JSS 25Wire range: 4~3 AWG / 25 mm² | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): d1 6.7, D 9.0, L 40
JSS 35Wire range: 2 AWG / 35 mm² | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): d1 8.1, D 10.6, L 45
JSS 50Wire range: 1 AWG / 50 mm² | Color code / die: Green 37 | Pack qty: 100 | Dimensions (mm): d1 9.5, D 12.0, L 50
JSS 60Wire range: 1/0 AWG / 60 mm² | Color code / die: Pink 42 | Pack qty: 100 | Dimensions (mm): d1 10.2, D 13.2, L 50
JSS 70Wire range: 2/0 AWG / 70 mm² | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): d1 11.3, D 14.6, L 51
JSS 95Wire range: 3/0 AWG / 95 mm² | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): d1 13.5, D 17, L 54
JSS 100Wire range: 4/0 AWG / 100 mm² | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): d1 14, D 18, L 54
JSS 120Wire range: 250Kcmil / 120 mm² | Color code / die: Purple 54 | Pack qty: 70 | Dimensions (mm): d1 15.2, D 19, L 57
JSS 150Wire range: 300Kcmil / 150 mm² | Color code / die: Yellow 62 | Pack qty: 40 | Dimensions (mm): d1 17, D 21, L 57
JSS 185Wire range: 350Kcmil / 185 mm² | Color code / die: Red 71 | Pack qty: 35 | Dimensions (mm): d1 19, D 23.5, L 60
JSS 200Wire range: 400Kcmil / 200 mm² | Color code / die: Blue 76 | Pack qty: 30 | Dimensions (mm): d1 21, D 26, L 60
JSS 240Wire range: 500Kcmil / 240 mm² | Color code / die: Brown 87 | Pack qty: 20 | Dimensions (mm): d1 22, D 27.4, L 73
JSS 300Wire range: 600Kcmil / 300 mm² | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): d1 24, D 30.5, L 73
JSS 400Wire range: 800Kcmil / 400 mm² | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): d1 26, D 34, L 86
JSS 500Wire range: 1000Kcmil / 500 mm² | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): d1 31, D 40, L 98
JSS 630Wire range: 1250Kcmil / 630 mm² | Color code / die: Pink 142 | Pack qty: 5 | Dimensions (mm): d1 34, D 45, L 108
