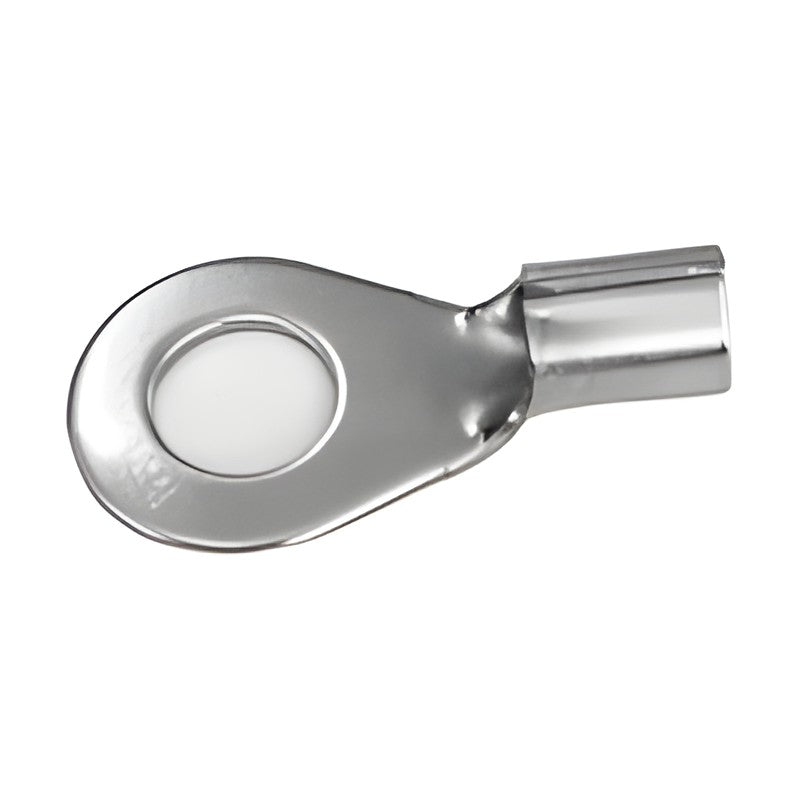

Jeoneo JSTL Stainless Steel Ring Terminals

Jeoneo JSTL Stainless Steel Ring Terminals

Non-insulated STS 304 stainless steel ring terminals without brazed seam for 1.5 to 16 mm² wire.

Key features

  • STS 304 stainless steel for corrosive environments
  • Without brazed seam

Specifications

Material STS 304 stainless steel
Surface Natural finish
Barrel Without brazed seam
Jeoneo JSTL Stainless Steel Ring Terminals
JSTL 1.5-4 Wire range: 20~16 AWG / 1.5 mm² | Stud size: 4 | Pack qty: 1,000 | Dimensions (mm): B 6.1, L 13.8, E 5.0, d 2.0, t 0.6
JSTL 1.5-54 Wire range: 20~16 AWG / 1.5 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 15.8, E 5.0, d 2.0, t 0.6
JSTL 2.5-4 Wire range: 16~14 AWG / 2.5 mm² | Stud size: 4 | Pack qty: 1,000 | Dimensions (mm): B 6.5, L 15.0, E 5.0, d 2.4, t 0.6
JSTL 2.5-54 Wire range: 16~14 AWG / 2.5 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 15.9, E 5.0, d 2.4, t 0.6
JSTL 4-54 Wire range: 14~12 AWG / 4 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 17.5, E 6.8, d 3.0, t 0.7
JSTL 6-54 Wire range: 12~10 AWG / 6 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 19.0, E 7.0, d 3.6, t 0.8
JSTL 6-6 Wire range: 12~10 AWG / 6 mm² | Stud size: 6 | Pack qty: 1,000 | Dimensions (mm): B 12.4, L 23.0, E 7.0, d 3.6, t 0.8
JSTL 10-6 Wire range: 8 AWG / 10 mm² | Stud size: 6 | Pack qty: 500 | Dimensions (mm): B 11.8, L 23.6, E 8.5, d 4.8, t 0.9
JSTL 16-8 Wire range: 6 AWG / 16 mm² | Stud size: 8 | Pack qty: 300 | Dimensions (mm): B 16.0, L 30.0, E 11.0, d 6.8, t 1.0
Ring TerminalsJeoneo
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JSTL Stainless Steel Ring Terminals

Brand Jeoneo·Ring Terminals

Available part numbers (9)

JSTL 1.5-4, JSTL 1.5-54, JSTL 2.5-4, JSTL 2.5-54, JSTL 4-54, JSTL 6-54, JSTL 6-6, JSTL 10-6, JSTL 16-8

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JSTL Stainless Steel Ring Terminals
0 selected
RFQ List (0)
Product codeSpec
JSTL 1.5-4Wire range: 20~16 AWG / 1.5 mm² | Stud size: 4 | Pack qty: 1,000 | Dimensions (mm): B 6.1, L 13.8, E 5.0, d 2.0, t 0.6
JSTL 1.5-54Wire range: 20~16 AWG / 1.5 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 15.8, E 5.0, d 2.0, t 0.6
JSTL 2.5-4Wire range: 16~14 AWG / 2.5 mm² | Stud size: 4 | Pack qty: 1,000 | Dimensions (mm): B 6.5, L 15.0, E 5.0, d 2.4, t 0.6
JSTL 2.5-54Wire range: 16~14 AWG / 2.5 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 15.9, E 5.0, d 2.4, t 0.6
JSTL 4-54Wire range: 14~12 AWG / 4 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 17.5, E 6.8, d 3.0, t 0.7
JSTL 6-54Wire range: 12~10 AWG / 6 mm² | Stud size: 5 | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 19.0, E 7.0, d 3.6, t 0.8
JSTL 6-6Wire range: 12~10 AWG / 6 mm² | Stud size: 6 | Pack qty: 1,000 | Dimensions (mm): B 12.4, L 23.0, E 7.0, d 3.6, t 0.8
JSTL 10-6Wire range: 8 AWG / 10 mm² | Stud size: 6 | Pack qty: 500 | Dimensions (mm): B 11.8, L 23.6, E 8.5, d 4.8, t 0.9
JSTL 16-8Wire range: 6 AWG / 16 mm² | Stud size: 8 | Pack qty: 300 | Dimensions (mm): B 16.0, L 30.0, E 11.0, d 6.8, t 1.0
