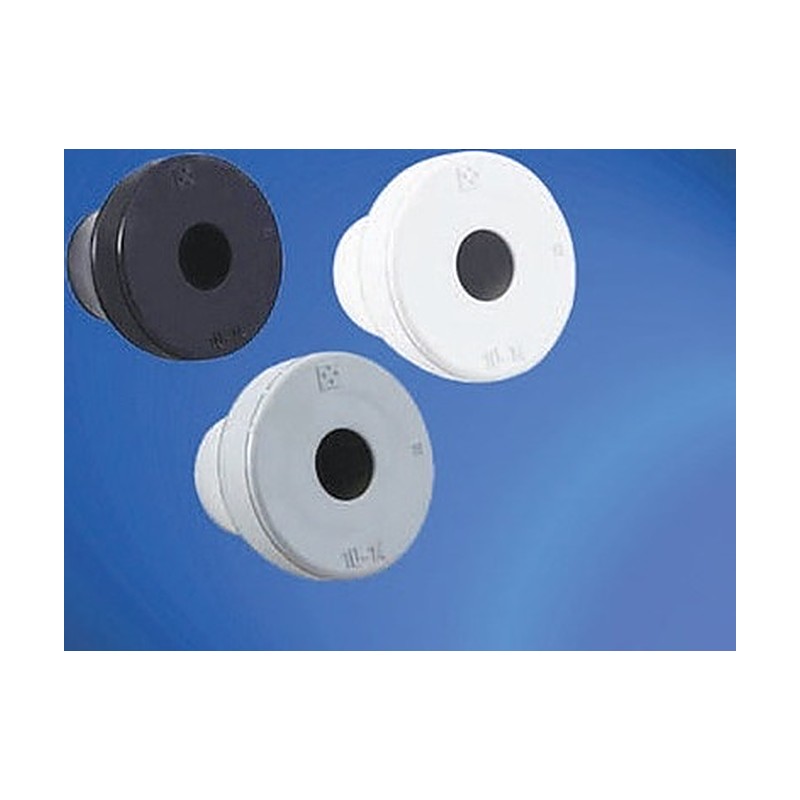

Jeoneo JTRS Rubber Gland Seals, Type TRS (PG and Metric)
Jeoneo JTRS Rubber Gland Seals, Type TRS (PG and Metric)
EPDM rubber gland seals (Type TRS) in PG and metric sizes for cables and pipes from 3 to 20 mm, IP67, halogen free.
Key features
- EPDM resistant to chemicals and weather
- For panel material thickness 0.5-4 mm
- Quick and simple assembly without tools
- IP67, temperature -40 to +110 °C, UL94 HB
Specifications
| Material | EPDM, halogen free |
|---|---|
| Protection | IP67 |
| Temperature range | -40 to 110 °C |
| Flammability | UL94 HB |
| JTRS-PG7/12.5 | Size: PG7/12.5 | Color: Black | Cable/pipe range (mm): 3-5 | Pack qty: 50 | Dimensions (mm): A 13, B 0.5-2, Da 20, H 12.6, H1 5.4 | |
| JTRS-PG9/15.2 | Size: PG9/15.2 | Color: Grey, Black | Cable/pipe range (mm): 5-7 | Pack qty: 50 | Dimensions (mm): A 16, B 1-4, Da 21, H 17.8, H1 10.3 | |
| JTRS-PG11/18.6 | Size: PG11/18.6 | Color: Grey, Black | Cable/pipe range (mm): 7-10 | Pack qty: 50 | Dimensions (mm): A 19, B 1-4, Da 24, H 19.8, H1 12.7 | |
| JTRS-PG16/22.5 | Size: PG16/22.5 | Color: Grey, Black | Cable/pipe range (mm): 10-14 | Pack qty: 50 | Dimensions (mm): A 23, B 1-4, Da 28, H 21.6, H1 14.7 | |
| JTRS-PG21/28.3 | Size: PG21/28.3PG29 | Color: Black,White,Gray | Cable/pipe range (mm): 14-20 | Pack qty: 25 | Dimensions (mm): A 29, B 1-4, Da 35, H 24.6, H1 17.6 | |
| JTRS-M12 | Size: M12 | Color: Grey, Black, White | Cable/pipe range (mm): 4-7 | Pack qty: 50 | Dimensions (mm): A 12.5, B 0.5-2, Da 20, H 12.8, H1 5.6 | |
| JTRS-M16 | Size: M16 | Color: Grey, Black, White | Cable/pipe range (mm): 5-9 | Pack qty: 50 | Dimensions (mm): A 16.5, B 1-4, Da 21, H 17.7, H1 11.0 | |
| JTRS-M20 | Size: M20 | Color: Grey, Black, White | Cable/pipe range (mm): 8-13 | Pack qty: 50 | Dimensions (mm): A 20.5, B 1-4, Da 25.5, H 20.0, H1 13.4 | |
| JTRS-M25 | Size: M25 | Color: Grey, Black, White | Cable/pipe range (mm): 11-17 | Pack qty: 50 | Dimensions (mm): A 25.5, B 1-4, Da 30.5, H 21.3, H1 15.3 | |
| JTRS-M32 | Size: M32 | Color: Grey, Black, White | Cable/pipe range (mm): 15-20 | Pack qty: 25 | Dimensions (mm): A 32.5, B 1-4, Da 38.5, H 24.6, H1 18.6 |
Cable GlandsJeoneo
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JTRS Rubber Gland Seals, Type TRS (PG and Metric)
Available part numbers (10)
JTRS-PG7/12.5, JTRS-PG9/15.2, JTRS-PG11/18.6, JTRS-PG16/22.5, JTRS-PG21/28.3, JTRS-M12, JTRS-M16, JTRS-M20, JTRS-M25, JTRS-M32
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Glands
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JTRS-PG7/12.5 | Size: PG7/12.5 | Color: Black | Cable/pipe range (mm): 3-5 | Pack qty: 50 | Dimensions (mm): A 13, B 0.5-2, Da 20, H 12.6, H1 5.4 | ||
| JTRS-PG9/15.2 | Size: PG9/15.2 | Color: Grey, Black | Cable/pipe range (mm): 5-7 | Pack qty: 50 | Dimensions (mm): A 16, B 1-4, Da 21, H 17.8, H1 10.3 | ||
| JTRS-PG11/18.6 | Size: PG11/18.6 | Color: Grey, Black | Cable/pipe range (mm): 7-10 | Pack qty: 50 | Dimensions (mm): A 19, B 1-4, Da 24, H 19.8, H1 12.7 | ||
| JTRS-PG16/22.5 | Size: PG16/22.5 | Color: Grey, Black | Cable/pipe range (mm): 10-14 | Pack qty: 50 | Dimensions (mm): A 23, B 1-4, Da 28, H 21.6, H1 14.7 | ||
| JTRS-PG21/28.3 | Size: PG21/28.3PG29 | Color: Black,White,Gray | Cable/pipe range (mm): 14-20 | Pack qty: 25 | Dimensions (mm): A 29, B 1-4, Da 35, H 24.6, H1 17.6 | ||
| JTRS-M12 | Size: M12 | Color: Grey, Black, White | Cable/pipe range (mm): 4-7 | Pack qty: 50 | Dimensions (mm): A 12.5, B 0.5-2, Da 20, H 12.8, H1 5.6 | ||
| JTRS-M16 | Size: M16 | Color: Grey, Black, White | Cable/pipe range (mm): 5-9 | Pack qty: 50 | Dimensions (mm): A 16.5, B 1-4, Da 21, H 17.7, H1 11.0 | ||
| JTRS-M20 | Size: M20 | Color: Grey, Black, White | Cable/pipe range (mm): 8-13 | Pack qty: 50 | Dimensions (mm): A 20.5, B 1-4, Da 25.5, H 20.0, H1 13.4 | ||
| JTRS-M25 | Size: M25 | Color: Grey, Black, White | Cable/pipe range (mm): 11-17 | Pack qty: 50 | Dimensions (mm): A 25.5, B 1-4, Da 30.5, H 21.3, H1 15.3 | ||
| JTRS-M32 | Size: M32 | Color: Grey, Black, White | Cable/pipe range (mm): 15-20 | Pack qty: 25 | Dimensions (mm): A 32.5, B 1-4, Da 38.5, H 24.6, H1 18.6 |
