• Jeoneo JV Flame-Retardant Nylon 6.6 Cable Ties (UL94 V-0)
1 1

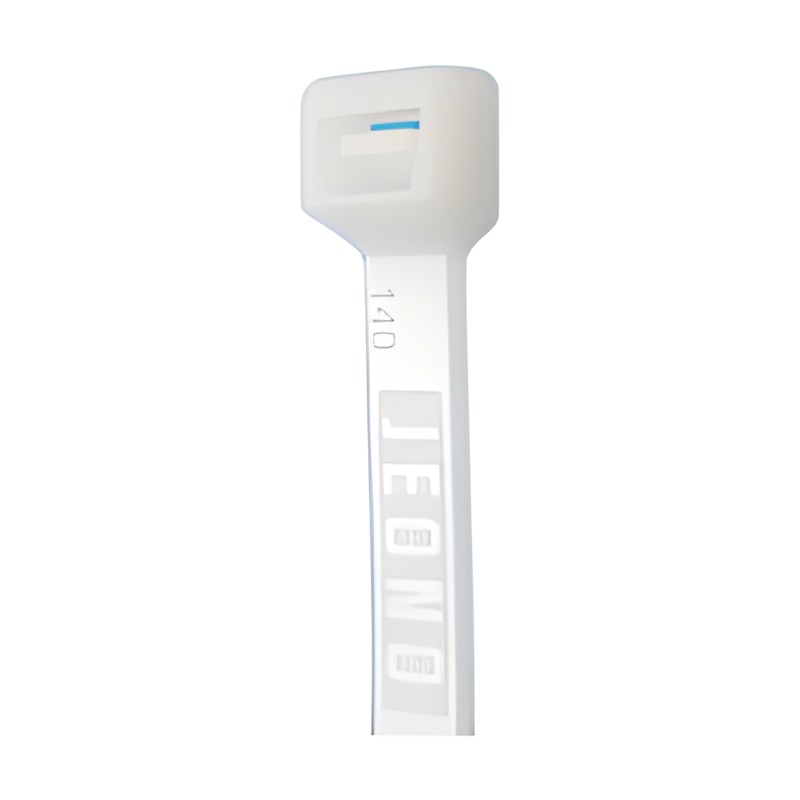

Jeoneo JV Flame-Retardant Nylon 6.6 Cable Ties (UL94 V-0)

Jeoneo JV Flame-Retardant Nylon 6.6 Cable Ties (UL94 V-0)

Flame-retardant halogen-free nylon 6.6 cable ties (Type JV) rated UL94 V-0, natural color, for indoor use.

Key features

  • Flammability UL94 V-0
  • Halogen free
  • Operating temperature 85 °C

Specifications

Material Nylon 6.6
Flammability UL94 V-0
Operating temperature 85 °C
Color Natural
Use Indoor
Jeoneo JV Flame-Retardant Nylon 6.6 Cable Ties (UL94 V-0)
JV-100 Series: Subminiature 2.5 | Length (mm): 103 | Width (mm): 2.5 | Thickness (mm): 0.9 | Max. bundle dia. (mm): 22 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-162 Series: Subminiature 2.5 | Length (mm): 162 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 40 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-202 Series: Subminiature 2.5 | Length (mm): 200 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-140 Series: Intermediate 3.6 | Length (mm): 148 | Width (mm): 3.6 | Thickness (mm): 1.1 | Max. bundle dia. (mm): 35 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-203 Series: Intermediate 3.6 | Length (mm): 200 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-303 Series: Intermediate 3.6 | Length (mm): 300 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 77 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-200 Series: Standard 4.8 | Length (mm): 201 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 48 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-250 Series: Standard 4.8 | Length (mm): 252 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 64 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
JV-300 Series: Standard 4.8 | Length (mm): 300 | Width (mm): 4.8 | Thickness (mm): 1.4 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
JV-373 Series: Standard 4.8 | Length (mm): 368 | Width (mm): 4.8 | Thickness (mm): 1.5 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
JV-307 Series: Duty heavy 7.6 | Length (mm): 300 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
JV-370 Series: Duty heavy 7.6 | Length (mm): 370 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
JV-450 Series: Heavy 9.0 | Length (mm): 450 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 127 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-530 Series: Heavy 9.0 | Length (mm): 530 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 152 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-780 Series: Heavy 9.0 | Length (mm): 780 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 229 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-1000 Series: Heavy 9.0 | Length (mm): 1000 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 305 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-300EH Series: Extra heavy 12.7 | Length (mm): 300 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 70 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
JV-400EH Series: Extra heavy 12.7 | Length (mm): 400 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
JV-540EH Series: Extra heavy 12.7 | Length (mm): 540 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 150 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
Cable TiesJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JV Flame-Retardant Nylon 6.6 Cable Ties (UL94 V-0)

Brand Jeoneo·Cable Ties

Available part numbers (19)

JV-100, JV-162, JV-202, JV-140, JV-203, JV-303, JV-200, JV-250, JV-300, JV-373 + 9 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JV Flame-Retardant Nylon 6.6 Cable Ties (UL94 V-0)
0 selected
RFQ List (0)
Product codeSpec
JV-100Series: Subminiature 2.5 | Length (mm): 103 | Width (mm): 2.5 | Thickness (mm): 0.9 | Max. bundle dia. (mm): 22 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-162Series: Subminiature 2.5 | Length (mm): 162 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 40 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-202Series: Subminiature 2.5 | Length (mm): 200 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-140Series: Intermediate 3.6 | Length (mm): 148 | Width (mm): 3.6 | Thickness (mm): 1.1 | Max. bundle dia. (mm): 35 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-203Series: Intermediate 3.6 | Length (mm): 200 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-303Series: Intermediate 3.6 | Length (mm): 300 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 77 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-200Series: Standard 4.8 | Length (mm): 201 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 48 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
JV-250Series: Standard 4.8 | Length (mm): 252 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 64 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
JV-300Series: Standard 4.8 | Length (mm): 300 | Width (mm): 4.8 | Thickness (mm): 1.4 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
JV-373Series: Standard 4.8 | Length (mm): 368 | Width (mm): 4.8 | Thickness (mm): 1.5 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
JV-307Series: Duty heavy 7.6 | Length (mm): 300 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
JV-370Series: Duty heavy 7.6 | Length (mm): 370 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
JV-450Series: Heavy 9.0 | Length (mm): 450 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 127 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-530Series: Heavy 9.0 | Length (mm): 530 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 152 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-780Series: Heavy 9.0 | Length (mm): 780 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 229 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-1000Series: Heavy 9.0 | Length (mm): 1000 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 305 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
JV-300EHSeries: Extra heavy 12.7 | Length (mm): 300 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 70 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
JV-400EHSeries: Extra heavy 12.7 | Length (mm): 400 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
JV-540EHSeries: Extra heavy 12.7 | Length (mm): 540 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 150 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
