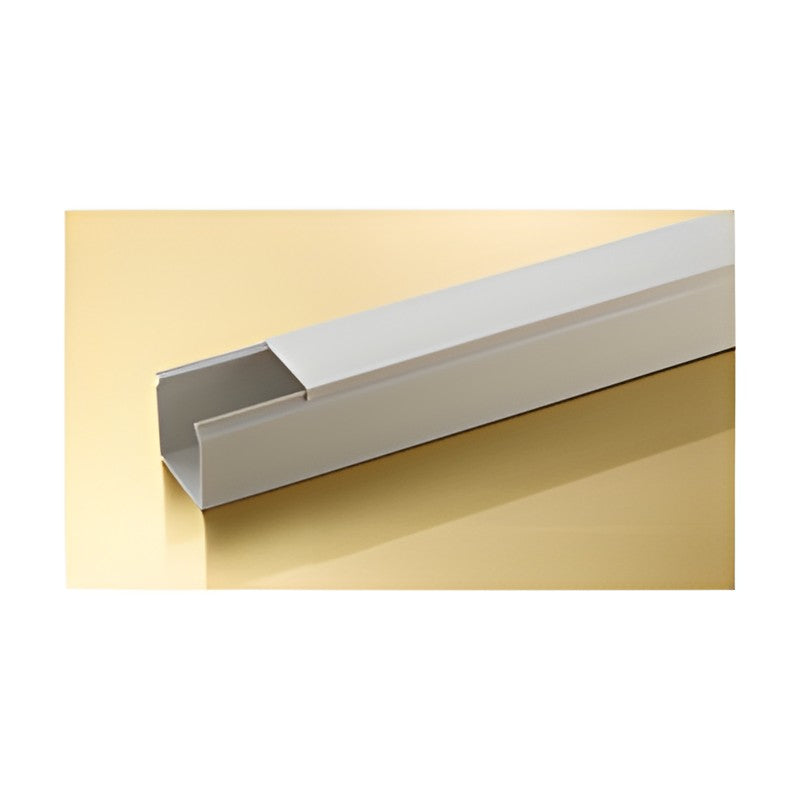

Jeoneo JWDC Solid (Closed) Wiring Ducts

Jeoneo JWDC Solid (Closed) Wiring Ducts

Solid-wall wiring ducts without slots, with cover, widths 20 to 100 mm.

Key features

  • Available in PVC (gray/ivory, 50 °C, UL94 V-0), ABS (ivory, 85 °C, UL94 V-0) and halogen-free ABS (ivory, 60 °C, UL94 V-2)
  • Standard length 2000 mm

Specifications

Length 2000 mm
Jeoneo JWDC Solid (Closed) Wiring Ducts
JWDC 20×35 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 20, H 35, Length 2000
JWDC 25×40 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 25, H 40, Length 2000
JWDC 25×60 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 25, H 60, Length 2000
JWDC 30×40 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 30, H 40, Length 2000
JWDC 30×60 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 30, H 60, Length 2000
JWDC 30×80 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 30, H 80, Length 2000
JWDC 40×40 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 40, H 40, Length 2000
JWDC 40×60 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 40, H 60, Length 2000
JWDC 40×80 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 40, H 80, Length 2000
JWDC 40×100 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 40, H 100, Length 2000
JWDC 60×40 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 60, H 40, Length 2000
JWDC 60×60 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 60, H 60, Length 2000
JWDC 60×80 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 60, H 80, Length 2000
JWDC 60×100 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 60, H 100, Length 2000
JWDC 80×60 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 80, H 60, Length 2000
JWDC 80×80 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 80, H 80, Length 2000
JWDC 80×100 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 80, H 100, Length 2000
JWDC 100×80 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 100, H 80, Length 2000
JWDC 100×100 Material: PVC (gray, ivory; 50 °C; UL94 V-0) | Dimensions (mm): W 100, H 100, Length 2000
JWDHC 20X35A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 20, H 35, Length 2000
JWDHC 25X40A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 25, H 40, Length 2000
JWDHC 25X60A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 25, H 60, Length 2000
JWDHC 30X40A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 30, H 40, Length 2000
JWDHC 30X60A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 30, H 60, Length 2000
JWDHC 30X80A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 30, H 80, Length 2000
JWDHC 40X40A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 40, H 40, Length 2000
JWDHC 40X60A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 40, H 60, Length 2000
JWDHC 40X80A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 40, H 80, Length 2000
JWDHC 40X100A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 40, H 100, Length 2000
JWDHC 60X40A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 60, H 40, Length 2000
JWDHC 60X60A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 60, H 60, Length 2000
JWDHC 60×80A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 60, H 80, Length 2000
JWDHC 60×100A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 60, H 100, Length 2000
JWDHC 80×60A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 80, H 60, Length 2000
JWDHC 80×80A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 80, H 80, Length 2000
JWDHC 80×100A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 80, H 100, Length 2000
JWDHC 100×80A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 100, H 80, Length 2000
JWDHC 100×100A Material: ABS (ivory; 85 °C; UL94 V-0) | Dimensions (mm): W 100, H 100, Length 2000
JWDHC 20X35 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 20, H 35, Length 2000
JWDHC 25X40 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 25, H 40, Length 2000
JWDHC 25X60 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 25, H 60, Length 2000
JWDHC 30X40 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 30, H 40, Length 2000
JWDHC 30X60 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 30, H 60, Length 2000
JWDHC 30X80 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 30, H 80, Length 2000
JWDHC 40X40 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 40, H 40, Length 2000
JWDHC 40X60 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 40, H 60, Length 2000
JWDHC 40X80 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 40, H 80, Length 2000
JWDHC 40X100 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 40, H 100, Length 2000
JWDHC 60X40 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 60, H 40, Length 2000
JWDHC 60X60 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 60, H 60, Length 2000
JWDHC 60×80 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 60, H 80, Length 2000
JWDHC 60×100 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 60, H 100, Length 2000
JWDHC 80×60 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 80, H 60, Length 2000
JWDHC 80×80 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 80, H 80, Length 2000
JWDHC 80×100 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 80, H 100, Length 2000
JWDHC 100×80 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 100, H 80, Length 2000
JWDHC 100×100 Material: ABS halogen-free (ivory; 60 °C; UL94 V-2) | Dimensions (mm): W 100, H 100, Length 2000
Wiring DuctsJeoneo
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JWDC Solid (Closed) Wiring Ducts

Brand Jeoneo·Wiring Ducts

Available part numbers (57)

JWDC 20×35, JWDC 25×40, JWDC 25×60, JWDC 30×40, JWDC 30×60, JWDC 30×80, JWDC 40×40, JWDC 40×60, JWDC 40×80, JWDC 40×100 + 47 more — see full table ↓
