• Jeoneo JWHS Heavy-Wall Adhesive-Lined Heat-Shrinkable Tubing
1 1

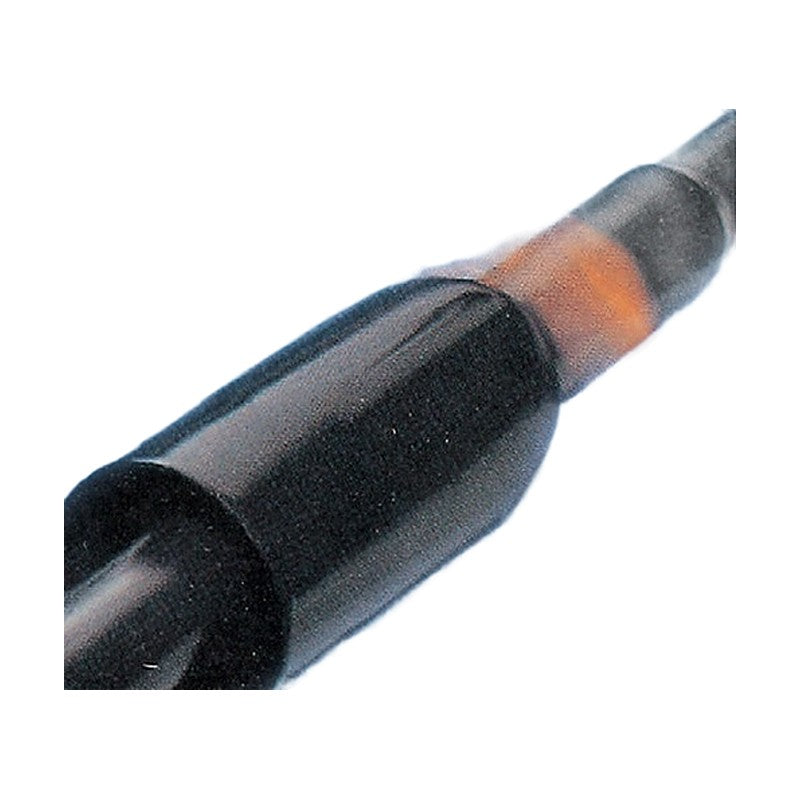

Jeoneo JWHS Heavy-Wall Adhesive-Lined Heat-Shrinkable Tubing

Jeoneo JWHS Heavy-Wall Adhesive-Lined Heat-Shrinkable Tubing

Heavy-wall black cross-linked polyolefin heat-shrink tubing with adhesive lining, rated 600 V and 90 °C, for sealed cable joints from 2 to 170 mm.

Key features

  • Adhesive-lined black cross-linked polyolefin
  • Rated 600 V, 90 °C continuous
  • High impact, abrasion, corrosion and chemical resistance
  • Shrink temperature 120 °C

Specifications

Material Adhesive-lined cross-linked polyolefin
Color Black
Rating 600 V, 90 °C
Shrink temperature 120 °C
Length (mm) 1200
Jeoneo JWHS Heavy-Wall Adhesive-Lined Heat-Shrinkable Tubing
JWHS-0602 Size (expanded/recovered): 6/2 | Application range (mm): 2.0~6.0 | Expanded D max (mm): 6 | Recovered d min (mm): 2 | Recovered wall min (mm): 1.2
JWHS-0903 Size (expanded/recovered): 9/3 | Application range (mm): 3.5~8.0 | Expanded D max (mm): 9 | Recovered d min (mm): 3 | Recovered wall min (mm): 1.7
JWHS-1204 Size (expanded/recovered): 12/4 | Application range (mm): 4.5~10.0 | Expanded D max (mm): 12 | Recovered d min (mm): 4 | Recovered wall min (mm): 2.0
JWHS-1505 Size (expanded/recovered): 15/5 | Application range (mm): 5.0~15.0 | Expanded D max (mm): 15 | Recovered d min (mm): 5 | Recovered wall min (mm): 2.0
JWHS-2006 Size (expanded/recovered): 20/6 | Application range (mm): 6.5~16.5 | Expanded D max (mm): 20 | Recovered d min (mm): 6 | Recovered wall min (mm): 2.5
JWHS-2408 Size (expanded/recovered): 24/8 | Application range (mm): 8.5~20.0 | Expanded D max (mm): 24 | Recovered d min (mm): 8 | Recovered wall min (mm): 2.5
JWHS-2809 Size (expanded/recovered): 28/9 | Application range (mm): 9.5~22.0 | Expanded D max (mm): 28 | Recovered d min (mm): 9 | Recovered wall min (mm): 2.5
JWHS-3311 Size (expanded/recovered): 33/11 | Application range (mm): 10.0~25.0 | Expanded D max (mm): 33 | Recovered d min (mm): 11 | Recovered wall min (mm): 2.5
JWHS-3812 Size (expanded/recovered): 38/12 | Application range (mm): 14.0~30.0 | Expanded D max (mm): 38 | Recovered d min (mm): 12 | Recovered wall min (mm): 2.5
JWHS-4315 Size (expanded/recovered): 43/15 | Application range (mm): 15.0~43.0 | Expanded D max (mm): 43 | Recovered d min (mm): 15 | Recovered wall min (mm): 2.8
JWHS-5518 Size (expanded/recovered): 55/18 | Application range (mm): 20.0~48.0 | Expanded D max (mm): 55 | Recovered d min (mm): 18 | Recovered wall min (mm): 2.8
JWHS-6520 Size (expanded/recovered): 65/20 | Application range (mm): 20.0~60.0 | Expanded D max (mm): 65 | Recovered d min (mm): 20 | Recovered wall min (mm): 3.0
JWHS-7525 Size (expanded/recovered): 75/25 | Application range (mm): 25.0~66.5 | Expanded D max (mm): 75 | Recovered d min (mm): 25 | Recovered wall min (mm): 3.0
JWHS-8026 Size (expanded/recovered): 80/26 | Application range (mm): 30.0~75.0 | Expanded D max (mm): 80 | Recovered d min (mm): 26 | Recovered wall min (mm): 3.0
JWHS-9030 Size (expanded/recovered): 90/30 | Application range (mm): 35.0~85.0 | Expanded D max (mm): 90 | Recovered d min (mm): 30 | Recovered wall min (mm): 3.5
JWHS-12040 Size (expanded/recovered): 120/40 | Application range (mm): 45.0~110.0 | Expanded D max (mm): 120 | Recovered d min (mm): 40 | Recovered wall min (mm): 3.5
JWHS-14045 Size (expanded/recovered): 140/45 | Application range (mm): 50.0~130.0 | Expanded D max (mm): 140 | Recovered d min (mm): 45 | Recovered wall min (mm): 3.5
JWHS-16054 Size (expanded/recovered): 160/54 | Application range (mm): 60.0~150.0 | Expanded D max (mm): 160 | Recovered d min (mm): 54 | Recovered wall min (mm): 3.5
JWHS-18060 Size (expanded/recovered): 180/60 | Application range (mm): 65.0~170.0 | Expanded D max (mm): 180 | Recovered d min (mm): 60 | Recovered wall min (mm): 3.5
Heat Shrink TubingJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JWHS Heavy-Wall Adhesive-Lined Heat-Shrinkable Tubing

Brand Jeoneo·Heat Shrink Tubing

Available part numbers (19)

JWHS-0602, JWHS-0903, JWHS-1204, JWHS-1505, JWHS-2006, JWHS-2408, JWHS-2809, JWHS-3311, JWHS-3812, JWHS-4315 + 9 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JWHS Heavy-Wall Adhesive-Lined Heat-Shrinkable Tubing
0 selected
RFQ List (0)
Product codeSpec
JWHS-0602Size (expanded/recovered): 6/2 | Application range (mm): 2.0~6.0 | Expanded D max (mm): 6 | Recovered d min (mm): 2 | Recovered wall min (mm): 1.2
JWHS-0903Size (expanded/recovered): 9/3 | Application range (mm): 3.5~8.0 | Expanded D max (mm): 9 | Recovered d min (mm): 3 | Recovered wall min (mm): 1.7
JWHS-1204Size (expanded/recovered): 12/4 | Application range (mm): 4.5~10.0 | Expanded D max (mm): 12 | Recovered d min (mm): 4 | Recovered wall min (mm): 2.0
JWHS-1505Size (expanded/recovered): 15/5 | Application range (mm): 5.0~15.0 | Expanded D max (mm): 15 | Recovered d min (mm): 5 | Recovered wall min (mm): 2.0
JWHS-2006Size (expanded/recovered): 20/6 | Application range (mm): 6.5~16.5 | Expanded D max (mm): 20 | Recovered d min (mm): 6 | Recovered wall min (mm): 2.5
JWHS-2408Size (expanded/recovered): 24/8 | Application range (mm): 8.5~20.0 | Expanded D max (mm): 24 | Recovered d min (mm): 8 | Recovered wall min (mm): 2.5
JWHS-2809Size (expanded/recovered): 28/9 | Application range (mm): 9.5~22.0 | Expanded D max (mm): 28 | Recovered d min (mm): 9 | Recovered wall min (mm): 2.5
JWHS-3311Size (expanded/recovered): 33/11 | Application range (mm): 10.0~25.0 | Expanded D max (mm): 33 | Recovered d min (mm): 11 | Recovered wall min (mm): 2.5
JWHS-3812Size (expanded/recovered): 38/12 | Application range (mm): 14.0~30.0 | Expanded D max (mm): 38 | Recovered d min (mm): 12 | Recovered wall min (mm): 2.5
JWHS-4315Size (expanded/recovered): 43/15 | Application range (mm): 15.0~43.0 | Expanded D max (mm): 43 | Recovered d min (mm): 15 | Recovered wall min (mm): 2.8
JWHS-5518Size (expanded/recovered): 55/18 | Application range (mm): 20.0~48.0 | Expanded D max (mm): 55 | Recovered d min (mm): 18 | Recovered wall min (mm): 2.8
JWHS-6520Size (expanded/recovered): 65/20 | Application range (mm): 20.0~60.0 | Expanded D max (mm): 65 | Recovered d min (mm): 20 | Recovered wall min (mm): 3.0
JWHS-7525Size (expanded/recovered): 75/25 | Application range (mm): 25.0~66.5 | Expanded D max (mm): 75 | Recovered d min (mm): 25 | Recovered wall min (mm): 3.0
JWHS-8026Size (expanded/recovered): 80/26 | Application range (mm): 30.0~75.0 | Expanded D max (mm): 80 | Recovered d min (mm): 26 | Recovered wall min (mm): 3.0
JWHS-9030Size (expanded/recovered): 90/30 | Application range (mm): 35.0~85.0 | Expanded D max (mm): 90 | Recovered d min (mm): 30 | Recovered wall min (mm): 3.5
JWHS-12040Size (expanded/recovered): 120/40 | Application range (mm): 45.0~110.0 | Expanded D max (mm): 120 | Recovered d min (mm): 40 | Recovered wall min (mm): 3.5
JWHS-14045Size (expanded/recovered): 140/45 | Application range (mm): 50.0~130.0 | Expanded D max (mm): 140 | Recovered d min (mm): 45 | Recovered wall min (mm): 3.5
JWHS-16054Size (expanded/recovered): 160/54 | Application range (mm): 60.0~150.0 | Expanded D max (mm): 160 | Recovered d min (mm): 54 | Recovered wall min (mm): 3.5
JWHS-18060Size (expanded/recovered): 180/60 | Application range (mm): 65.0~170.0 | Expanded D max (mm): 180 | Recovered d min (mm): 60 | Recovered wall min (mm): 3.5
