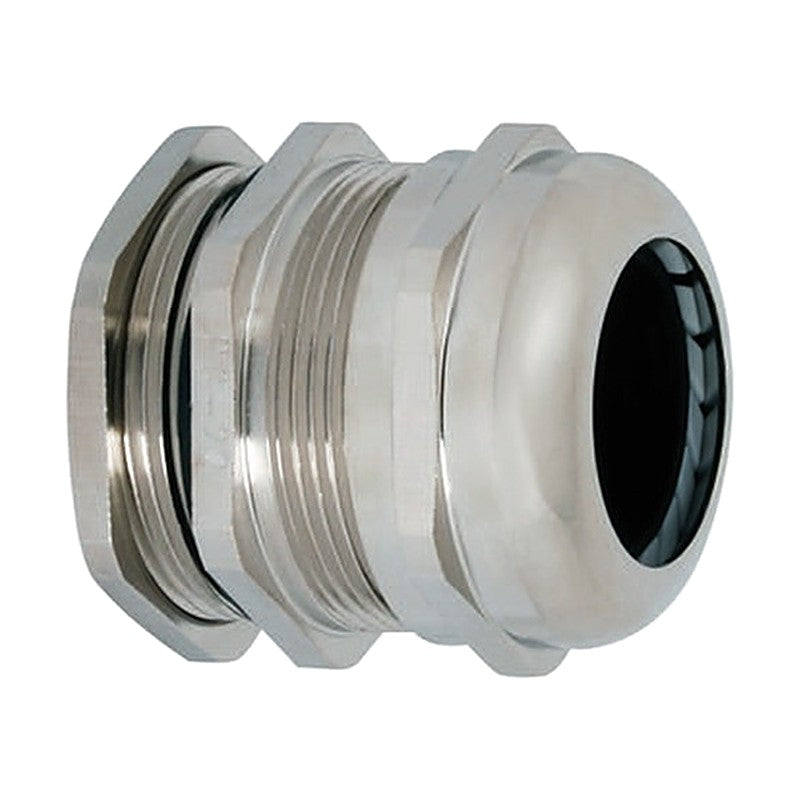

Jeoneo M-B Metallic Cable Glands, Metric Thread

Jeoneo M-B Metallic Cable Glands, Metric Thread

Nickel-plated brass cable glands with metric thread, NBR seals and nylon claw, IP68, for cables from 4 to 44 mm.

Key features

  • IP68 protection
  • Made to order on customer request

Specifications

Material Nickel-plated brass body/nuts, NBR seal, nylon 66 claw
Working temperature -40 to 100 °C static (120 °C short term)
Protection IP68
M-12B Thread size: M12 | Cable range (mm): 4~7 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 12 | Spanner size (mm): 14 | Installation torque (N·m): sealing nut 3.5, lock nut 4.0 | Pack qty: 100
M-16B Thread size: M16 | Cable range (mm): 5~8 | Thread length L1 (mm): 8.2 | Thread O.D. L2 (mm): 16 | Spanner size (mm): 18 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
M-20B Thread size: M20 | Cable range (mm): 6~12 | Thread length L1 (mm): 8.6 | Thread O.D. L2 (mm): 20 | Spanner size (mm): 22 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
M-25B Thread size: M25 | Cable range (mm): 13~18 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 25 | Spanner size (mm): 30 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 100
M-32B Thread size: M32 | Cable range (mm): 18~25 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 32 | Spanner size (mm): 40 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 50
M-40B Thread size: M40 | Cable range (mm): 22~32 | Thread length L1 (mm): 12 | Thread O.D. L2 (mm): 40 | Spanner size (mm): 50 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 20
M-50B Thread size: M50 | Cable range (mm): 30~38 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 50 | Spanner size (mm): 58 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 20
M-63B Thread size: M63 | Cable range (mm): 34~44 | Thread length L1 (mm): 17 | Thread O.D. L2 (mm): 63 | Spanner size (mm): 68 | Installation torque (N·m): sealing nut 12.5, lock nut 7.0 | Pack qty: 20
Cable GlandsJeoneo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo M-B Metallic Cable Glands, Metric Thread

Brand Jeoneo·Cable Glands

Available part numbers (8)

M-12B, M-16B, M-20B, M-25B, M-32B, M-40B, M-50B, M-63B

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M-12BThread size: M12 | Cable range (mm): 4~7 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 12 | Spanner size (mm): 14 | Installation torque (N·m): sealing nut 3.5, lock nut 4.0 | Pack qty: 100
M-16BThread size: M16 | Cable range (mm): 5~8 | Thread length L1 (mm): 8.2 | Thread O.D. L2 (mm): 16 | Spanner size (mm): 18 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
M-20BThread size: M20 | Cable range (mm): 6~12 | Thread length L1 (mm): 8.6 | Thread O.D. L2 (mm): 20 | Spanner size (mm): 22 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
M-25BThread size: M25 | Cable range (mm): 13~18 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 25 | Spanner size (mm): 30 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 100
M-32BThread size: M32 | Cable range (mm): 18~25 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 32 | Spanner size (mm): 40 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 50
M-40BThread size: M40 | Cable range (mm): 22~32 | Thread length L1 (mm): 12 | Thread O.D. L2 (mm): 40 | Spanner size (mm): 50 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 20
M-50BThread size: M50 | Cable range (mm): 30~38 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 50 | Spanner size (mm): 58 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 20
M-63BThread size: M63 | Cable range (mm): 34~44 | Thread length L1 (mm): 17 | Thread O.D. L2 (mm): 63 | Spanner size (mm): 68 | Installation torque (N·m): sealing nut 12.5, lock nut 7.0 | Pack qty: 20
