Jeoneo NPT-B Metallic Cable Glands

Jeoneo NPT-B Metallic Cable Glands

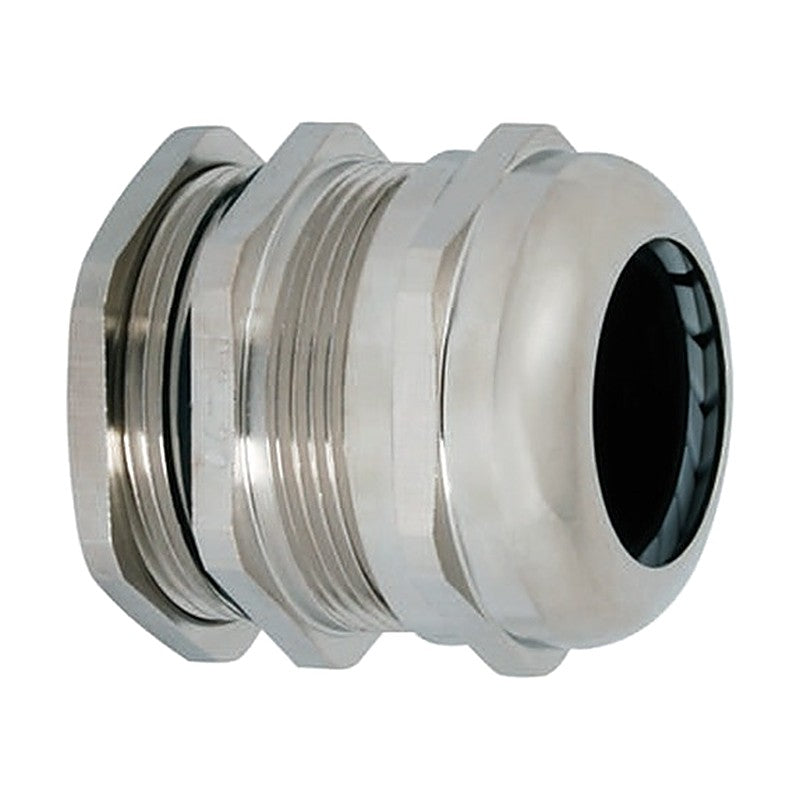

Nickel-plated brass cable glands with NPT thread and NBR seals, IP68, for cables from 4 to 32 mm.

Key features

  • IP68 protection
  • Made to order on customer request

Specifications

Material Nickel-plated brass body/nuts, NBR seal, nylon 66 claw
Working temperature -40 to 100 °C static (120 °C short term)
Protection IP68
NPT-1/4B Thread size: NPT 1/4 | Cable range (mm): 4~7 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 13.7 | Spanner size (mm): 15 | Pack qty: 100
NPT-3/8B Thread size: NPT 3/8 | Cable range (mm): 5~8 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 17.1 | Spanner size (mm): 20 | Pack qty: 100
NPT-1/2B Thread size: NPT 1/2 | Cable range (mm): 6~10 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 21.3 | Spanner size (mm): 24 | Pack qty: 100
NPT-3/4B Thread size: NPT 3/4 | Cable range (mm): 13~18 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 26.6 | Spanner size (mm): 32 | Pack qty: 100
NPT-1B Thread size: NPT 1 | Cable range (mm): 14~24 | Thread length L1 (mm): 17 | Thread O.D. L2 (mm): 33.5 | Spanner size (mm): 37 | Pack qty: 50
NPT-1 1/4B Thread size: NPT 1-1/4 | Cable range (mm): 25~32 | Thread length L1 (mm): 18 | Thread O.D. L2 (mm): 42 | Spanner size (mm): 47 | Pack qty: 20
NPT-1 1/2B Thread size: NPT 1 1/2 | Cable range (mm): 14~24 | Thread length L1 (mm): 20 | Thread O.D. L2 (mm): 48 | Spanner size (mm): 52 | Pack qty: 20
Cable GlandsJeoneo
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo NPT-B Metallic Cable Glands

Brand Jeoneo·Cable Glands

Available part numbers (7)

NPT-1/4B, NPT-3/8B, NPT-1/2B, NPT-3/4B, NPT-1B, NPT-1 1/4B, NPT-1 1/2B

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NPT-1/4BThread size: NPT 1/4 | Cable range (mm): 4~7 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 13.7 | Spanner size (mm): 15 | Pack qty: 100
NPT-3/8BThread size: NPT 3/8 | Cable range (mm): 5~8 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 17.1 | Spanner size (mm): 20 | Pack qty: 100
NPT-1/2BThread size: NPT 1/2 | Cable range (mm): 6~10 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 21.3 | Spanner size (mm): 24 | Pack qty: 100
NPT-3/4BThread size: NPT 3/4 | Cable range (mm): 13~18 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 26.6 | Spanner size (mm): 32 | Pack qty: 100
NPT-1BThread size: NPT 1 | Cable range (mm): 14~24 | Thread length L1 (mm): 17 | Thread O.D. L2 (mm): 33.5 | Spanner size (mm): 37 | Pack qty: 50
NPT-1 1/4BThread size: NPT 1-1/4 | Cable range (mm): 25~32 | Thread length L1 (mm): 18 | Thread O.D. L2 (mm): 42 | Spanner size (mm): 47 | Pack qty: 20
NPT-1 1/2BThread size: NPT 1 1/2 | Cable range (mm): 14~24 | Thread length L1 (mm): 20 | Thread O.D. L2 (mm): 48 | Spanner size (mm): 52 | Pack qty: 20
