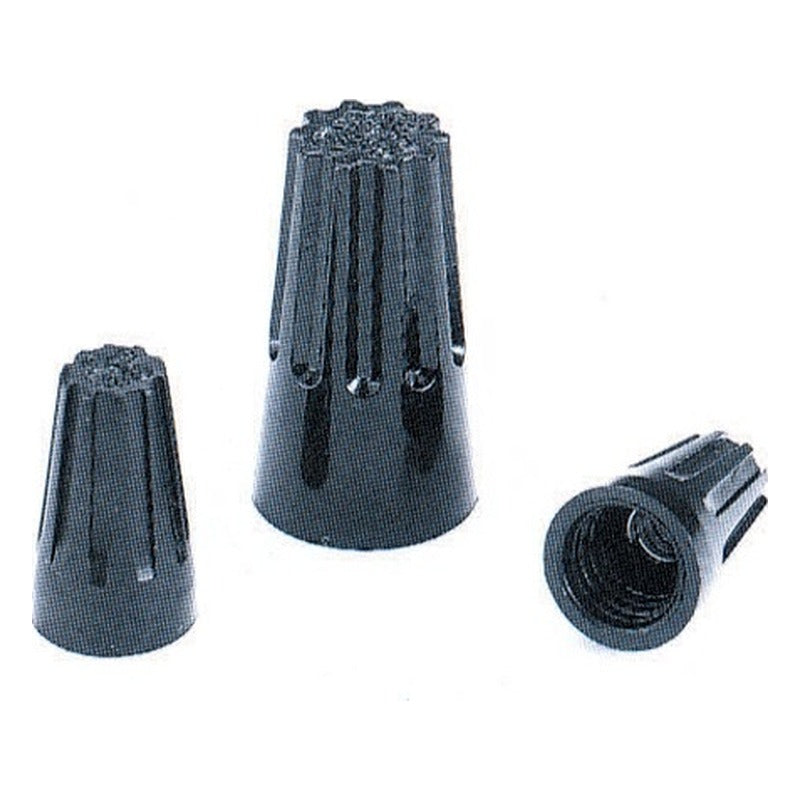

Jeoneo P High-Temperature Wire Connectors P1B/P3B (150 °C)

Jeoneo P High-Temperature Wire Connectors P1B/P3B (150 °C)

Screw-on wire connectors with thermoplastic shell rated to 150 °C for high-temperature applications, UL 486C listed and CSA certified.

Key features

  • Shell designed to withstand extreme temperatures (150 °C)
  • Available in two standard models
  • Socket tools available

Specifications

Color Black
Jeoneo P High-Temperature Wire Connectors P1B/P3B (150 °C)
P1B Rating: 300 V max., 150 °C (302 °F) | Wire range: No. 22-No. 14 AWG; max. 2 #18, min. 1 #18 w/1 #22 | Pack qty: 1,000 per bag, 20,000 per carton | Dimensions (mm): A 3.80, B 6.70, C 8.60, D 5.80, E 14.80
P3B Rating: 600 V max., 150 °C (302 °F) | Wire range: No. 22-No. 14 AWG; max. 1 #14 w/1 #16 w/1 #18, min. 1 #16 w/1 #22 | Pack qty: 500 per bag, 5,000 per carton | Dimensions (mm): A 5.0, B 9.90, C 12.20, D 7.80, E 22.0
Wire ConnectorsJeoneo
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo P High-Temperature Wire Connectors P1B/P3B (150 °C)

Brand Jeoneo·Wire Connectors

Available part numbers (2)

P1B, P3B

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo P High-Temperature Wire Connectors P1B/P3B (150 °C)
0 selected
RFQ List (0)
Product codeSpec
P1BRating: 300 V max., 150 °C (302 °F) | Wire range: No. 22-No. 14 AWG; max. 2 #18, min. 1 #18 w/1 #22 | Pack qty: 1,000 per bag, 20,000 per carton | Dimensions (mm): A 3.80, B 6.70, C 8.60, D 5.80, E 14.80
P3BRating: 600 V max., 150 °C (302 °F) | Wire range: No. 22-No. 14 AWG; max. 1 #14 w/1 #16 w/1 #18, min. 1 #16 w/1 #22 | Pack qty: 500 per bag, 5,000 per carton | Dimensions (mm): A 5.0, B 9.90, C 12.20, D 7.80, E 22.0
