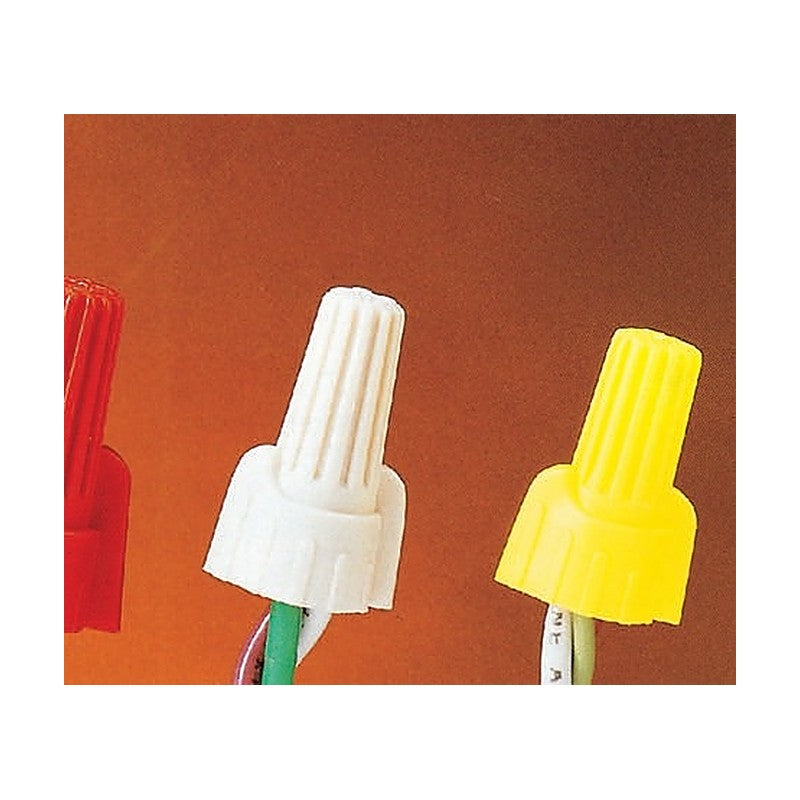

Jeoneo P Winged Wire Connectors (P11-P17)

Jeoneo P Winged Wire Connectors (P11-P17)

Winged thermoplastic screw-on wire connectors with swept-back wings for easier twisting, UL 486C listed and CSA certified.

Key features

  • UL 486C listed and CSA 22.2 No. 188 certified
  • Tough UL94 V-2 flame-retardant thermoplastic shell
  • Five colors to industry standard
  • Socket tools available for installation

Specifications

Shell Thermoplastic, UL94 V-2
Jeoneo P Winged Wire Connectors (P11-P17)
P11 Dimensions (mm): A 6.40, B 9.80, C 18.20, D 9.00, E 25.80 | Color: Yellow | Wire range: 600V Max No.18-No.10 AWG., Temp. 105℃(221℉) Max.3 #12, Min.2 #18 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P12 Dimensions (mm): A 7.20, B 11.60, C 18.30, D 9.20, E 29.00 | Color: Tan | Wire range: 600V Max No.22-No.8 AWG., Temp. 105℃(221℉) Max.4 #12, Min.3 #22 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P13 Dimensions (mm): A 9.00, B 13.50, C 23.00, D 9.60, E 31.80 | Color: Red | Wire range: 600V Max No.18-No.8 AWG., Temp. 105℃(221℉) Max.5 #12, Min.3 #16 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P15 Dimensions (mm): A 10.00, B 14.90, C 25.50, D 10.00, E 33.30 | Color: Grey | Wire range: 600V Max No.18-No.8 AWG., Temp. 105℃(221℉) Max.3 #10, Min.3 #14 w/1#18 | Pack qty (bag): 250 | Pack qty (carton): 2,500
P17 Dimensions (mm): A 12.00, B 18.80, C 32.00, D 13.10, E 40.00 | Color: Blue | Wire range: 600V Max No.14-No.6 AWG., Temp. 105℃(221℉) Max.3 #8 w/1#12, Min.2 #10 w/1#12 | Pack qty (bag): 100 | Pack qty (carton): 1,500
Wire ConnectorsJeoneo
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo P Winged Wire Connectors (P11-P17)

Brand Jeoneo·Wire Connectors

Available part numbers (5)

P11, P12, P13, P15, P17

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo P Winged Wire Connectors (P11-P17)
0 selected
RFQ List (0)
Product codeSpec
P11Dimensions (mm): A 6.40, B 9.80, C 18.20, D 9.00, E 25.80 | Color: Yellow | Wire range: 600V Max No.18-No.10 AWG., Temp. 105℃(221℉) Max.3 #12, Min.2 #18 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P12Dimensions (mm): A 7.20, B 11.60, C 18.30, D 9.20, E 29.00 | Color: Tan | Wire range: 600V Max No.22-No.8 AWG., Temp. 105℃(221℉) Max.4 #12, Min.3 #22 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P13Dimensions (mm): A 9.00, B 13.50, C 23.00, D 9.60, E 31.80 | Color: Red | Wire range: 600V Max No.18-No.8 AWG., Temp. 105℃(221℉) Max.5 #12, Min.3 #16 | Pack qty (bag): 500 | Pack qty (carton): 5,000
P15Dimensions (mm): A 10.00, B 14.90, C 25.50, D 10.00, E 33.30 | Color: Grey | Wire range: 600V Max No.18-No.8 AWG., Temp. 105℃(221℉) Max.3 #10, Min.3 #14 w/1#18 | Pack qty (bag): 250 | Pack qty (carton): 2,500
P17Dimensions (mm): A 12.00, B 18.80, C 32.00, D 13.10, E 40.00 | Color: Blue | Wire range: 600V Max No.14-No.6 AWG., Temp. 105℃(221℉) Max.3 #8 w/1#12, Min.2 #10 w/1#12 | Pack qty (bag): 100 | Pack qty (carton): 1,500
