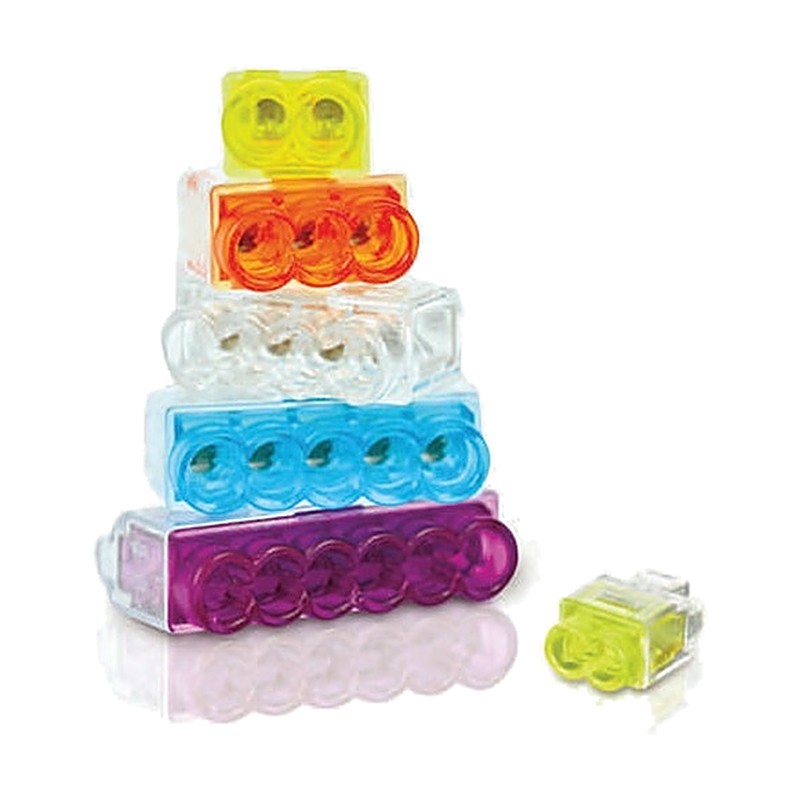

Jeoneo PC 35 Unik-Pro Push-In Wire Connectors
Jeoneo PC 35 Unik-Pro Push-In Wire Connectors
Unik-Pro push-in wire connectors for rigid/solid and flexible/stranded conductors, 2 to 8 poles.
Key features
- No pre-twisting required
- Compact size fits most small junction boxes
- Transparent shell makes connections visible
- Color coded; hardened stainless steel insert prevents pull-out
- Rated to 600 V for building wiring and 1,000 V for lighting fixtures and signs
Specifications
| IEC rating | 24 A, 450 V; 0.5-2.5 mm² rigid solid, 1-2.5 mm² rigid stranded |
|---|---|
| Housing | Polycarbonate, UL94 V-0 |
| Working temperature | T85 (IEC), 105 °C (UL) |
| UL rating | 600V, 22~12AWG, Sol. CU, 18~12AWG, Str. CU / 22~14AWG, Tin-dipped Str. Cu |
| PC 352 | Color: Yellow | Poles: 2 | Pack qty (bag): 500 | Pack qty (carton): 5,000 | |
| PC 353 | Color: Orange | Poles: 3 | Pack qty (bag): 400 | Pack qty (carton): 4,000 | |
| PC 354 | Color: Clear | Poles: 4 | Pack qty (bag): 300 | Pack qty (carton): 3,000 | |
| PC 355 | Color: Blue | Poles: 5 | Pack qty (bag): 300 | Pack qty (carton): 3,000 | |
| PC 356 | Color: Purple | Poles: 6 | Pack qty (bag): 250 | Pack qty (carton): 2,500 | |
| PC 358 | Color: Black | Poles: 8 | Pack qty (bag): 200 | Pack qty (carton): 2,000 |
Wire ConnectorsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo PC 35 Unik-Pro Push-In Wire Connectors
Available part numbers (6)
PC 352, PC 353, PC 354, PC 355, PC 356, PC 358
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Wire Connectors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PC 352 | Color: Yellow | Poles: 2 | Pack qty (bag): 500 | Pack qty (carton): 5,000 | ||
| PC 353 | Color: Orange | Poles: 3 | Pack qty (bag): 400 | Pack qty (carton): 4,000 | ||
| PC 354 | Color: Clear | Poles: 4 | Pack qty (bag): 300 | Pack qty (carton): 3,000 | ||
| PC 355 | Color: Blue | Poles: 5 | Pack qty (bag): 300 | Pack qty (carton): 3,000 | ||
| PC 356 | Color: Purple | Poles: 6 | Pack qty (bag): 250 | Pack qty (carton): 2,500 | ||
| PC 358 | Color: Black | Poles: 8 | Pack qty (bag): 200 | Pack qty (carton): 2,000 |
