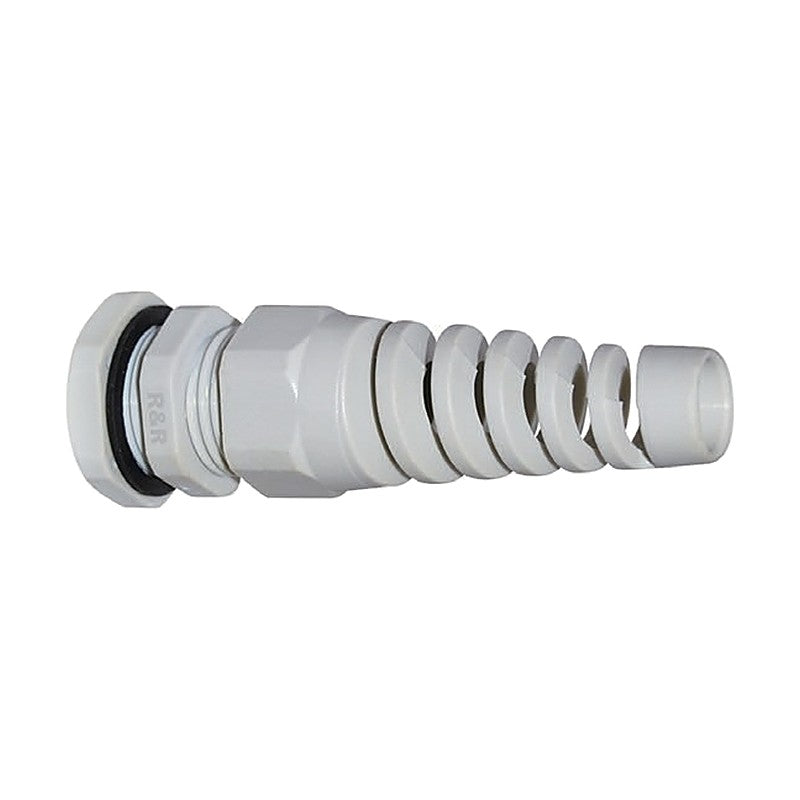

Jeoneo PG-R Non-Metallic Cable Glands with Strain Relief

Jeoneo PG-R Non-Metallic Cable Glands with Strain Relief

Nylon 66 PG-thread cable glands with integrated spiral strain relief and NBR seal for cables from 3 to 18 mm.

Key features

  • Integrated strain-relief spiral protects the cable
  • Silver gray; black on special order

Specifications

Material Nylon 66 body/nuts, NBR seal
Working temperature -40 to 100 °C static (120 °C short term), -20 to 80 °C dynamic
Flammability UL94 V-2
Protection IP68
Color Silver gray
PG-7R Thread size: PG 7 | Cable range (mm): 3~6.5 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 12.5 | Spanner, sealing nut (mm): 16 | Spanner, lock nut (mm): 19 | Pack qty: 100
PG-9R Thread size: PG 9 | Cable range (mm): 4~8 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 15.2 | Spanner, sealing nut (mm): 19 | Spanner, lock nut (mm): 22 | Pack qty: 100
PG-11R Thread size: PG 11 | Cable range (mm): 6~10 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 18.6 | Spanner, sealing nut (mm): 22 | Spanner, lock nut (mm): 24 | Pack qty: 100
PG-13.5R Thread size: PG 13.5 | Cable range (mm): 7~12 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 20.4 | Spanner, sealing nut (mm): 24 | Spanner, lock nut (mm): 27 | Pack qty: 50
PG-16R Thread size: PG 16 | Cable range (mm): 8.5~14 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 22.5 | Spanner, sealing nut (mm): 27 | Spanner, lock nut (mm): 30 | Pack qty: 50
PG-21R Thread size: PG 21 | Cable range (mm): 13~18 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 28.3 | Spanner, sealing nut (mm): 33 | Spanner, lock nut (mm): 36 | Pack qty: 20
Cable GlandsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo PG-R Non-Metallic Cable Glands with Strain Relief

Brand Jeoneo·Cable Glands

Available part numbers (6)

PG-7R, PG-9R, PG-11R, PG-13.5R, PG-16R, PG-21R

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PG-7RThread size: PG 7 | Cable range (mm): 3~6.5 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 12.5 | Spanner, sealing nut (mm): 16 | Spanner, lock nut (mm): 19 | Pack qty: 100
PG-9RThread size: PG 9 | Cable range (mm): 4~8 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 15.2 | Spanner, sealing nut (mm): 19 | Spanner, lock nut (mm): 22 | Pack qty: 100
PG-11RThread size: PG 11 | Cable range (mm): 6~10 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 18.6 | Spanner, sealing nut (mm): 22 | Spanner, lock nut (mm): 24 | Pack qty: 100
PG-13.5RThread size: PG 13.5 | Cable range (mm): 7~12 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 20.4 | Spanner, sealing nut (mm): 24 | Spanner, lock nut (mm): 27 | Pack qty: 50
PG-16RThread size: PG 16 | Cable range (mm): 8.5~14 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 22.5 | Spanner, sealing nut (mm): 27 | Spanner, lock nut (mm): 30 | Pack qty: 50
PG-21RThread size: PG 21 | Cable range (mm): 13~18 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 28.3 | Spanner, sealing nut (mm): 33 | Spanner, lock nut (mm): 36 | Pack qty: 20
