• Jeoneo PGL Non-Metallic Cable Glands with Iron Washer
1 1

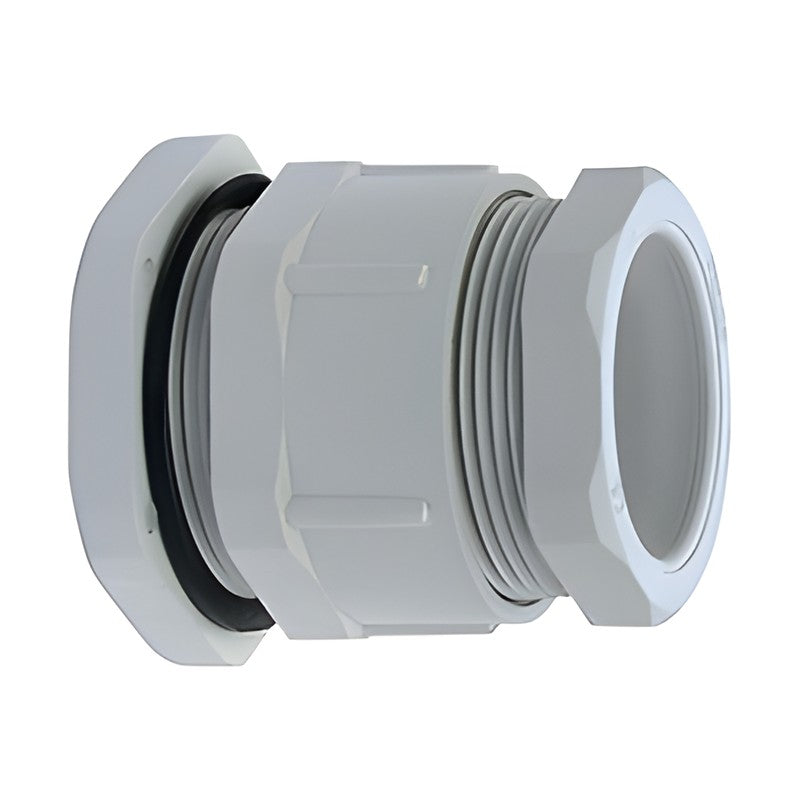

Jeoneo PGL Non-Metallic Cable Glands with Iron Washer

Jeoneo PGL Non-Metallic Cable Glands with Iron Washer

Nylon 66 PG-thread cable glands of PGL type with iron part, NBR seal, IP68, for cables from 4.5 to 44 mm.

Key features

  • IP68 protection
  • Silver gray
  • Non-general item, special order only

Specifications

Material Nylon 66 body/nuts, NBR seal
Working temperature -40 to 100 °C static (120 °C short term), -20 to 80 °C dynamic
Flammability UL94 V-2
Protection IP68
Color Silver gray
PGL-7 Thread size: PG 7 | Cable range (mm): 4.5~6 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 12.5 | Spanner, sealing nut (mm): 13 | Spanner, lock nut (mm): 19 | Pack qty: 100
PGL-9 Thread size: PG 9 | Cable range (mm): 4.5~7 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 15.2 | Spanner, sealing nut (mm): 16 | Spanner, lock nut (mm): 22 | Pack qty: 100
PGL-11 Thread size: PG 11 | Cable range (mm): 7~11 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 18.6 | Spanner, sealing nut (mm): 19 | Spanner, lock nut (mm): 24 | Pack qty: 100
PGL-13.5 Thread size: PG 13.5 | Cable range (mm): 8~12 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 20.4 | Spanner, sealing nut (mm): 21 | Spanner, lock nut (mm): 26 | Pack qty: 100
PGL-16 Thread size: PG 16 | Cable range (mm): 10~13 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 22.5 | Spanner, sealing nut (mm): 23 | Spanner, lock nut (mm): 30 | Pack qty: 100
PGL-21 Thread size: PG 21 | Cable range (mm): 11~16 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 28.3 | Spanner, sealing nut (mm): 30 | Spanner, lock nut (mm): 36 | Pack qty: 100
PGL-29 Thread size: PG 29 | Cable range (mm): 20~25 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 37 | Spanner, sealing nut (mm): 39 | Spanner, lock nut (mm): 46 | Pack qty: 50
PGL-36 Thread size: PG 36 | Cable range (mm): 22~31 | Thread length L1 (mm): 13 | Thread O.D. L2 (mm): 47 | Spanner, sealing nut (mm): 49 | Spanner, lock nut (mm): 56 | Pack qty: 20
PGL-42 Thread size: PG 42 | Cable range (mm): 30~38 | Thread length L1 (mm): 14 | Thread O.D. L2 (mm): 54 | Spanner, sealing nut (mm): 54 | Spanner, lock nut (mm): 65 | Pack qty: 20
PGL-48 Thread size: PG 48 | Cable range (mm): 35~44 | Thread length L1 (mm): 14 | Thread O.D. L2 (mm): 59.3 | Spanner, sealing nut (mm): 59 | Spanner, lock nut (mm): 70 | Pack qty: 20
Cable GlandsJeoneo
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo PGL Non-Metallic Cable Glands with Iron Washer

Brand Jeoneo·Cable Glands

Available part numbers (10)

PGL-7, PGL-9, PGL-11, PGL-13.5, PGL-16, PGL-21, PGL-29, PGL-36, PGL-42, PGL-48

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PGL-7Thread size: PG 7 | Cable range (mm): 4.5~6 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 12.5 | Spanner, sealing nut (mm): 13 | Spanner, lock nut (mm): 19 | Pack qty: 100
PGL-9Thread size: PG 9 | Cable range (mm): 4.5~7 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 15.2 | Spanner, sealing nut (mm): 16 | Spanner, lock nut (mm): 22 | Pack qty: 100
PGL-11Thread size: PG 11 | Cable range (mm): 7~11 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 18.6 | Spanner, sealing nut (mm): 19 | Spanner, lock nut (mm): 24 | Pack qty: 100
PGL-13.5Thread size: PG 13.5 | Cable range (mm): 8~12 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 20.4 | Spanner, sealing nut (mm): 21 | Spanner, lock nut (mm): 26 | Pack qty: 100
PGL-16Thread size: PG 16 | Cable range (mm): 10~13 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 22.5 | Spanner, sealing nut (mm): 23 | Spanner, lock nut (mm): 30 | Pack qty: 100
PGL-21Thread size: PG 21 | Cable range (mm): 11~16 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 28.3 | Spanner, sealing nut (mm): 30 | Spanner, lock nut (mm): 36 | Pack qty: 100
PGL-29Thread size: PG 29 | Cable range (mm): 20~25 | Thread length L1 (mm): 11 | Thread O.D. L2 (mm): 37 | Spanner, sealing nut (mm): 39 | Spanner, lock nut (mm): 46 | Pack qty: 50
PGL-36Thread size: PG 36 | Cable range (mm): 22~31 | Thread length L1 (mm): 13 | Thread O.D. L2 (mm): 47 | Spanner, sealing nut (mm): 49 | Spanner, lock nut (mm): 56 | Pack qty: 20
PGL-42Thread size: PG 42 | Cable range (mm): 30~38 | Thread length L1 (mm): 14 | Thread O.D. L2 (mm): 54 | Spanner, sealing nut (mm): 54 | Spanner, lock nut (mm): 65 | Pack qty: 20
PGL-48Thread size: PG 48 | Cable range (mm): 35~44 | Thread length L1 (mm): 14 | Thread O.D. L2 (mm): 59.3 | Spanner, sealing nut (mm): 59 | Spanner, lock nut (mm): 70 | Pack qty: 20
