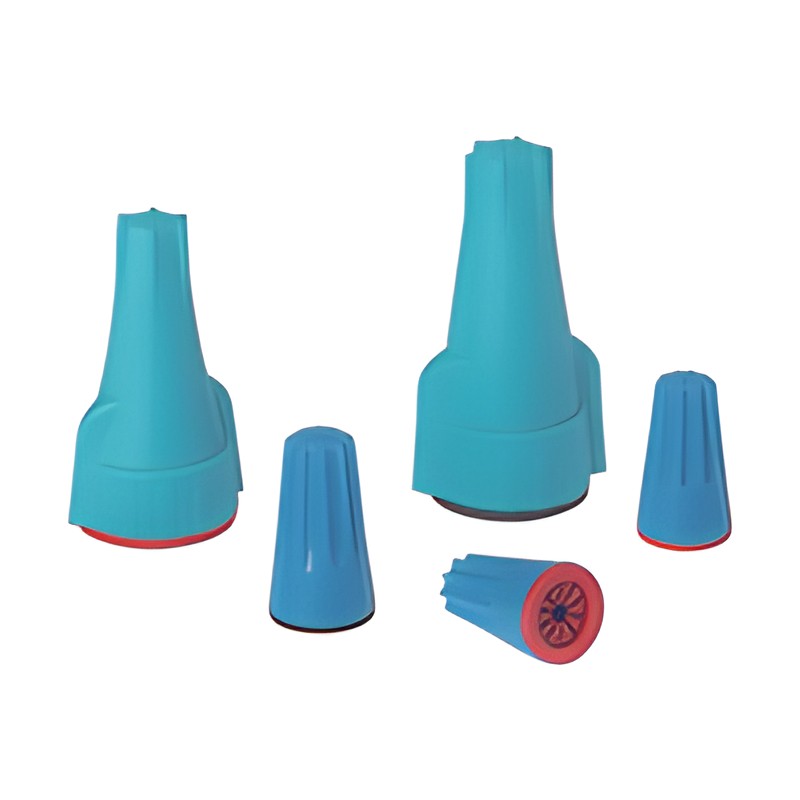

Jeoneo R and P-W Waterproof Silicone-Filled Wire Connectors

Jeoneo R and P-W Waterproof Silicone-Filled Wire Connectors

Waterproof screw-on wire connectors pre-filled with dielectric silicone sealant for damp, wet and direct-burial locations.

Key features

  • Tough thermoplastic shell, UL94 V-2, rated 105 °C
  • Zinc-plated square wire spring
  • Pre-filled with dielectric silicone sealant
  • Rated 600 V building wiring, 1,000 V signs or luminaires
  • UL listed to 486D for dry, damp, wet locations and direct burial

Specifications

Shell Thermoplastic, UL94 V-2, 105 °C
Spring Zinc-plated square wire
Jeoneo R and P-W Waterproof Silicone-Filled Wire Connectors
R3 Color: Blue, (+Red) | Wire range: #20-#10, Cu, Max. 3 #12, Min. 2 #20 | Strip length: Max. 15.9mm, Min. 12.7mm | Pack qty: 100
P4W Color: Blue, (+Black) | Wire range: #22-#12, Cu, Max. 2 #12w, 2#14, Min. 3 #20 | Strip length: Max. 11.1mm, Min. 9.5mm | Pack qty: 500
P3W Color: Blue, (+Red) | Wire range: #22-#14, Cu, Max. 4 #16w, 1#20, Min. 1 #18w, 1#20 | Strip length: Max. 9.5mm, Min. 7.9mm | Pack qty: 500
R6 Color: Blue, (+Black) | Wire range: #20-#8, Cu, Max. 4 #10, Min. 3 #16 | Strip length: Max. 19.1mm, Min. 15.9mm | Pack qty: 100
Wire ConnectorsJeoneo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo R and P-W Waterproof Silicone-Filled Wire Connectors

Brand Jeoneo·Wire Connectors

Available part numbers (4)

R3, P4W, P3W, R6

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo R and P-W Waterproof Silicone-Filled Wire Connectors
0 selected
RFQ List (0)
Product codeSpec
R3Color: Blue, (+Red) | Wire range: #20-#10, Cu, Max. 3 #12, Min. 2 #20 | Strip length: Max. 15.9mm, Min. 12.7mm | Pack qty: 100
P4WColor: Blue, (+Black) | Wire range: #22-#12, Cu, Max. 2 #12w, 2#14, Min. 3 #20 | Strip length: Max. 11.1mm, Min. 9.5mm | Pack qty: 500
P3WColor: Blue, (+Red) | Wire range: #22-#14, Cu, Max. 4 #16w, 1#20, Min. 1 #18w, 1#20 | Strip length: Max. 9.5mm, Min. 7.9mm | Pack qty: 500
R6Color: Blue, (+Black) | Wire range: #20-#8, Cu, Max. 4 #10, Min. 3 #16 | Strip length: Max. 19.1mm, Min. 15.9mm | Pack qty: 100
