Jeoneo SGW Ground Sleeves
Jeoneo SGW Ground Sleeves

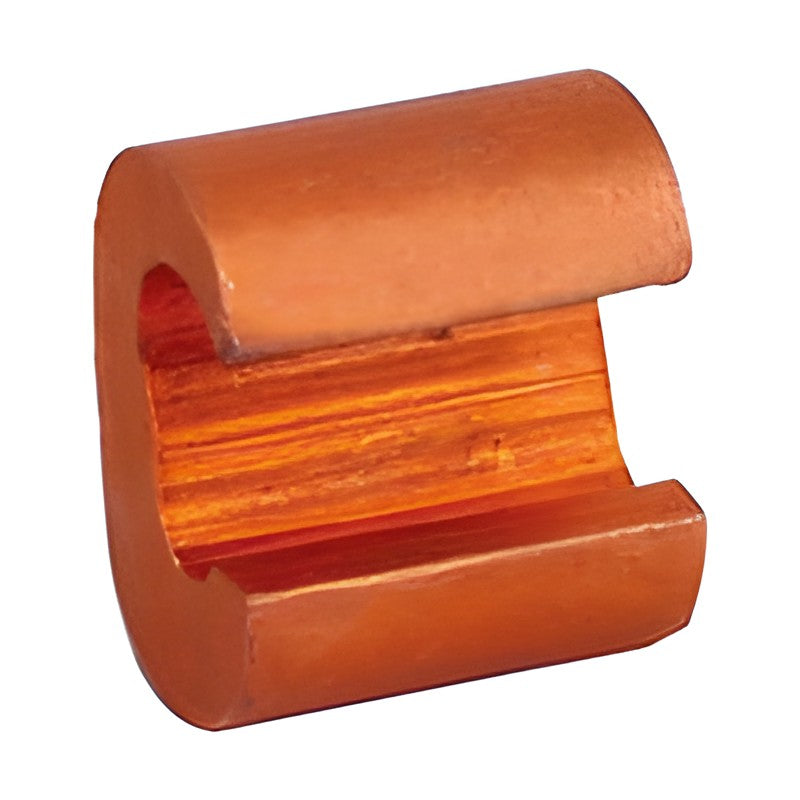

High-conductivity copper ground sleeves for compression grounding connections of run and tap conductors from AWG 4 to 600 kcmil.
Key features
- High-conductivity copper with copper finish
- Installed with the matching SGWD crimping die
Specifications
| Material | High-conductivity copper |
|---|---|
| Surface | Copper finish |
| SGW-22 | Run wire: 4 AWG / 22(25) mm² | Tap wire: 4 AWG / 22(25) mm² | Die: SGWD-22 | Number of crimps: 1 | Dimensions (mm): H 20, L 30 | |
| SGW-44 | Run wire: 2 AWG / 38(35) mm² | Tap wire: 4~2 AWG / 38~22(35~25) mm² | Die: SGWD-44 | Number of crimps: 1 | Dimensions (mm): H 24, L 30 | |
| SGW-62 | Run wire: 2/0 AWG / 60(70) mm² | Tap wire: 4 AWG / 22(25) mm² | Die: SGWD-62 | Number of crimps: 1 | Dimensions (mm): H 27, L 30 | |
| SGW-66 | Run wire: 2/0 AWG / 60(70) mm² | Tap wire: 2/0~2 AWG / 60~38(70~35) mm² | Die: SGWD-1002 | Number of crimps: 1 | Dimensions (mm): H 30, L 30 | |
| SGW-1002 | Run wire: 4/0 AWG / 100(95) mm² | Tap wire: 4 AWG / 22(25) mm² | Die: SGWD-1002 | Number of crimps: 1 | Dimensions (mm): H 30, L 40 | |
| SGW-1006 | Run wire: 4/0 AWG / 100(95) mm² | Tap wire: 2/0~2 AWG / 60~38(70~35) mm² | Die: SGWD-1006 | Number of crimps: 1 | Dimensions (mm): H 34, L 40 | |
| SGW-1010 | Run wire: 4/0 AWG / 100(95) mm² | Tap wire: 4/0 AWG / 100(95) mm² | Die: SGWD-1010 | Number of crimps: 1 | Dimensions (mm): H 38, L 40 | |
| SGW-1212 | Run wire: 250Kcmil / 120 mm² | Tap wire: 250Kcmil / 120 mm² | Die: SGWD-2010 | Number of crimps: 1 | Dimensions (mm): H 47, L 55 | |
| SGW-1506 | Run wire: 300Kcmil / 150 mm² | Tap wire: 2/0~2 AWG / 60~38(70~35) mm² | Die: SGWD-2010 | Number of crimps: 3 | Dimensions (mm): H 47, L 55 | |
| SGW-2004 | Run wire: 400Kcmil / 200(185) mm² | Tap wire: 2 AWG / 38(35) mm² | Die: SGWD-2010 | Number of crimps: 3 | Dimensions (mm): H 47, L 55 | |
| SGW-2010 | Run wire: 400Kcmil / 200(240) mm² | Tap wire: 4/0~2/0 AWG / 100~60(38) mm² | Die: SGWD-2010 | Number of crimps: 3 | Dimensions (mm): H 46, L 60 | |
| SGW-2507 | Run wire: 500Kcmil / 240 mm² | Tap wire: 2/0~2 AWG / 70~35 mm² | Die: SGWD-2010 | Number of crimps: 3 | Dimensions (mm): H 46, L 60 | |
| SGW-1515 | Run wire: 300Kcmil / 150(240) mm² | Tap wire: 300Kcmil~4/0 / 150~95(95~70) mm² | Die: SGWD-2525 | Number of crimps: 3 | Dimensions (mm): H 60, L 55 | |
| SGW-2020 | Run wire: 400Kcmil / 200(185) mm² | Tap wire: 400Kcmil~300Kcmil / 200~150 mm² | Die: SGWD-2525 | Number of crimps: 3 | Dimensions (mm): H 60, L 60 | |
| SGW-2515 | Run wire: 500Kcmil / 240 mm² | Tap wire: 300Kcmil~4/0 / 150~95 mm² | Die: SGWD-2525 | Number of crimps: 3 | Dimensions (mm): H 60, L 60 | |
| SGW-2525 | Run wire: 500Kcmil / 240 mm² | Tap wire: 500Kcmil~300Kcmil / 240~150 mm² | Die: SGWD-2525 | Number of crimps: 3 | Dimensions (mm): H 62, L 65 | |
| SGW-3030 | Run wire: 600Kcmil / 300 mm² | Tap wire: 600Kcmil~500Kcmil / 300~240 mm² | Die: SGWD-3030 | Number of crimps: 3 | Dimensions (mm): H 65, L 65 |
