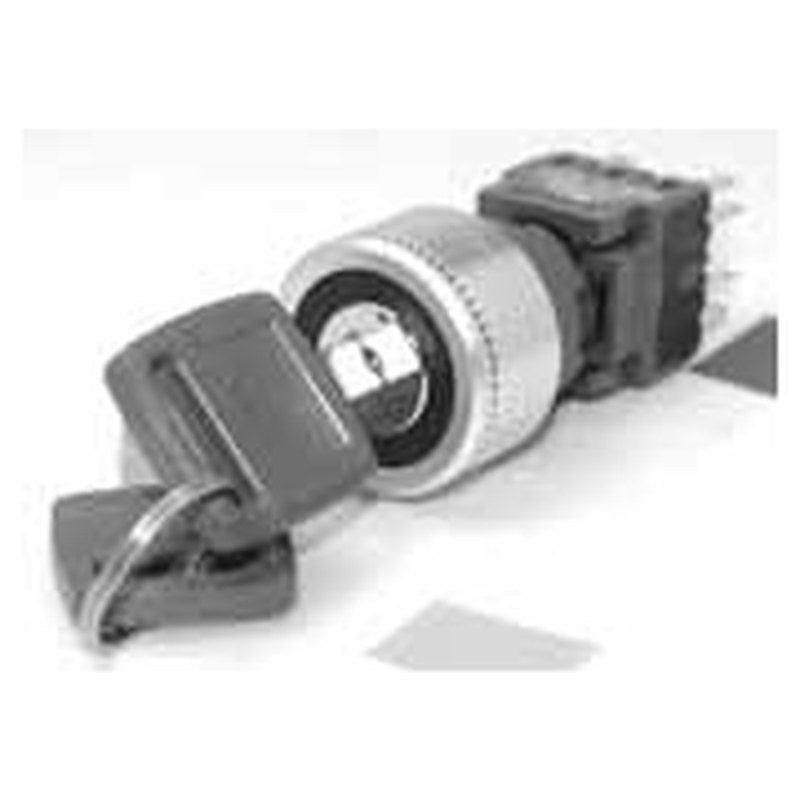

KACON F16 Series Key Switches (2 and 3 Position)

KACON F16 Series Key Switches (2 and 3 Position)

KACON F16 key-operated selector switches in 2- and 3-position spring-return or maintained versions with selectable key-removal positions.

Key features

  • 2-position and 3-position key operators
  • Key removal position codes A-D (2-pos) and A-G (3-pos)
  • Ø16 round, square, rectangular; Ø20 flush round
  • Contacts 1N/O+1N/C to 3N/O+3N/C
  • IP40 key operator protection

Specifications

Illumination Non-illuminated
Colour Black
Contact rating 3A 110VAC / 0.7A 24VDC (resistive)
Max. rated voltage 250VAC / 110VDC
Contact material Ag alloy (24K gold plated)
Ambient temperature -20 to +70°C (no icing)
Mechanical life Min. 250,000 operations
Degree of protection IP40
Source KACON F16 Catalog catalogue, p. 2-3, 5-6, 14-17
F16-641K-0A Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-642K-0A Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-643K-0A Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-641K-0B Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-642K-0B Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-643K-0B Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-641K-2A Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-642K-2A Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-643K-2A Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-641K-2B Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-642K-2B Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-643K-2B Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-641K-2D Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-642K-2D Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-643K-2D Size: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-742K-1C Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-743K-1C Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-742K-1E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-1E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-6D Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-743K-6D Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-742K-6E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-6E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-6F Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-743K-6F Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-742K-7A Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-743K-7A Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-742K-7E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-7E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-7G Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-743K-7G Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-742K-3A Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-743K-3A Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-742K-3B Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-743K-3B Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-742K-3C Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-743K-3C Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-742K-3D Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-743K-3D Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-742K-3E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-3E Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-3F Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-743K-3F Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-742K-3G Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-743K-3G Size: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
F16-611K-0A Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-612K-0A Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-613K-0A Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-611K-0B Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-612K-0B Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-613K-0B Size: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-611K-2A Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-612K-2A Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-613K-2A Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-611K-2B Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-612K-2B Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-613K-2B Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-611K-2D Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-612K-2D Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-613K-2D Size: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-621K-0A Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-622K-0A Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-623K-0A Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-621K-0B Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-622K-0B Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-623K-0B Size: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-621K-2A Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-622K-2A Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-623K-2A Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-621K-2B Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-622K-2B Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-623K-2B Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-621K-2D Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-622K-2D Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-623K-2D Size: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-631K-0A Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-632K-0A Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-633K-0A Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-631K-0B Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-632K-0B Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-633K-0B Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-631K-2A Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-632K-2A Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-633K-2A Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-631K-2B Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-632K-2B Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-633K-2B Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-631K-2D Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-632K-2D Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-633K-2D Size: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-712K-1C Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-713K-1C Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-712K-1E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-1E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-6D Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-713K-6D Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-712K-6E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-6E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-6F Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-713K-6F Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-712K-7A Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-713K-7A Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-712K-7E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-7E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-7G Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-713K-7G Size: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-712K-3A Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-713K-3A Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-712K-3B Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-713K-3B Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-712K-3C Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-713K-3C Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-712K-3D Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-713K-3D Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-712K-3E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-3E Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-3F Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-713K-3F Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-712K-3G Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-713K-3G Size: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
F16-722K-1C Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-723K-1C Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-722K-1E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-1E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-6D Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-723K-6D Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-722K-6E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-6E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-6F Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-723K-6F Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-722K-7A Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-723K-7A Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-722K-7E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-7E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-7G Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-723K-7G Size: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-722K-3A Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-723K-3A Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-722K-3B Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-723K-3B Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-722K-3C Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-723K-3C Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-722K-3D Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-723K-3D Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-722K-3E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-3E Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-3F Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-723K-3F Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-722K-3G Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-723K-3G Size: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
F16-732K-1C Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-733K-1C Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-732K-1E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-1E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-6D Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-733K-6D Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-732K-6E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-6E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-6F Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-733K-6F Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-732K-7A Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-733K-7A Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-732K-7E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-7E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-7G Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-733K-7G Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-732K-3A Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-733K-3A Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-732K-3B Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-733K-3B Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-732K-3C Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-733K-3C Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-732K-3D Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-733K-3D Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-732K-3E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-3E Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-3F Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-733K-3F Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-732K-3G Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-733K-3G Size: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
Selector SwitchesKACON
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON F16 Series Key Switches (2 and 3 Position)

Brand KACON·Selector Switches

Available part numbers (180)

F16-641K-0A, F16-642K-0A, F16-643K-0A, F16-641K-0B, F16-642K-0B, F16-643K-0B, F16-641K-2A, F16-642K-2A, F16-643K-2A, F16-641K-2B + 170 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F16-641K-0ASize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-642K-0ASize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-643K-0ASize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-641K-0BSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-642K-0BSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-643K-0BSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-641K-2ASize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-642K-2ASize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-643K-2ASize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-641K-2BSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-642K-2BSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-643K-2BSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-641K-2DSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-642K-2DSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-643K-2DSize: Ø20 flush | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-742K-1CSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-743K-1CSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-742K-1ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-1ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-6DSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-743K-6DSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-742K-6ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-6ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-6FSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-743K-6FSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-742K-7ASize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-743K-7ASize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-742K-7ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-7ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-7GSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-743K-7GSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-742K-3ASize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-743K-3ASize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-742K-3BSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-743K-3BSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-742K-3CSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-743K-3CSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-742K-3DSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-743K-3DSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-742K-3ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-743K-3ESize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-742K-3FSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-743K-3FSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-742K-3GSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-743K-3GSize: Ø20 flush | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
F16-611K-0ASize: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-612K-0ASize: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-613K-0ASize: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-611K-0BSize: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-612K-0BSize: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-613K-0BSize: Ø16 | Shape: Round | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-611K-2ASize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-612K-2ASize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-613K-2ASize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-611K-2BSize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-612K-2BSize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-613K-2BSize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-611K-2DSize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-612K-2DSize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-613K-2DSize: Ø16 | Shape: Round | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-621K-0ASize: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-622K-0ASize: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-623K-0ASize: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-621K-0BSize: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-622K-0BSize: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-623K-0BSize: Ø16 | Shape: Square | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-621K-2ASize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-622K-2ASize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-623K-2ASize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-621K-2BSize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-622K-2BSize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-623K-2BSize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-621K-2DSize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-622K-2DSize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-623K-2DSize: Ø16 | Shape: Square | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-631K-0ASize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 1N/O + 1N/C
F16-632K-0ASize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 2N/O + 2N/C
F16-633K-0ASize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: A | Contacts: 3N/O + 3N/C
F16-631K-0BSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 1N/O + 1N/C
F16-632K-0BSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 2N/O + 2N/C
F16-633K-0BSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Spring return | Key removal code: B | Contacts: 3N/O + 3N/C
F16-631K-2ASize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 1N/O + 1N/C
F16-632K-2ASize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-633K-2ASize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-631K-2BSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 1N/O + 1N/C
F16-632K-2BSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-633K-2BSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-631K-2DSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 1N/O + 1N/C
F16-632K-2DSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-633K-2DSize: Ø16 | Shape: Rectangular | Positions: 2 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-712K-1CSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-713K-1CSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-712K-1ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-1ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-6DSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-713K-6DSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-712K-6ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-6ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-6FSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-713K-6FSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-712K-7ASize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-713K-7ASize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-712K-7ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-7ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-7GSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-713K-7GSize: Ø16 | Shape: Round | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-712K-3ASize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-713K-3ASize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-712K-3BSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-713K-3BSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-712K-3CSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-713K-3CSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-712K-3DSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-713K-3DSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-712K-3ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-713K-3ESize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-712K-3FSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-713K-3FSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-712K-3GSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-713K-3GSize: Ø16 | Shape: Round | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
F16-722K-1CSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-723K-1CSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-722K-1ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-1ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-6DSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-723K-6DSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-722K-6ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-6ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-6FSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-723K-6FSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-722K-7ASize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-723K-7ASize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-722K-7ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-7ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-7GSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-723K-7GSize: Ø16 | Shape: Square | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-722K-3ASize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-723K-3ASize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-722K-3BSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-723K-3BSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-722K-3CSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-723K-3CSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-722K-3DSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-723K-3DSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-722K-3ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-723K-3ESize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-722K-3FSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-723K-3FSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-722K-3GSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-723K-3GSize: Ø16 | Shape: Square | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C
F16-732K-1CSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 2N/O + 2N/C
F16-733K-1CSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: C | Contacts: 3N/O + 3N/C
F16-732K-1ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-1ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 1) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-6DSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 2N/O + 2N/C
F16-733K-6DSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: D | Contacts: 3N/O + 3N/C
F16-732K-6ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-6ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-6FSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 2N/O + 2N/C
F16-733K-6FSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 6) | Key removal code: F | Contacts: 3N/O + 3N/C
F16-732K-7ASize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 2N/O + 2N/C
F16-733K-7ASize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: A | Contacts: 3N/O + 3N/C
F16-732K-7ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-7ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-7GSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 2N/O + 2N/C
F16-733K-7GSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Spring return (code 7) | Key removal code: G | Contacts: 3N/O + 3N/C
F16-732K-3ASize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 2N/O + 2N/C
F16-733K-3ASize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: A | Contacts: 3N/O + 3N/C
F16-732K-3BSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 2N/O + 2N/C
F16-733K-3BSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: B | Contacts: 3N/O + 3N/C
F16-732K-3CSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 2N/O + 2N/C
F16-733K-3CSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: C | Contacts: 3N/O + 3N/C
F16-732K-3DSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 2N/O + 2N/C
F16-733K-3DSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: D | Contacts: 3N/O + 3N/C
F16-732K-3ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 2N/O + 2N/C
F16-733K-3ESize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: E | Contacts: 3N/O + 3N/C
F16-732K-3FSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 2N/O + 2N/C
F16-733K-3FSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: F | Contacts: 3N/O + 3N/C
F16-732K-3GSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 2N/O + 2N/C
F16-733K-3GSize: Ø16 | Shape: Rectangular | Positions: 3 | Operation: Maintained | Key removal code: G | Contacts: 3N/O + 3N/C

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
