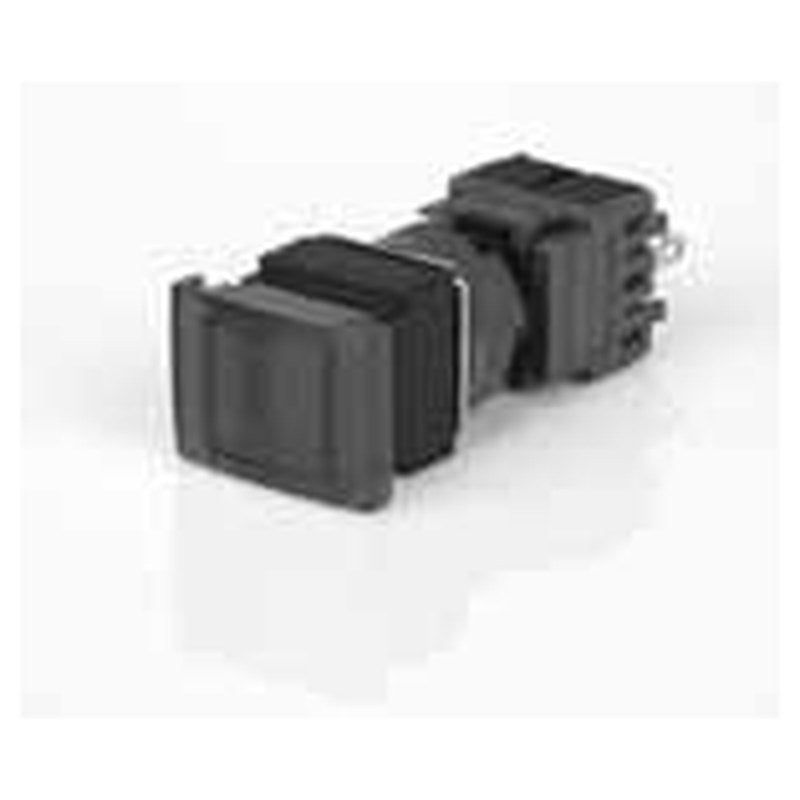

KACON F16 Series Ø16 Mushroom Push Button Switches

KACON F16 Series Ø16 Mushroom Push Button Switches

KACON F16 mushroom-head push button switches for Ø16 panel holes, available non-illuminated or LED-illuminated.

Key features

  • Round, square and rectangular mushroom-head bodies
  • Red, green and yellow heads
  • Non-illuminated: 1N/O+1N/C to 3N/O+3N/C
  • Illuminated LED versions 1N/O+1N/C at 6/12/24VDC
  • IP65 front protection

Specifications

Panel cut-out Ø16.0±0.2
Lamp voltage (illuminated) 6VDC / 12VDC / 24VDC (specify)
Contact rating 3A 110VAC / 0.7A 24VDC (resistive)
Max. rated voltage 250VAC / 110VDC
Contact material Ag alloy (24K gold plated)
Ambient temperature -20 to +70°C (no icing)
Degree of protection IP65
Source KACON F16 Catalog catalogue, p. 2-3, 18
F16-911R Shape: Round | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Red
F16-911G Shape: Round | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Green
F16-911Y Shape: Round | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-912R Shape: Round | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Red
F16-912G Shape: Round | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Green
F16-912Y Shape: Round | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Yellow
F16-913R Shape: Round | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Red
F16-913G Shape: Round | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Green
F16-913Y Shape: Round | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Yellow
F16-921R Shape: Square | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Red
F16-921G Shape: Square | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Green
F16-921Y Shape: Square | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-922R Shape: Square | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Red
F16-922G Shape: Square | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Green
F16-922Y Shape: Square | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Yellow
F16-923R Shape: Square | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Red
F16-923G Shape: Square | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Green
F16-923Y Shape: Square | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Yellow
F16-931R Shape: Rectangular | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Red
F16-931G Shape: Rectangular | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Green
F16-931Y Shape: Rectangular | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-932R Shape: Rectangular | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Red
F16-932G Shape: Rectangular | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Green
F16-932Y Shape: Rectangular | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Yellow
F16-933R Shape: Rectangular | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Red
F16-933G Shape: Rectangular | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Green
F16-933Y Shape: Rectangular | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Yellow
F16-971R Shape: Round | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Red
F16-971G Shape: Round | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Green
F16-971Y Shape: Round | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-981R Shape: Square | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Red
F16-981G Shape: Square | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Green
F16-981Y Shape: Square | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-991R Shape: Rectangular | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Red
F16-991G Shape: Rectangular | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Green
F16-991Y Shape: Rectangular | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Yellow
Push Button SwitchesKACON
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON F16 Series Ø16 Mushroom Push Button Switches

Brand KACON·Push Button Switches

Available part numbers (36)

F16-911R, F16-911G, F16-911Y, F16-912R, F16-912G, F16-912Y, F16-913R, F16-913G, F16-913Y, F16-921R + 26 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F16-911RShape: Round | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Red
F16-911GShape: Round | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Green
F16-911YShape: Round | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-912RShape: Round | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Red
F16-912GShape: Round | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Green
F16-912YShape: Round | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Yellow
F16-913RShape: Round | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Red
F16-913GShape: Round | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Green
F16-913YShape: Round | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Yellow
F16-921RShape: Square | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Red
F16-921GShape: Square | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Green
F16-921YShape: Square | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-922RShape: Square | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Red
F16-922GShape: Square | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Green
F16-922YShape: Square | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Yellow
F16-923RShape: Square | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Red
F16-923GShape: Square | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Green
F16-923YShape: Square | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Yellow
F16-931RShape: Rectangular | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Red
F16-931GShape: Rectangular | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Green
F16-931YShape: Rectangular | Illumination: Non-illuminated | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-932RShape: Rectangular | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Red
F16-932GShape: Rectangular | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Green
F16-932YShape: Rectangular | Illumination: Non-illuminated | Contacts: 2N/O + 2N/C | Colour: Yellow
F16-933RShape: Rectangular | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Red
F16-933GShape: Rectangular | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Green
F16-933YShape: Rectangular | Illumination: Non-illuminated | Contacts: 3N/O + 3N/C | Colour: Yellow
F16-971RShape: Round | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Red
F16-971GShape: Round | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Green
F16-971YShape: Round | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-981RShape: Square | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Red
F16-981GShape: Square | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Green
F16-981YShape: Square | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Yellow
F16-991RShape: Rectangular | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Red
F16-991GShape: Rectangular | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Green
F16-991YShape: Rectangular | Illumination: Illuminated LED | Contacts: 1N/O + 1N/C | Colour: Yellow
