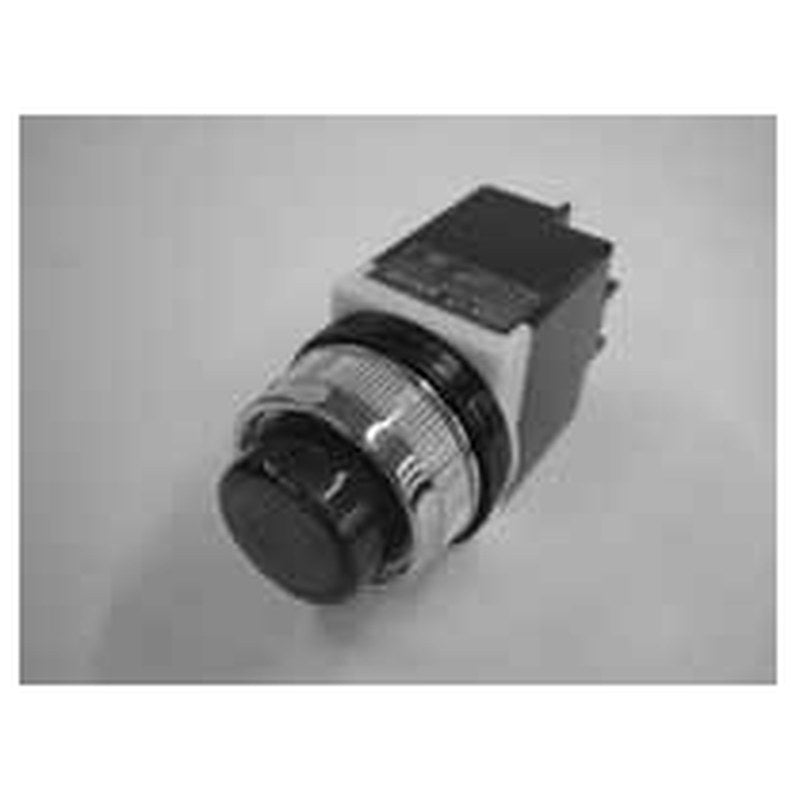

KACON H Series Ø25/Ø30 Push Button Switches

KACON H Series Ø25/Ø30 Push Button Switches

KACON H Series momentary push button switches for Ø25 and Ø30 holes, non-illuminated, LED-illuminated and snap-action illuminated.

Key features

  • Ø25 and Ø30 panel sizes
  • 1N/O + 1N/C contacts rated 10A
  • Illuminated BA9S LED versions at 24VDC to 220VAC
  • Snap-action illuminated versions
  • IP65; mechanical life 1,000,000

Specifications

Contacts 1N/O + 1N/C
Lamp voltage (illuminated) 24VDC / 110VDC / 110VAC / 220VAC (specify)
Contact rating 10A 250VAC AC1 / 3A 250VAC AC3
Contact material Ag alloy
Degree of protection IP65
Ambient temperature -25 to +70°C (no icing)
Panel cut-out Ø25.5 (+0.4) / Ø30.5 (+0.5)
Source KACON H Series Catalog catalogue, p. 2-3
H25-21R Panel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Red
H25-21G Panel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Green
H25-21B Panel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Blue
H25-21Y Panel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Yellow
H25-21W Panel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: White
H30-21R Panel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Red
H30-21G Panel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Green
H30-21B Panel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Blue
H30-21Y Panel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Yellow
H30-21W Panel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: White
H25-27R Panel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Red
H25-27G Panel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Green
H25-27B Panel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Blue
H25-27Y Panel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Yellow
H25-27W Panel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: White
H30-27R Panel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Red
H30-27G Panel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Green
H30-27B Panel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Blue
H30-27Y Panel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Yellow
H30-27W Panel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: White
H25-275R Panel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Red
H25-275G Panel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Green
H25-275B Panel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Blue
H25-275Y Panel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Yellow
H30-275R Panel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Red
H30-275G Panel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Green
H30-275B Panel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Blue
H30-275Y Panel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Yellow
Push Button SwitchesKACON
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON H Series Ø25/Ø30 Push Button Switches

Brand KACON·Push Button Switches

Available part numbers (28)

H25-21R, H25-21G, H25-21B, H25-21Y, H25-21W, H30-21R, H30-21G, H30-21B, H30-21Y, H30-21W + 18 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H25-21RPanel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Red
H25-21GPanel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Green
H25-21BPanel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Blue
H25-21YPanel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: Yellow
H25-21WPanel hole: Ø25 | Action: Momentary | Illumination: Non-illuminated | Colour: White
H30-21RPanel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Red
H30-21GPanel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Green
H30-21BPanel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Blue
H30-21YPanel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: Yellow
H30-21WPanel hole: Ø30 | Action: Momentary | Illumination: Non-illuminated | Colour: White
H25-27RPanel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Red
H25-27GPanel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Green
H25-27BPanel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Blue
H25-27YPanel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: Yellow
H25-27WPanel hole: Ø25 | Action: Momentary | Illumination: Illuminated LED | Colour: White
H30-27RPanel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Red
H30-27GPanel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Green
H30-27BPanel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Blue
H30-27YPanel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: Yellow
H30-27WPanel hole: Ø30 | Action: Momentary | Illumination: Illuminated LED | Colour: White
H25-275RPanel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Red
H25-275GPanel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Green
H25-275BPanel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Blue
H25-275YPanel hole: Ø25 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Yellow
H30-275RPanel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Red
H30-275GPanel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Green
H30-275BPanel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Blue
H30-275YPanel hole: Ø30 | Action: Momentary, snap action | Illumination: Illuminated LED | Colour: Yellow
