KACON HRF-HD8 Series Foot Switches (standard, latching, 2-step)

KACON HRF-HD8 Series Foot Switches (standard, latching, 2-step)

Heavy-duty IP67 foot switch with standard, 2-step, self-holding and safety-reset actions and optional anti-misoperation lever.

Key features

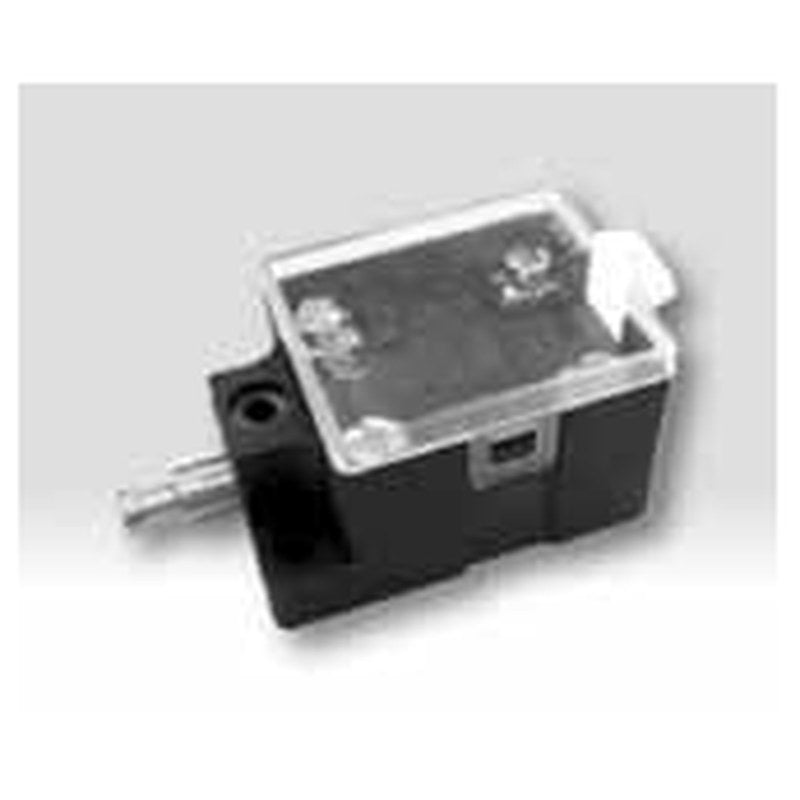

  • Built-in KSB1 limit-switch type contact blocks with 24K gold-plated contacts
  • 20A 250VAC contact rating, max. 440VAC
  • Optional anti-misoperation lever (HD8L) prevents accidental pedal actuation
  • 2-step type gives two control stages from one pedal (min. 15 kgf for step 2)
  • Self-holding and safety-reset types with top reset button for fast release
  • IP67 protection; 1,000,000 operations mechanical

Specifications

Contact material Ag alloy, 24K Au plated
Rated current 20A 250VAC
Max. rated voltage 440VAC
Contact resistance Max. 50 mOhm
Dielectric strength 2,000VAC for 1 min
Electrical life 200,000 operations
Mechanical life 1,000,000 operations
Protection IP67
Insulation resistance 100 MOhm min. at 500VDC
Contact block KSB1 series (built in)
Source KACON HRF-HD8 Series catalogue, p. 1-6
HRF-HD8S111 Guard: Standard | Operation: Standard | Contacts: 1a+1b
HRF-HD8S112 Guard: Standard | Operation: Standard | Contacts: 2a
HRF-HD8S113 Guard: Standard | Operation: Standard | Contacts: 2a+2b
HRF-HD8S114 Guard: Standard | Operation: Standard | Contacts: 2b
HRF-HD8S211 Guard: Standard | Operation: 2-step (differential) | Contacts: 1a+1b
HRF-HD8S212 Guard: Standard | Operation: 2-step (differential) | Contacts: 2a
HRF-HD8S213 Guard: Standard | Operation: 2-step (differential) | Contacts: 2a+2b
HRF-HD8S214 Guard: Standard | Operation: 2-step (differential) | Contacts: 2b
HRF-HD8S311 Guard: Standard | Operation: Self-holding (latching) | Contacts: 1a+1b
HRF-HD8S312 Guard: Standard | Operation: Self-holding (latching) | Contacts: 2a
HRF-HD8S313 Guard: Standard | Operation: Self-holding (latching) | Contacts: 2a+2b
HRF-HD8S314 Guard: Standard | Operation: Self-holding (latching) | Contacts: 2b
HRF-HD8S811 Guard: Standard | Operation: Safety reset | Contacts: 1a+1b
HRF-HD8S812 Guard: Standard | Operation: Safety reset | Contacts: 2a
HRF-HD8S813 Guard: Standard | Operation: Safety reset | Contacts: 2a+2b
HRF-HD8S814 Guard: Standard | Operation: Safety reset | Contacts: 2b
HRF-HD8L111 Guard: Anti-misoperation lever | Operation: Standard | Contacts: 1a+1b
HRF-HD8L112 Guard: Anti-misoperation lever | Operation: Standard | Contacts: 2a
HRF-HD8L113 Guard: Anti-misoperation lever | Operation: Standard | Contacts: 2a+2b
HRF-HD8L114 Guard: Anti-misoperation lever | Operation: Standard | Contacts: 2b
HRF-HD8L211 Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 1a+1b
HRF-HD8L212 Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 2a
HRF-HD8L213 Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 2a+2b
HRF-HD8L214 Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 2b
HRF-HD8L311 Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 1a+1b
HRF-HD8L312 Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 2a
HRF-HD8L313 Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 2a+2b
HRF-HD8L314 Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 2b
HRF-HD8L811 Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 1a+1b
HRF-HD8L812 Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 2a
HRF-HD8L813 Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 2a+2b
HRF-HD8L814 Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 2b
Foot SwitchesKACON
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON HRF-HD8 Series Foot Switches (standard, latching, 2-step)

Brand KACON·Foot Switches

Available part numbers (32)

HRF-HD8S111, HRF-HD8S112, HRF-HD8S113, HRF-HD8S114, HRF-HD8S211, HRF-HD8S212, HRF-HD8S213, HRF-HD8S214, HRF-HD8S311, HRF-HD8S312 + 22 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRF-HD8S111Guard: Standard | Operation: Standard | Contacts: 1a+1b
HRF-HD8S112Guard: Standard | Operation: Standard | Contacts: 2a
HRF-HD8S113Guard: Standard | Operation: Standard | Contacts: 2a+2b
HRF-HD8S114Guard: Standard | Operation: Standard | Contacts: 2b
HRF-HD8S211Guard: Standard | Operation: 2-step (differential) | Contacts: 1a+1b
HRF-HD8S212Guard: Standard | Operation: 2-step (differential) | Contacts: 2a
HRF-HD8S213Guard: Standard | Operation: 2-step (differential) | Contacts: 2a+2b
HRF-HD8S214Guard: Standard | Operation: 2-step (differential) | Contacts: 2b
HRF-HD8S311Guard: Standard | Operation: Self-holding (latching) | Contacts: 1a+1b
HRF-HD8S312Guard: Standard | Operation: Self-holding (latching) | Contacts: 2a
HRF-HD8S313Guard: Standard | Operation: Self-holding (latching) | Contacts: 2a+2b
HRF-HD8S314Guard: Standard | Operation: Self-holding (latching) | Contacts: 2b
HRF-HD8S811Guard: Standard | Operation: Safety reset | Contacts: 1a+1b
HRF-HD8S812Guard: Standard | Operation: Safety reset | Contacts: 2a
HRF-HD8S813Guard: Standard | Operation: Safety reset | Contacts: 2a+2b
HRF-HD8S814Guard: Standard | Operation: Safety reset | Contacts: 2b
HRF-HD8L111Guard: Anti-misoperation lever | Operation: Standard | Contacts: 1a+1b
HRF-HD8L112Guard: Anti-misoperation lever | Operation: Standard | Contacts: 2a
HRF-HD8L113Guard: Anti-misoperation lever | Operation: Standard | Contacts: 2a+2b
HRF-HD8L114Guard: Anti-misoperation lever | Operation: Standard | Contacts: 2b
HRF-HD8L211Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 1a+1b
HRF-HD8L212Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 2a
HRF-HD8L213Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 2a+2b
HRF-HD8L214Guard: Anti-misoperation lever | Operation: 2-step (differential) | Contacts: 2b
HRF-HD8L311Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 1a+1b
HRF-HD8L312Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 2a
HRF-HD8L313Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 2a+2b
HRF-HD8L314Guard: Anti-misoperation lever | Operation: Self-holding (latching) | Contacts: 2b
HRF-HD8L811Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 1a+1b
HRF-HD8L812Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 2a
HRF-HD8L813Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 2a+2b
HRF-HD8L814Guard: Anti-misoperation lever | Operation: Safety reset | Contacts: 2b
