• KACON K25F/K30F Flush Push Button Switches (Ø25, Ø30)
1 1

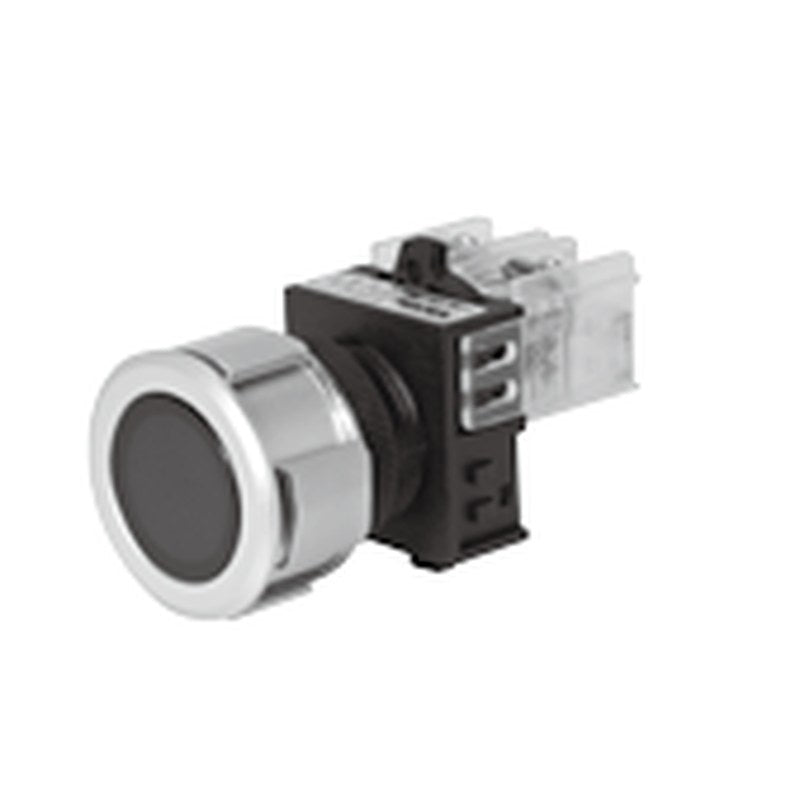

KACON K25F/K30F Flush Push Button Switches (Ø25, Ø30)

KACON K25F/K30F Flush Push Button Switches (Ø25, Ø30)

Flush-type non-illuminated and LED-illuminated push button switches of the KACON K25F/K30F series.

Key features

  • Momentary or maintained action
  • Non-illuminated or LED illuminated
  • 1NO contact block, modular contacts available
  • Six colours: red, green, yellow, blue, white, black
  • LED voltages 12/24VDC, 110VDC, 110VAC, 220VAC
  • Contacts rated 10A AC12 at 24-110V

Specifications

Bezel Flush, metal
Contact material Ag alloy
Ambient temperature -25 to +70°C
Panel thickness 0.5-4mm
Mounting torque 0.8N·m
Contacts 1N/O
Degree of protection IP54
Source KACON K25F K30F Series Flush Type Control Switch catalogue, p. 3-4
K25F-21R Size: Ø25 | Action: Momentary | Illumination: None | Colour: Red | Lamp voltage: N/A
K25F-21G Size: Ø25 | Action: Momentary | Illumination: None | Colour: Green | Lamp voltage: N/A
K25F-21Y Size: Ø25 | Action: Momentary | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K25F-21B Size: Ø25 | Action: Momentary | Illumination: None | Colour: Blue | Lamp voltage: N/A
K25F-21W Size: Ø25 | Action: Momentary | Illumination: None | Colour: White | Lamp voltage: N/A
K25F-21K Size: Ø25 | Action: Momentary | Illumination: None | Colour: Black | Lamp voltage: N/A
K30F-21R Size: Ø30 | Action: Momentary | Illumination: None | Colour: Red | Lamp voltage: N/A
K30F-21G Size: Ø30 | Action: Momentary | Illumination: None | Colour: Green | Lamp voltage: N/A
K30F-21Y Size: Ø30 | Action: Momentary | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K30F-21B Size: Ø30 | Action: Momentary | Illumination: None | Colour: Blue | Lamp voltage: N/A
K30F-21W Size: Ø30 | Action: Momentary | Illumination: None | Colour: White | Lamp voltage: N/A
K30F-21K Size: Ø30 | Action: Momentary | Illumination: None | Colour: Black | Lamp voltage: N/A
K25F-31R Size: Ø25 | Action: Maintained | Illumination: None | Colour: Red | Lamp voltage: N/A
K25F-31G Size: Ø25 | Action: Maintained | Illumination: None | Colour: Green | Lamp voltage: N/A
K25F-31Y Size: Ø25 | Action: Maintained | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K25F-31B Size: Ø25 | Action: Maintained | Illumination: None | Colour: Blue | Lamp voltage: N/A
K25F-31W Size: Ø25 | Action: Maintained | Illumination: None | Colour: White | Lamp voltage: N/A
K25F-31K Size: Ø25 | Action: Maintained | Illumination: None | Colour: Black | Lamp voltage: N/A
K30F-31R Size: Ø30 | Action: Maintained | Illumination: None | Colour: Red | Lamp voltage: N/A
K30F-31G Size: Ø30 | Action: Maintained | Illumination: None | Colour: Green | Lamp voltage: N/A
K30F-31Y Size: Ø30 | Action: Maintained | Illumination: None | Colour: Yellow | Lamp voltage: N/A
K30F-31B Size: Ø30 | Action: Maintained | Illumination: None | Colour: Blue | Lamp voltage: N/A
K30F-31W Size: Ø30 | Action: Maintained | Illumination: None | Colour: White | Lamp voltage: N/A
K30F-31K Size: Ø30 | Action: Maintained | Illumination: None | Colour: Black | Lamp voltage: N/A
K25F-27R Size: Ø25 | Action: Momentary | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27G Size: Ø25 | Action: Momentary | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27Y Size: Ø25 | Action: Momentary | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27B Size: Ø25 | Action: Momentary | Illumination: LED | Colour: Blue | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27W Size: Ø25 | Action: Momentary | Illumination: LED | Colour: White | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-27K Size: Ø25 | Action: Momentary | Illumination: LED | Colour: Black | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27R Size: Ø30 | Action: Momentary | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27G Size: Ø30 | Action: Momentary | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27Y Size: Ø30 | Action: Momentary | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27B Size: Ø30 | Action: Momentary | Illumination: LED | Colour: Blue | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27W Size: Ø30 | Action: Momentary | Illumination: LED | Colour: White | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-27K Size: Ø30 | Action: Momentary | Illumination: LED | Colour: Black | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-37R Size: Ø25 | Action: Maintained | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-37G Size: Ø25 | Action: Maintained | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-37Y Size: Ø25 | Action: Maintained | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-37B Size: Ø25 | Action: Maintained | Illumination: LED | Colour: Blue | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-37W Size: Ø25 | Action: Maintained | Illumination: LED | Colour: White | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K25F-37K Size: Ø25 | Action: Maintained | Illumination: LED | Colour: Black | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-37R Size: Ø30 | Action: Maintained | Illumination: LED | Colour: Red | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-37G Size: Ø30 | Action: Maintained | Illumination: LED | Colour: Green | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-37Y Size: Ø30 | Action: Maintained | Illumination: LED | Colour: Yellow | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-37B Size: Ø30 | Action: Maintained | Illumination: LED | Colour: Blue | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-37W Size: Ø30 | Action: Maintained | Illumination: LED | Colour: White | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
K30F-37K Size: Ø30 | Action: Maintained | Illumination: LED | Colour: Black | Lamp voltage: 12/24VDC, 110VDC, 110VAC, 220VAC
