• KACON KA-PG Series Cable Glands (PG7-PG48)
1 1

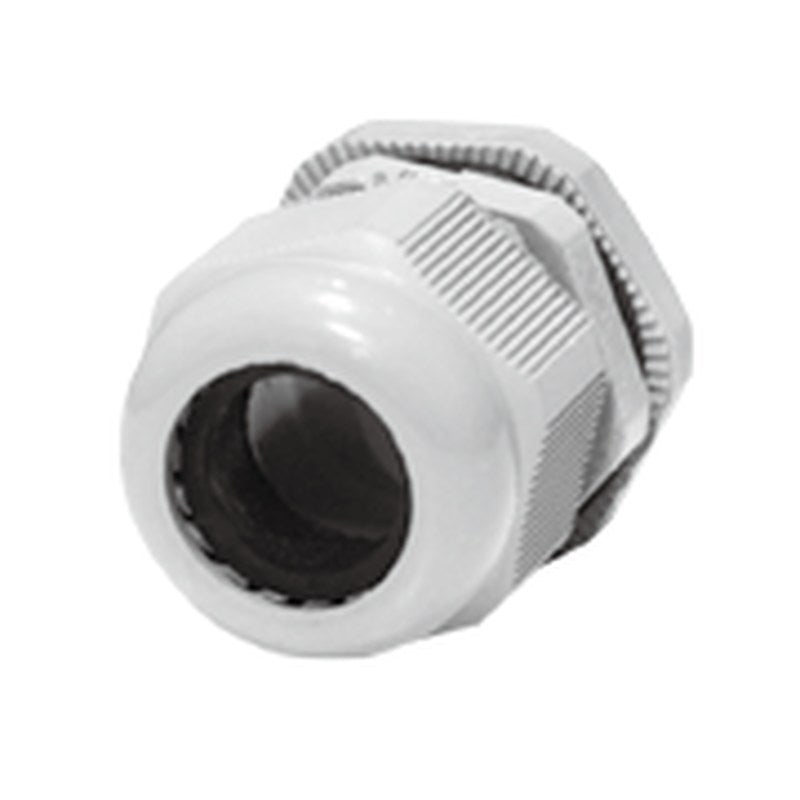

KACON KA-PG Series Cable Glands (PG7-PG48)

KACON KA-PG Series Cable Glands (PG7-PG48)

KACON KA-PG Series plastic cable glands for sealing cable entries into panels and enclosures, PG7 to PG48 sizes.

Key features

  • 13 PG sizes from PG7 to PG48 plus PF1/2 version
  • Cable clamping range from 3 mm to 44 mm
  • Gray, white and black colours
  • Matching hole sizes Ø12.5 to Ø59.3 mm
  • Clamping insert with sealing for cable entry

Specifications

Product Cable gland
Thread system PG (13.5A: PF1/2)
Size range PG7 to PG48
Cable range 3 to 44 mm
Colours Gray, White, Black
Dimension tolerance ±0.1 mm
Source KACON KA-PG Series catalogue, p. 1-2
KA-PG07G Thread size: PG07 | Hole size: Ø12.5 | Cable range: 3-6.5 mm | Colour: Gray
KA-PG07W Thread size: PG07 | Hole size: Ø12.5 | Cable range: 3-6.5 mm | Colour: White
KA-PG07B Thread size: PG07 | Hole size: Ø12.5 | Cable range: 3-6.5 mm | Colour: Black
KA-PG09G Thread size: PG09 | Hole size: Ø15.2 | Cable range: 4-8 mm | Colour: Gray
KA-PG09W Thread size: PG09 | Hole size: Ø15.2 | Cable range: 4-8 mm | Colour: White
KA-PG09B Thread size: PG09 | Hole size: Ø15.2 | Cable range: 4-8 mm | Colour: Black
KA-PG11G Thread size: PG11 | Hole size: Ø18.6 | Cable range: 5-10 mm | Colour: Gray
KA-PG11W Thread size: PG11 | Hole size: Ø18.6 | Cable range: 5-10 mm | Colour: White
KA-PG11B Thread size: PG11 | Hole size: Ø18.6 | Cable range: 5-10 mm | Colour: Black
KA-PG13.5G Thread size: PG13.5 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: Gray
KA-PG13.5W Thread size: PG13.5 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: White
KA-PG13.5B Thread size: PG13.5 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: Black
KA-PG16G Thread size: PG16 | Hole size: Ø22.5 | Cable range: 10-14 mm | Colour: Gray
KA-PG16W Thread size: PG16 | Hole size: Ø22.5 | Cable range: 10-14 mm | Colour: White
KA-PG16B Thread size: PG16 | Hole size: Ø22.5 | Cable range: 10-14 mm | Colour: Black
KA-PG18G Thread size: PG18 | Hole size: Ø24.0 | Cable range: 11-15 mm | Colour: Gray
KA-PG18W Thread size: PG18 | Hole size: Ø24.0 | Cable range: 11-15 mm | Colour: White
KA-PG18B Thread size: PG18 | Hole size: Ø24.0 | Cable range: 11-15 mm | Colour: Black
KA-PG21G Thread size: PG21 | Hole size: Ø28.3 | Cable range: 13-18 mm | Colour: Gray
KA-PG21W Thread size: PG21 | Hole size: Ø28.3 | Cable range: 13-18 mm | Colour: White
KA-PG21B Thread size: PG21 | Hole size: Ø28.3 | Cable range: 13-18 mm | Colour: Black
KA-PG25G Thread size: PG25 | Hole size: Ø30.0 | Cable range: 15-20 mm | Colour: Gray
KA-PG25W Thread size: PG25 | Hole size: Ø30.0 | Cable range: 15-20 mm | Colour: White
KA-PG25B Thread size: PG25 | Hole size: Ø30.0 | Cable range: 15-20 mm | Colour: Black
KA-PG27G Thread size: PG27 | Hole size: Ø33 | Cable range: 16-22 mm | Colour: Gray
KA-PG27W Thread size: PG27 | Hole size: Ø33 | Cable range: 16-22 mm | Colour: White
KA-PG27B Thread size: PG27 | Hole size: Ø33 | Cable range: 16-22 mm | Colour: Black
KA-PG29G Thread size: PG29 | Hole size: Ø37.0 | Cable range: 18-25 mm | Colour: Gray
KA-PG29W Thread size: PG29 | Hole size: Ø37.0 | Cable range: 18-25 mm | Colour: White
KA-PG29B Thread size: PG29 | Hole size: Ø37.0 | Cable range: 18-25 mm | Colour: Black
KA-PG36G Thread size: PG36 | Hole size: Ø47.0 | Cable range: 22-32 mm | Colour: Gray
KA-PG36W Thread size: PG36 | Hole size: Ø47.0 | Cable range: 22-32 mm | Colour: White
KA-PG36B Thread size: PG36 | Hole size: Ø47.0 | Cable range: 22-32 mm | Colour: Black
KA-PG42G Thread size: PG42 | Hole size: Ø54.0 | Cable range: 30-38 mm | Colour: Gray
KA-PG42W Thread size: PG42 | Hole size: Ø54.0 | Cable range: 30-38 mm | Colour: White
KA-PG42B Thread size: PG42 | Hole size: Ø54.0 | Cable range: 30-38 mm | Colour: Black
KA-PG48G Thread size: PG48 | Hole size: Ø59.3 | Cable range: 34-44 mm | Colour: Gray
KA-PG48W Thread size: PG48 | Hole size: Ø59.3 | Cable range: 34-44 mm | Colour: White
KA-PG48B Thread size: PG48 | Hole size: Ø59.3 | Cable range: 34-44 mm | Colour: Black
KA-PG13.5A Thread size: PF1/2 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: Gray, White, Black
Cable GlandsKACON
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KA-PG Series Cable Glands (PG7-PG48)

Brand KACON·Cable Glands

Available part numbers (40)

KA-PG07G, KA-PG07W, KA-PG07B, KA-PG09G, KA-PG09W, KA-PG09B, KA-PG11G, KA-PG11W, KA-PG11B, KA-PG13.5G + 30 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KA-PG07GThread size: PG07 | Hole size: Ø12.5 | Cable range: 3-6.5 mm | Colour: Gray
KA-PG07WThread size: PG07 | Hole size: Ø12.5 | Cable range: 3-6.5 mm | Colour: White
KA-PG07BThread size: PG07 | Hole size: Ø12.5 | Cable range: 3-6.5 mm | Colour: Black
KA-PG09GThread size: PG09 | Hole size: Ø15.2 | Cable range: 4-8 mm | Colour: Gray
KA-PG09WThread size: PG09 | Hole size: Ø15.2 | Cable range: 4-8 mm | Colour: White
KA-PG09BThread size: PG09 | Hole size: Ø15.2 | Cable range: 4-8 mm | Colour: Black
KA-PG11GThread size: PG11 | Hole size: Ø18.6 | Cable range: 5-10 mm | Colour: Gray
KA-PG11WThread size: PG11 | Hole size: Ø18.6 | Cable range: 5-10 mm | Colour: White
KA-PG11BThread size: PG11 | Hole size: Ø18.6 | Cable range: 5-10 mm | Colour: Black
KA-PG13.5GThread size: PG13.5 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: Gray
KA-PG13.5WThread size: PG13.5 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: White
KA-PG13.5BThread size: PG13.5 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: Black
KA-PG16GThread size: PG16 | Hole size: Ø22.5 | Cable range: 10-14 mm | Colour: Gray
KA-PG16WThread size: PG16 | Hole size: Ø22.5 | Cable range: 10-14 mm | Colour: White
KA-PG16BThread size: PG16 | Hole size: Ø22.5 | Cable range: 10-14 mm | Colour: Black
KA-PG18GThread size: PG18 | Hole size: Ø24.0 | Cable range: 11-15 mm | Colour: Gray
KA-PG18WThread size: PG18 | Hole size: Ø24.0 | Cable range: 11-15 mm | Colour: White
KA-PG18BThread size: PG18 | Hole size: Ø24.0 | Cable range: 11-15 mm | Colour: Black
KA-PG21GThread size: PG21 | Hole size: Ø28.3 | Cable range: 13-18 mm | Colour: Gray
KA-PG21WThread size: PG21 | Hole size: Ø28.3 | Cable range: 13-18 mm | Colour: White
KA-PG21BThread size: PG21 | Hole size: Ø28.3 | Cable range: 13-18 mm | Colour: Black
KA-PG25GThread size: PG25 | Hole size: Ø30.0 | Cable range: 15-20 mm | Colour: Gray
KA-PG25WThread size: PG25 | Hole size: Ø30.0 | Cable range: 15-20 mm | Colour: White
KA-PG25BThread size: PG25 | Hole size: Ø30.0 | Cable range: 15-20 mm | Colour: Black
KA-PG27GThread size: PG27 | Hole size: Ø33 | Cable range: 16-22 mm | Colour: Gray
KA-PG27WThread size: PG27 | Hole size: Ø33 | Cable range: 16-22 mm | Colour: White
KA-PG27BThread size: PG27 | Hole size: Ø33 | Cable range: 16-22 mm | Colour: Black
KA-PG29GThread size: PG29 | Hole size: Ø37.0 | Cable range: 18-25 mm | Colour: Gray
KA-PG29WThread size: PG29 | Hole size: Ø37.0 | Cable range: 18-25 mm | Colour: White
KA-PG29BThread size: PG29 | Hole size: Ø37.0 | Cable range: 18-25 mm | Colour: Black
KA-PG36GThread size: PG36 | Hole size: Ø47.0 | Cable range: 22-32 mm | Colour: Gray
KA-PG36WThread size: PG36 | Hole size: Ø47.0 | Cable range: 22-32 mm | Colour: White
KA-PG36BThread size: PG36 | Hole size: Ø47.0 | Cable range: 22-32 mm | Colour: Black
KA-PG42GThread size: PG42 | Hole size: Ø54.0 | Cable range: 30-38 mm | Colour: Gray
KA-PG42WThread size: PG42 | Hole size: Ø54.0 | Cable range: 30-38 mm | Colour: White
KA-PG42BThread size: PG42 | Hole size: Ø54.0 | Cable range: 30-38 mm | Colour: Black
KA-PG48GThread size: PG48 | Hole size: Ø59.3 | Cable range: 34-44 mm | Colour: Gray
KA-PG48WThread size: PG48 | Hole size: Ø59.3 | Cable range: 34-44 mm | Colour: White
KA-PG48BThread size: PG48 | Hole size: Ø59.3 | Cable range: 34-44 mm | Colour: Black
KA-PG13.5AThread size: PF1/2 | Hole size: Ø20.4 | Cable range: 6-12 mm | Colour: Gray, White, Black
