• KACON KCL-L Series LED Panel Lamps (250/330/400 mm)
1 1

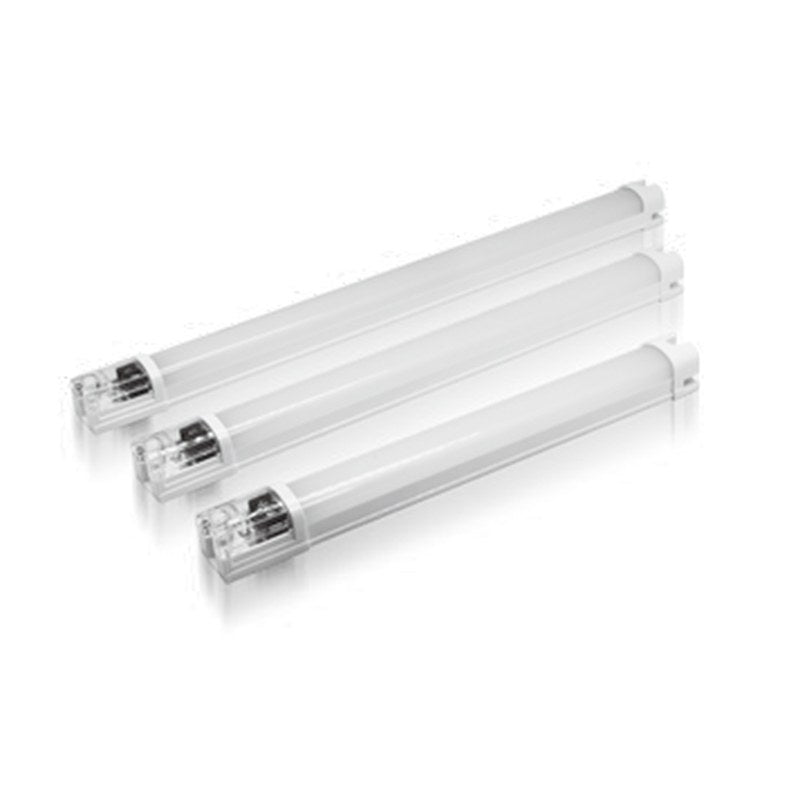

KACON KCL-L Series LED Panel Lamps (250/330/400 mm)

KACON KCL-L Series LED Panel Lamps (250/330/400 mm)

KACON KCL-L Series linear LED lamps for lighting control panels and machine enclosures, in 250, 330 and 400 mm lengths.

Key features

  • LED lengths 250, 330 and 400 mm (150/200/280 lx at 1 m)
  • AC 100-240VAC or non-polar 12-24VDC versions
  • Daylight colour 6,500 K with translucent diffusion lens
  • Supplied with 2 stainless mounting brackets and M4 bolts
  • Optional KCL-MG magnet mounting kit
  • 50,000-hour LED life

Specifications

LED colour Daylight 6,500 K
Lens Translucent
Insulation resistance 100MΩ min. (500VDC)
Dielectric strength 2,000VAC 1 minute
Ambient temperature -20 to +70 °C
Material PC housing, SUS bracket
Terminal M3.5 bolt
LED life 50,000 hours
Certification CE, KC
Source KACON KCL-L LED Lamp catalogue, p. 1
KCL-L250A Type: LED lamp | LED length: 250 mm | Voltage: 100-240VAC | Brightness at 1m: 150 lx
KCL-L250D Type: LED lamp | LED length: 250 mm | Voltage: 12-24VDC (non-polar) | Brightness at 1m: 150 lx
KCL-L330A Type: LED lamp | LED length: 330 mm | Voltage: 100-240VAC | Brightness at 1m: 200 lx
KCL-L330D Type: LED lamp | LED length: 330 mm | Voltage: 12-24VDC (non-polar) | Brightness at 1m: 200 lx
KCL-L400A Type: LED lamp | LED length: 400 mm | Voltage: 100-240VAC | Brightness at 1m: 280 lx
KCL-L400D Type: LED lamp | LED length: 400 mm | Voltage: 12-24VDC (non-polar) | Brightness at 1m: 280 lx
KCL-MG Type: Option: magnet mounting kit | LED length: - | Voltage: - | Brightness at 1m: -
LED LampsKACON
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KCL-L Series LED Panel Lamps (250/330/400 mm)

Brand KACON·LED Lamps

Available part numbers (7)

KCL-L250A, KCL-L250D, KCL-L330A, KCL-L330D, KCL-L400A, KCL-L400D, KCL-MG

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KCL-L250AType: LED lamp | LED length: 250 mm | Voltage: 100-240VAC | Brightness at 1m: 150 lx
KCL-L250DType: LED lamp | LED length: 250 mm | Voltage: 12-24VDC (non-polar) | Brightness at 1m: 150 lx
KCL-L330AType: LED lamp | LED length: 330 mm | Voltage: 100-240VAC | Brightness at 1m: 200 lx
KCL-L330DType: LED lamp | LED length: 330 mm | Voltage: 12-24VDC (non-polar) | Brightness at 1m: 200 lx
KCL-L400AType: LED lamp | LED length: 400 mm | Voltage: 100-240VAC | Brightness at 1m: 280 lx
KCL-L400DType: LED lamp | LED length: 400 mm | Voltage: 12-24VDC (non-polar) | Brightness at 1m: 280 lx
KCL-MGType: Option: magnet mounting kit | LED length: - | Voltage: - | Brightness at 1m: -
