KACON KL Series Limit Switches (KLS, KLL, KLM)

KACON KL Series Limit Switches (KLS, KLL, KLM)

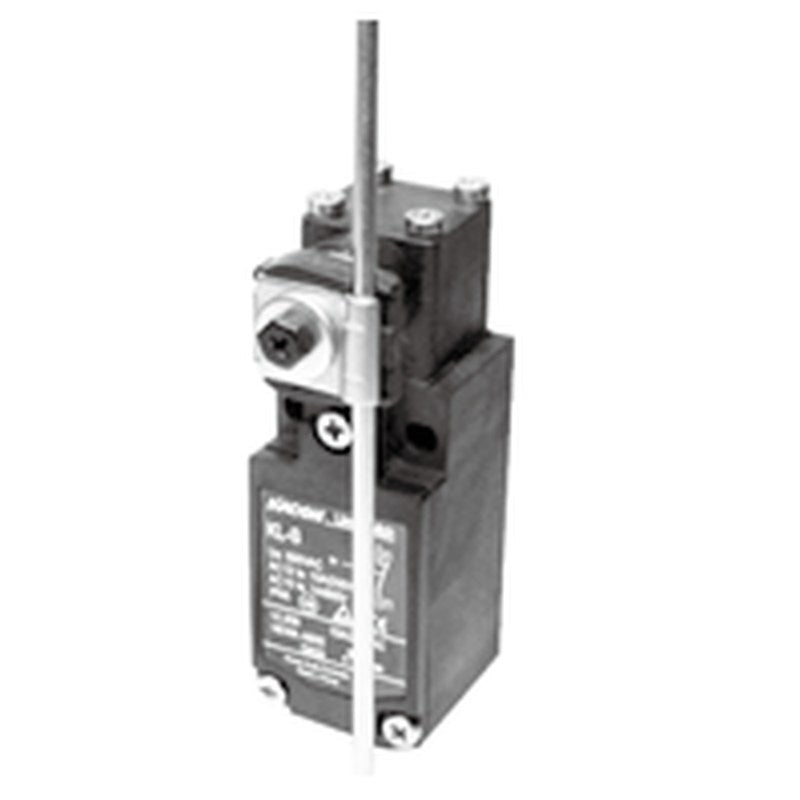

KACON KL series limit switches in KLS, KLL and KLM body styles with six plunger and lever actuator heads.

Key features

  • Three body styles: KLS, KLL and KLM (metal cover)
  • Push/roller/roller-lever plungers, roller lever, adjustable rod and roller levers
  • 1N/O + 1N/C contacts, 10A 250VAC resistive
  • Pg13.5 cable entry
  • Head direction adjustable in 4 directions

Specifications

Contacts 1N/O + 1N/C
Contact material Ag alloy
Contact rating 10A 250VAC (resistive)
Mechanical life Min. 1,000,000 operations
Electrical life Min. 500,000 operations
Cable entry Pg13.5
Ambient temperature -25 to +80°C (no icing)
Certification KC 60947-5-1
Source KACON Metal Cover KXL, ELN, E1, KLM Series catalogue, p. 15-22
KLS-A-P1 Body: KLS (standard body) | Actuator: Push plunger
KLS-A-P2 Body: KLS (standard body) | Actuator: Roller plunger
KLS-A-L1 Body: KLS (standard body) | Actuator: Roller lever plunger
KLS-A-L2 Body: KLS (standard body) | Actuator: Roller lever
KLS-A-L4 Body: KLS (standard body) | Actuator: Adjustable rod lever
KLS-A-L3 Body: KLS (standard body) | Actuator: Adjustable roller lever
KLL-A-P1 Body: KLL (2-hole flange body) | Actuator: Push plunger
KLL-A-P2 Body: KLL (2-hole flange body) | Actuator: Roller plunger
KLL-A-L1 Body: KLL (2-hole flange body) | Actuator: Roller lever plunger
KLL-A-L2 Body: KLL (2-hole flange body) | Actuator: Roller lever
KLL-A-L4 Body: KLL (2-hole flange body) | Actuator: Adjustable rod lever
KLL-A-L3 Body: KLL (2-hole flange body) | Actuator: Adjustable roller lever
KLM-A-P1 Body: KLM (metal body) | Actuator: Push plunger
KLM-A-P2 Body: KLM (metal body) | Actuator: Roller plunger
KLM-A-L1 Body: KLM (metal body) | Actuator: Roller lever plunger
KLM-A-L2 Body: KLM (metal body) | Actuator: Roller lever
KLM-A-L4 Body: KLM (metal body) | Actuator: Adjustable rod lever
KLM-A-L3 Body: KLM (metal body) | Actuator: Adjustable roller lever
Limit SwitchesKACON
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KL Series Limit Switches (KLS, KLL, KLM)

Brand KACON·Limit Switches

Available part numbers (18)

KLS-A-P1, KLS-A-P2, KLS-A-L1, KLS-A-L2, KLS-A-L4, KLS-A-L3, KLL-A-P1, KLL-A-P2, KLL-A-L1, KLL-A-L2 + 8 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KLS-A-P1Body: KLS (standard body) | Actuator: Push plunger
KLS-A-P2Body: KLS (standard body) | Actuator: Roller plunger
KLS-A-L1Body: KLS (standard body) | Actuator: Roller lever plunger
KLS-A-L2Body: KLS (standard body) | Actuator: Roller lever
KLS-A-L4Body: KLS (standard body) | Actuator: Adjustable rod lever
KLS-A-L3Body: KLS (standard body) | Actuator: Adjustable roller lever
KLL-A-P1Body: KLL (2-hole flange body) | Actuator: Push plunger
KLL-A-P2Body: KLL (2-hole flange body) | Actuator: Roller plunger
KLL-A-L1Body: KLL (2-hole flange body) | Actuator: Roller lever plunger
KLL-A-L2Body: KLL (2-hole flange body) | Actuator: Roller lever
KLL-A-L4Body: KLL (2-hole flange body) | Actuator: Adjustable rod lever
KLL-A-L3Body: KLL (2-hole flange body) | Actuator: Adjustable roller lever
KLM-A-P1Body: KLM (metal body) | Actuator: Push plunger
KLM-A-P2Body: KLM (metal body) | Actuator: Roller plunger
KLM-A-L1Body: KLM (metal body) | Actuator: Roller lever plunger
KLM-A-L2Body: KLM (metal body) | Actuator: Roller lever
KLM-A-L4Body: KLM (metal body) | Actuator: Adjustable rod lever
KLM-A-L3Body: KLM (metal body) | Actuator: Adjustable roller lever
