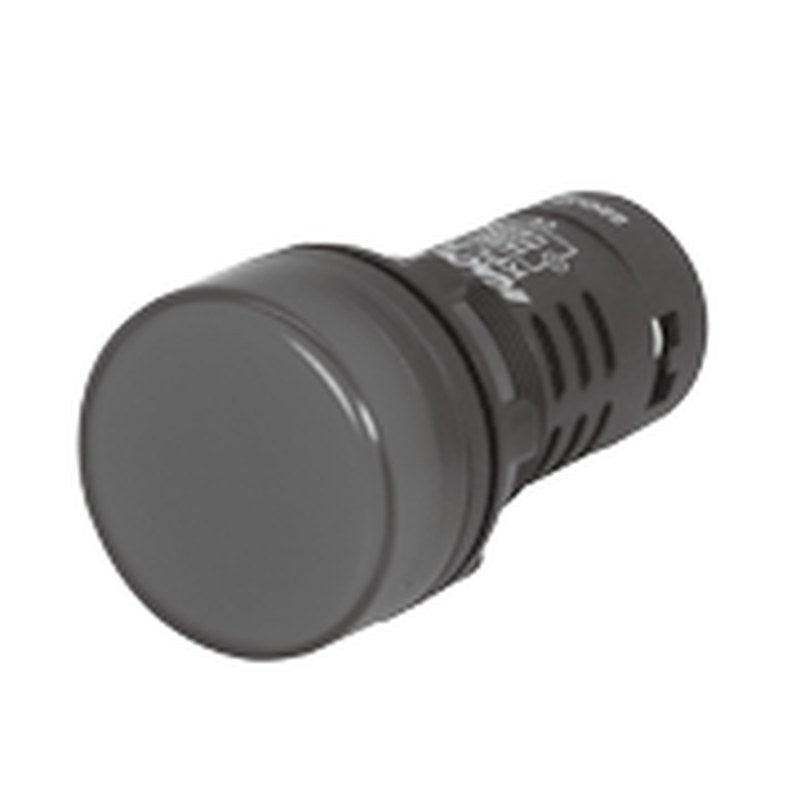

KACON KPL Series LED Pilot Lamps (Ø22/Ø25)

KACON KPL Series compact one-piece LED pilot lamps that fit both Ø22 and Ø25 mm panel holes.

Key features

One-piece round LED pilot lamp
Fits Ø22.5 or Ø25.5 mm panel cut-out
Red, green, yellow, blue and white lenses
Supply voltage 12VAC/DC, 24VAC/DC, 110VAC, 220VAC or 110VDC (specify on order)
50,000-hour LED life
Lightweight 24 g body

Specifications

Type	Round pilot lamp for Ø22/Ø25
Lamp	LED
Current consumption	20mA
Supply voltage	12VAC/DC, 24VAC/DC, 110VAC, 220VAC, 110VDC
Insulation resistance	100MΩ (500VDC)
Ambient temperature	-25 to +55 °C
Life	50,000 hours
Weight	24 g
Certification	CE, CCC
Source	KACON Pilot Lamp Series catalogue, p. 2

KPL-R		Colour: Red
KPL-G		Colour: Green
KPL-Y		Colour: Yellow
KPL-B		Colour: Blue
KPL-W		Colour: White

Pilot LampsKACON

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KPL Series LED Pilot Lamps (Ø22/Ø25)

Brand KACON·Pilot Lamps

Available part numbers (5)

KPL-R, KPL-G, KPL-Y, KPL-B, KPL-W
