KACON KPX / KYF / KPY Push-in Socket Short Bars & Surge Modules

KACON KPX / KYF / KPY Push-in Socket Short Bars & Surge Modules

Plug-in short bars and coil surge-protection modules (diode, varistor) for KACON KPX and KYF push-in relay sockets.

Key features

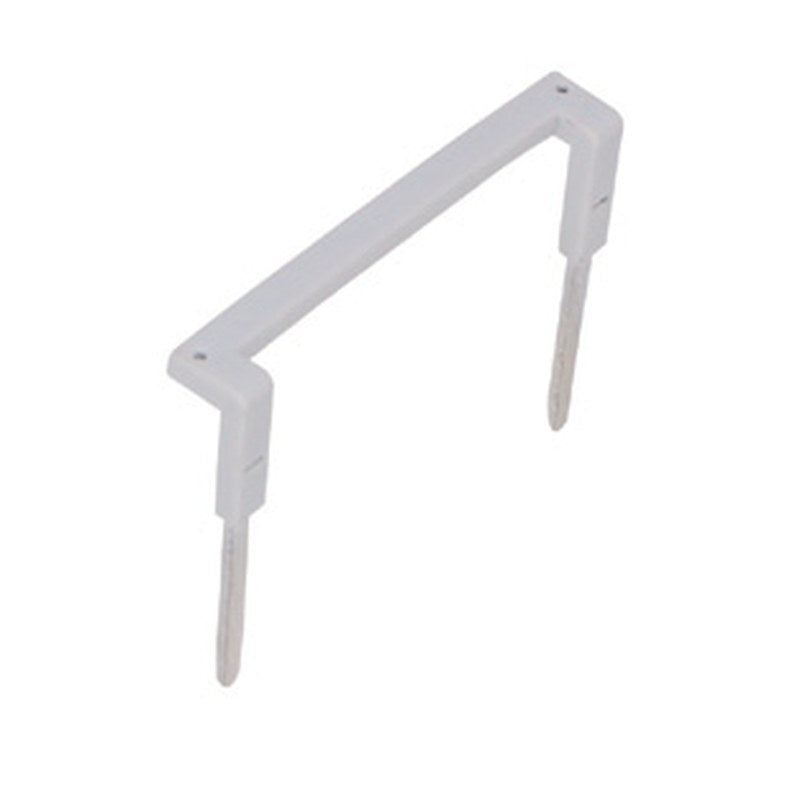

  • 15mm (KPX-S02) and 30mm (KYF-S02) short bars in clear, black, red and blue
  • KPX-S20C coil short bar for A2 terminals
  • KPY-D diode module, 6-230VDC
  • KPY-M varistor modules for 24, 110 and 220V AC/DC coils
  • Plug into the socket option terminals without extra wiring

Specifications

Compatible sockets KPX-05/08-PU, KYF-08/14-PU
Mounting Plug-in to socket
Short bar colours C clear, K black, R red, B blue
Module size 11.7 x 31.3 x 12.7 mm
Short bar height 21.5mm
Application Common wiring / coil surge protection
Source KACON Push-in Plus Socket catalogue, p. 6
KPX-S02C Type: Short bar 15mm | Colour: Clear | Function: Bridges coil / contact terminals
KPX-S02K Type: Short bar 15mm | Colour: Black | Function: Bridges coil / contact terminals
KPX-S02R Type: Short bar 15mm | Colour: Red | Function: Bridges coil / contact terminals
KPX-S02B Type: Short bar 15mm | Colour: Blue | Function: Bridges coil / contact terminals
KYF-S02C Type: Short bar 30mm | Colour: Clear | Function: Bridges coil / contact terminals
KYF-S02K Type: Short bar 30mm | Colour: Black | Function: Bridges coil / contact terminals
KYF-S02R Type: Short bar 30mm | Colour: Red | Function: Bridges coil / contact terminals
KYF-S02B Type: Short bar 30mm | Colour: Blue | Function: Bridges coil / contact terminals
KPX-S20C Type: Coil short bar | Colour: Clear | Function: Bridges A2 coil terminals
KPY-D Type: Diode module | Voltage: 6-230VDC | Function: Coil surge protection
KPY-M1 Type: Varistor module | Voltage: 24VDC/AC | Function: Coil surge protection
KPY-M2 Type: Varistor module | Voltage: 110VDC/AC | Function: Coil surge protection
KPY-M3 Type: Varistor module | Voltage: 220VDC/AC | Function: Coil surge protection
Relay Socket AccessoriesKACON
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KPX / KYF / KPY Push-in Socket Short Bars & Surge Modules

Brand KACON·Relay Socket Accessories

Available part numbers (13)

KPX-S02C, KPX-S02K, KPX-S02R, KPX-S02B, KYF-S02C, KYF-S02K, KYF-S02R, KYF-S02B, KPX-S20C, KPY-D + 3 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
