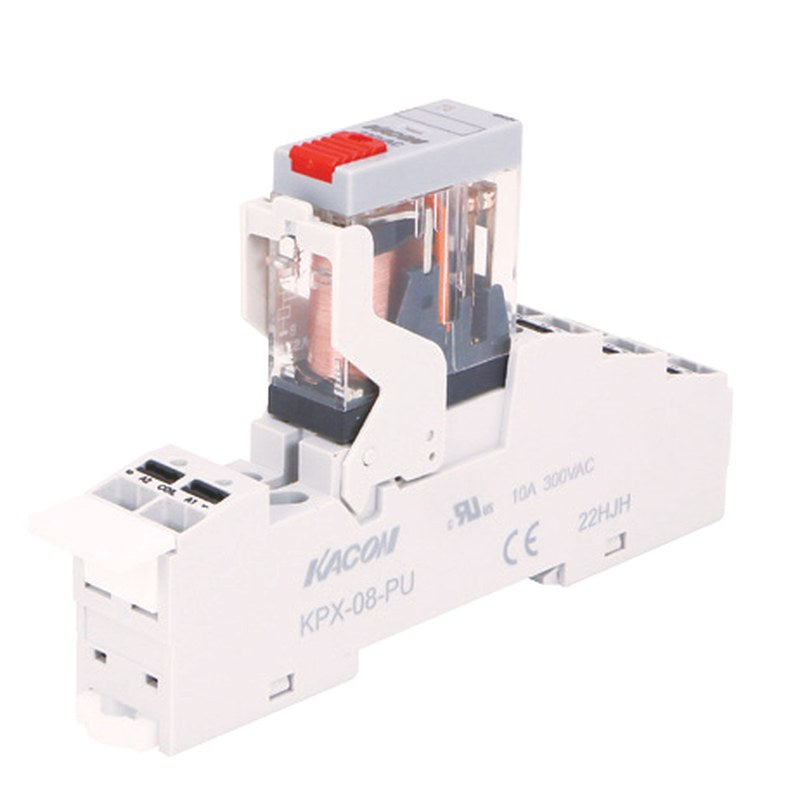

KACON KPX / KYF Push-in Plus Relay Sockets (K706, K705)

KACON KPX / KYF Push-in Plus Relay Sockets (K706, K705)

DIN-rail relay sockets with Push-In Plus terminals, test holes, release buttons and coil short-bar holes for K706 and K705 relays.

Key features

  • Push-in terminals for solid wire or ferrules; release button for removal
  • Separate test hole for measurement without disconnecting wires
  • A2 coil short-bar hole for simple common-supply wiring
  • Option slot for LED, diode and varistor modules
  • Relay release lever and name plate
  • 2,500VAC dielectric strength, 2,000Mohm insulation

Specifications

Rated voltage 300V
Dielectric strength 2500VAC 1 min
Insulation resistance 2,000Mohm min. (500VDC)
Wire 0.5-2.5 mm2 (21-14 AWG)
Strip length 8mm
Ambient temperature -40 to +85 C
Body material PA6, flame retardant V2
Source KACON Push-in Plus Socket catalogue, p. 2-5
KPX-05-PU Rated current: 16A | Width: 16mm | Relay: K706-1PL
KPX-08-PU Rated current: 10A | Width: 16mm | Relay: K706-2PL
KYF-08-PU Rated current: 12A | Width: 30.8mm | Relay: K705-2PL / 505-2PL / HR705-2P
KYF-14-PU Rated current: 8A | Width: 30.8mm | Relay: K705-4PL / 505-4PL / HR705-4P
Relay SocketsKACON
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KPX / KYF Push-in Plus Relay Sockets (K706, K705)

Brand KACON·Relay Sockets

Available part numbers (4)

KPX-05-PU, KPX-08-PU, KYF-08-PU, KYF-14-PU

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPX-05-PURated current: 16A | Width: 16mm | Relay: K706-1PL
KPX-08-PURated current: 10A | Width: 16mm | Relay: K706-2PL
KYF-08-PURated current: 12A | Width: 30.8mm | Relay: K705-2PL / 505-2PL / HR705-2P
KYF-14-PURated current: 8A | Width: 30.8mm | Relay: K705-4PL / 505-4PL / HR705-4P
