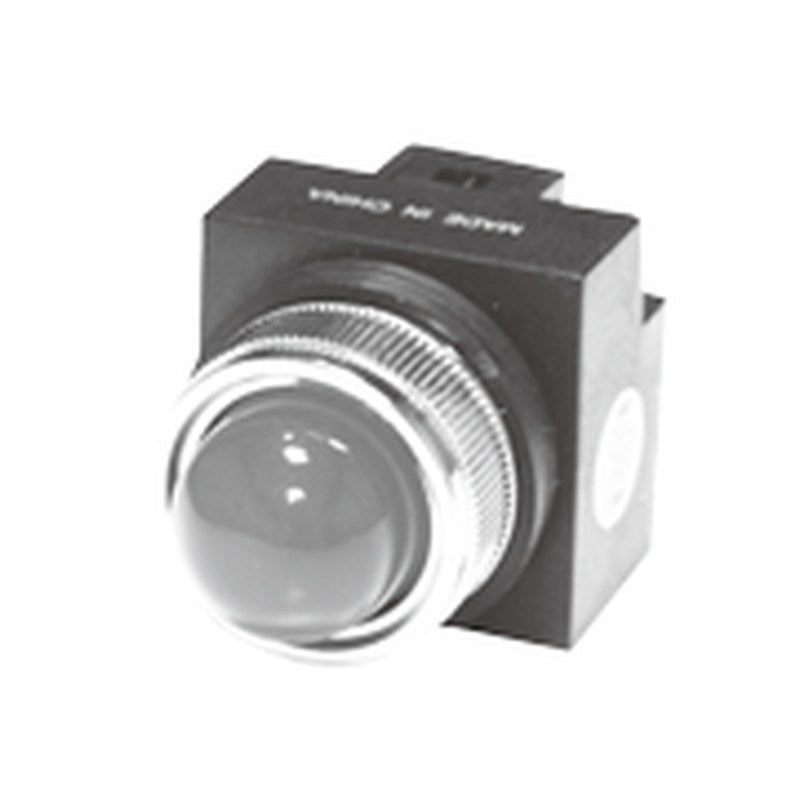

KACON KR Series LED Pilot Lamps (Ø25/Ø30)

KACON KR Series LED pilot lamps for Ø25 and Ø30 mm panel cut-outs, available in four supply voltages and four lens colours.

Key features

LED illumination with 50,000-hour life
Ø25.5 and Ø30.5 mm panel cut-outs
Supply voltages 24VAC/DC, 100-125VAC/DC, 200-240VAC and 380-440VAC
Red, green, yellow and white lenses
Wide ambient range -35 to +85 °C
M3.5 screw terminals

Specifications

Lamp	LED
Current consumption	20mA
Insulation resistance	100MΩ (500VDC)
Ambient temperature	-35 to +85 °C
Life	50,000 hours
Weight	34 g
Tightening torque	0.8 N·m
Terminals	2 x M3.5
Certification	CE
Source	KACON Pilot Lamp Series catalogue, p. 1

KR254R		Size: Ø25 mm \| Supply voltage: 24VAC/DC \| Colour: Red
KR254G		Size: Ø25 mm \| Supply voltage: 24VAC/DC \| Colour: Green
KR254Y		Size: Ø25 mm \| Supply voltage: 24VAC/DC \| Colour: Yellow
KR254W		Size: Ø25 mm \| Supply voltage: 24VAC/DC \| Colour: White
KR251R		Size: Ø25 mm \| Supply voltage: 100/125VAC/DC \| Colour: Red
KR251G		Size: Ø25 mm \| Supply voltage: 100/125VAC/DC \| Colour: Green
KR251Y		Size: Ø25 mm \| Supply voltage: 100/125VAC/DC \| Colour: Yellow
KR251W		Size: Ø25 mm \| Supply voltage: 100/125VAC/DC \| Colour: White
KR252R		Size: Ø25 mm \| Supply voltage: 200/240VAC \| Colour: Red
KR252G		Size: Ø25 mm \| Supply voltage: 200/240VAC \| Colour: Green
KR252Y		Size: Ø25 mm \| Supply voltage: 200/240VAC \| Colour: Yellow
KR252W		Size: Ø25 mm \| Supply voltage: 200/240VAC \| Colour: White
KR253R		Size: Ø25 mm \| Supply voltage: 380/440VAC \| Colour: Red
KR253G		Size: Ø25 mm \| Supply voltage: 380/440VAC \| Colour: Green
KR253Y		Size: Ø25 mm \| Supply voltage: 380/440VAC \| Colour: Yellow
KR253W		Size: Ø25 mm \| Supply voltage: 380/440VAC \| Colour: White
KR304R		Size: Ø30 mm \| Supply voltage: 24VAC/DC \| Colour: Red
KR304G		Size: Ø30 mm \| Supply voltage: 24VAC/DC \| Colour: Green
KR304Y		Size: Ø30 mm \| Supply voltage: 24VAC/DC \| Colour: Yellow
KR304W		Size: Ø30 mm \| Supply voltage: 24VAC/DC \| Colour: White
KR301R		Size: Ø30 mm \| Supply voltage: 100/125VAC/DC \| Colour: Red
KR301G		Size: Ø30 mm \| Supply voltage: 100/125VAC/DC \| Colour: Green
KR301Y		Size: Ø30 mm \| Supply voltage: 100/125VAC/DC \| Colour: Yellow
KR301W		Size: Ø30 mm \| Supply voltage: 100/125VAC/DC \| Colour: White
KR302R		Size: Ø30 mm \| Supply voltage: 200/240VAC \| Colour: Red
KR302G		Size: Ø30 mm \| Supply voltage: 200/240VAC \| Colour: Green
KR302Y		Size: Ø30 mm \| Supply voltage: 200/240VAC \| Colour: Yellow
KR302W		Size: Ø30 mm \| Supply voltage: 200/240VAC \| Colour: White
KR303R		Size: Ø30 mm \| Supply voltage: 380/440VAC \| Colour: Red
KR303G		Size: Ø30 mm \| Supply voltage: 380/440VAC \| Colour: Green
KR303Y		Size: Ø30 mm \| Supply voltage: 380/440VAC \| Colour: Yellow
KR303W		Size: Ø30 mm \| Supply voltage: 380/440VAC \| Colour: White
