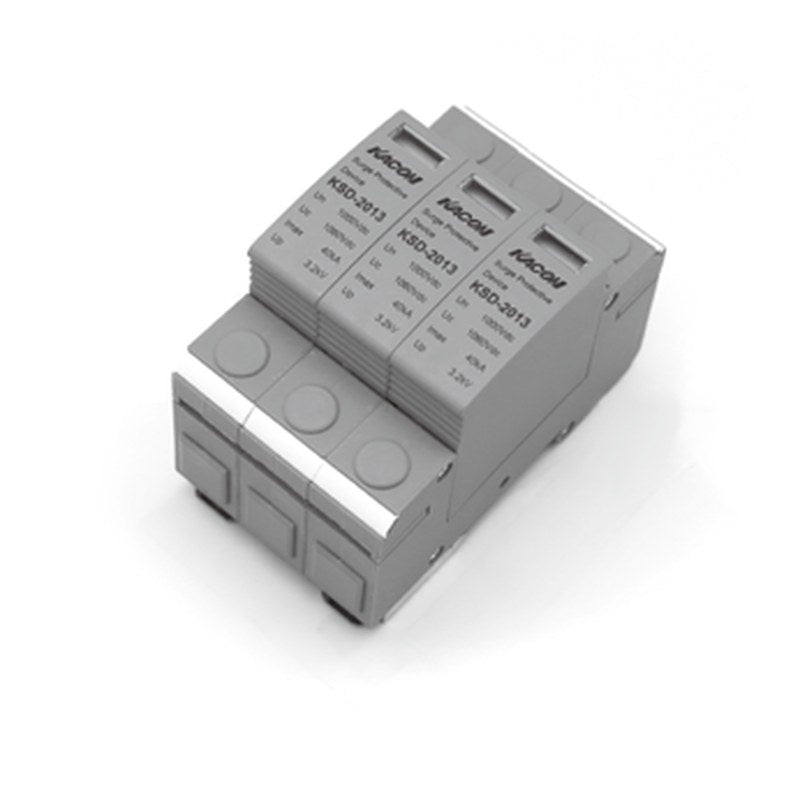

KACON KSD-2013 Solar DC Surge Protector 1,000VDC (20kA / 40kA)

DIN-rail DC surge protective device for 1,000VDC photovoltaic systems with status indicator and remote signalling contact.

Key features

Rated 1,000VDC, Uc 1,060VDC
Protection level 3.2kV or less
20kA nominal / 40kA max. discharge current
Green / red status indicator and 1C auxiliary contact
35mm DIN rail mounting, IEC 61643-11

Specifications

Rated voltage	1000VDC
Max. continuous voltage	1060VDC
Protection level	3.2kV or less
Nominal discharge current	20kA
Max. discharge current	40kA
Mounting	35mm DIN rail
Indicator	Green normal / red trip
Auxiliary contact	1C 250VAC 0.5A / 60VDC 0.1A
Ambient temperature	-40 to 70 C
Standard	IEC 61643-11
Source	KACON 1,000VDC Solar Purpose KFS KF KSD Series catalogue, p. 5

KSD-2013

Rated voltage: 1000VDC | Protection level: 3.2kV or less | Imax: 40kA

Surge ProtectorsKACON

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KSD-2013 Solar DC Surge Protector 1,000VDC (20kA / 40kA)

Brand KACON·Surge Protectors

Available part numbers (1)

KSD-2013

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
