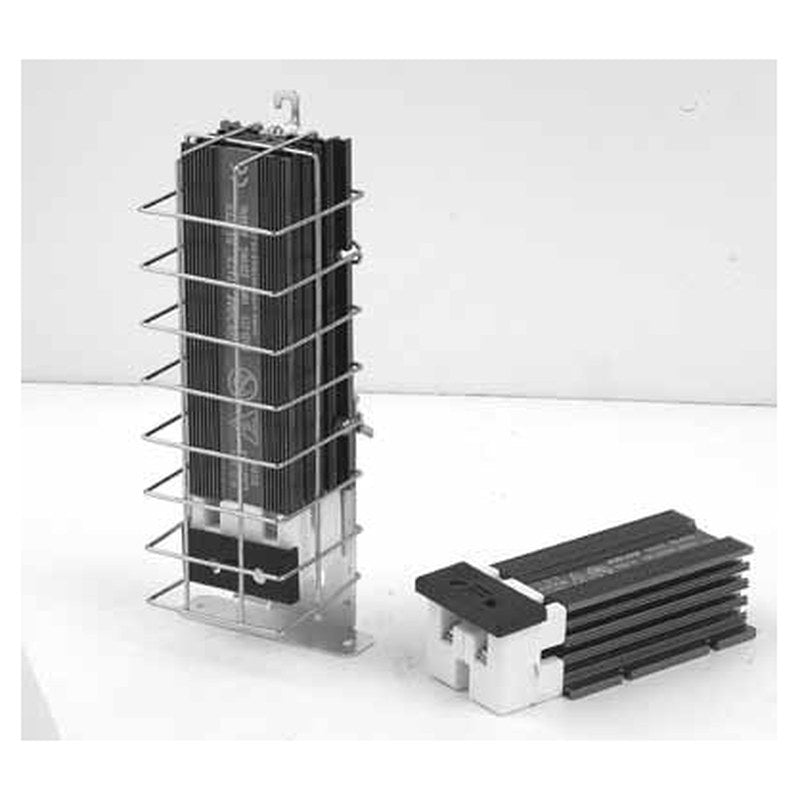

KACON KSH Series Space Heaters for Control Panels (30-400W)

KACON KSH Series Space Heaters for Control Panels (30-400W)

Anodized aluminium finned space heaters that prevent condensation inside control panels and enclosures.

Key features

  • Outputs 30W to 400W at 110/125VAC, 220/240VAC or 380VAC
  • Anodized aluminium body with ceramic terminal casing
  • Panel mounting; optional guards KSH-G1/G2/G3 and KSH-B1 bolt kit
  • Use with KTC thermostat or KHC humidity controller
  • Operating ambient -45 to +70 C

Specifications

Material Aluminium, anodized
Connection casing Ceramic + terminal
Mounting Panel mounting
Insulation resistance 100 MOhm 500VDC
Dielectric strength 2,000VAC 1 min
Life 5,000 hours (incl. ON/OFF)
Ambient temperature -45 to +70 C (no icing)
Ambient humidity 50-95% RH
Guard Optional accessory, not included
Source KACON KSH Series catalogue, p. 1-3
KSH-105 Type: Space heater | Supply: 110/125VAC | Output: 50W | Guard: KSH-G3
KSH-108 Type: Space heater | Supply: 110/125VAC | Output: 80W | Guard: KSH-G2
KSH-110 Type: Space heater | Supply: 110/125VAC | Output: 100W | Guard: KSH-G2
KSH-115 Type: Space heater | Supply: 110/125VAC | Output: 150W | Guard: KSH-G2
KSH-120 Type: Space heater | Supply: 110/125VAC | Output: 200W | Guard: KSH-G2
KSH-203 Type: Space heater | Supply: 220/240VAC | Output: 30W | Guard: KSH-G3
KSH-205 Type: Space heater | Supply: 220/240VAC | Output: 50W | Guard: KSH-G3
KSH-208 Type: Space heater | Supply: 220/240VAC | Output: 80W | Guard: KSH-G2
KSH-210 Type: Space heater | Supply: 220/240VAC | Output: 100W | Guard: KSH-G2
KSH-215 Type: Space heater | Supply: 220/240VAC | Output: 150W | Guard: KSH-G2
KSH-220 Type: Space heater | Supply: 220/240VAC | Output: 200W | Guard: KSH-G2
KSH-230 Type: Space heater | Supply: 220/240VAC | Output: 300W | Guard: KSH-G1
KSH-240 Type: Space heater | Supply: 220/240VAC | Output: 400W | Guard: KSH-G1
KSH-320 Type: Space heater | Supply: 380VAC | Output: 200W | Guard: KSH-G2
KSH-G1 Type: Guard | Supply: - | Output: For 300-400W | Guard: 350x70x65mm
KSH-G2 Type: Guard | Supply: - | Output: For 80-200W | Guard: 200x70x65mm
KSH-G3 Type: Guard | Supply: - | Output: For 30-50W | Guard: 150x70x65mm
KSH-B1 Type: Guard mounting bolt kit | Supply: - | Output: For KSH-G1/G2/G3 | Guard: 2 bolts + 2 butterfly nuts
