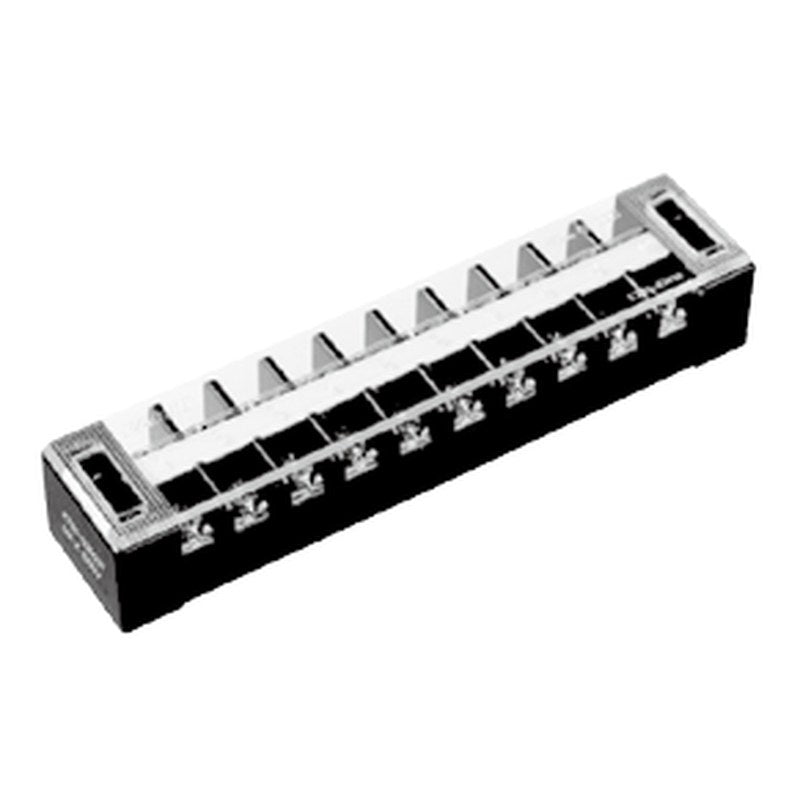

KACON KTB1-T Solar Terminal Blocks 1,000V (30A, 3-10 Poles)

KACON KTB1-T Solar Terminal Blocks 1,000V (30A, 3-10 Poles)

Solar-purpose 30A power distribution terminal blocks rated 1,000V for PV systems, in 3 to 10 poles.

Key features

  • Rated 30A, 1,000V
  • Fire-retardant phenolic resin body (V0), clear cover (V2)
  • Corrosion-resistant surface treatment
  • 2,600VAC dielectric strength
  • 3, 4, 6 and 10 pole versions with M4 terminal bolts

Specifications

Rated current 30A
Rated voltage 1,000V
Insulation resistance 1,000Mohm min. (500VDC)
Dielectric strength 2,600VAC 1 min
Terminal bolt M4.0
Body Phenolic resin, V0
Terminal 1st class brass
Ambient temperature -20 to 60 C
Source KACON Solar Purpose KTB1-T Series catalogue, p. 1-2
KTB1-03003T Poles: 3P | Rated current: 30A | Mounting holes: 2 x 4.2mm
KTB1-03004T Poles: 4P | Rated current: 30A | Mounting holes: 2 x 4.2mm
KTB1-03006T Poles: 6P | Rated current: 30A | Mounting holes: 2 x 4.2mm
KTB1-03010T Poles: 10P | Rated current: 30A | Mounting holes: 2 x 4.2mm
Terminal BlocksKACON
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB1-T Solar Terminal Blocks 1,000V (30A, 3-10 Poles)

Brand KACON·Terminal Blocks

Available part numbers (4)

KTB1-03003T, KTB1-03004T, KTB1-03006T, KTB1-03010T

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTB1-03003TPoles: 3P | Rated current: 30A | Mounting holes: 2 x 4.2mm
KTB1-03004TPoles: 4P | Rated current: 30A | Mounting holes: 2 x 4.2mm
KTB1-03006TPoles: 6P | Rated current: 30A | Mounting holes: 2 x 4.2mm
KTB1-03010TPoles: 10P | Rated current: 30A | Mounting holes: 2 x 4.2mm
