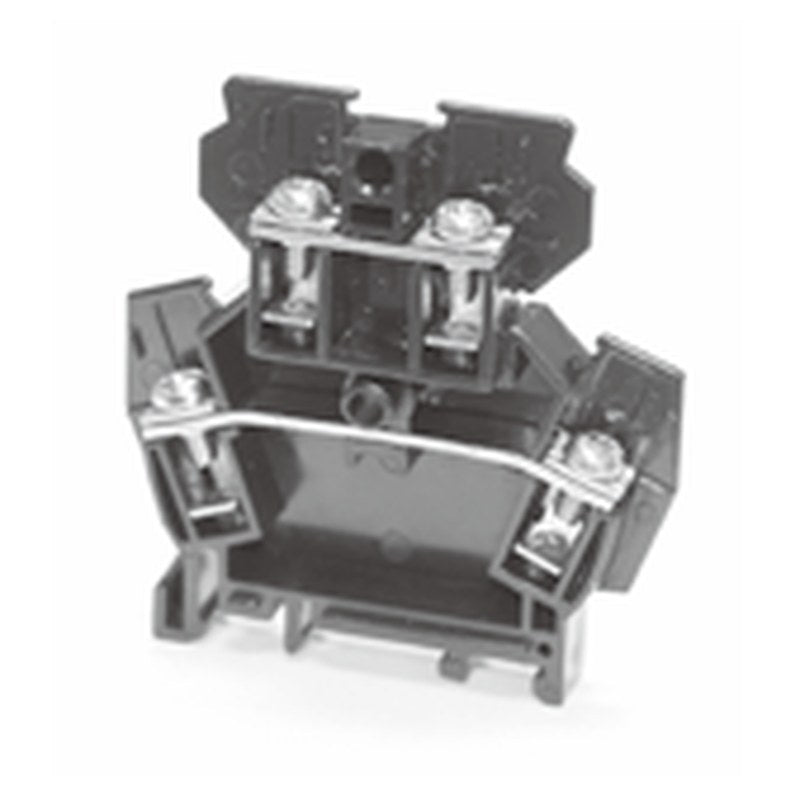

KACON KTB2 / KTB3 Modular Terminal Blocks (10A-300A)

KACON KTB2 / KTB3 Modular Terminal Blocks (10A-300A)

Rail-mounted modular (assembled type) terminal blocks from 10A to 300A, plus KTB3 two-level blocks.

Key features

  • KTB2 single-level blocks 10A to 300A
  • KTB3 two-level blocks 10A and 15A
  • M3.0 to M12.0 terminal bolts
  • Mount on KTB2 15mm / 35mm channels with stoppers, separators and covers
  • Max. 600VAC, 2,500VAC dielectric strength

Specifications

Rated voltage Max. 600VAC
Insulation resistance 1,000Mohm min. (500VDC)
Dielectric strength 2,500VAC 1 min
Material Flame-retardant PC (HB / V2)
Heat resistance Class B 130 C (IEC 60085)
Ambient temperature -20 to 60 C
Source KACON KTB2 KTB3 Series catalogue, p. 1-3
KTB2-010 Type: Modular | Rated current: 10A | Terminal bolt: M3.0 | Separator: KTB2-A10
KTB2-015 Type: Modular | Rated current: 15A | Terminal bolt: M3.5 | Separator: KTB2-A25
KTB2-025 Type: Modular | Rated current: 25A | Terminal bolt: M4.0 | Separator: KTB2-A25
KTB2-035 Type: Modular | Rated current: 35A | Terminal bolt: M4.0 | Separator: KTB2-A35
KTB2-060 Type: Modular | Rated current: 60A | Terminal bolt: M6.0 | Separator: KTB2-A60
KTB2-100 Type: Modular | Rated current: 100A | Terminal bolt: M6.0 | Separator: KTB2-A100
KTB2-200 Type: Modular | Rated current: 200A | Terminal bolt: M10.0 | Separator: KTB2-A200
KTB2-300 Type: Modular | Rated current: 300A | Terminal bolt: M12.0 | Separator: KTB2-A300
KTB3-010 Type: Two-level modular | Rated current: 10A | Terminal bolt: M3.0 | Separator: KTB3-A10
KTB3-015 Type: Two-level modular | Rated current: 15A | Terminal bolt: M3.5 | Separator: KTB3-A15
Terminal BlocksKACON
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB2 / KTB3 Modular Terminal Blocks (10A-300A)

Brand KACON·Terminal Blocks

Available part numbers (10)

KTB2-010, KTB2-015, KTB2-025, KTB2-035, KTB2-060, KTB2-100, KTB2-200, KTB2-300, KTB3-010, KTB3-015

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTB2-010Type: Modular | Rated current: 10A | Terminal bolt: M3.0 | Separator: KTB2-A10
KTB2-015Type: Modular | Rated current: 15A | Terminal bolt: M3.5 | Separator: KTB2-A25
KTB2-025Type: Modular | Rated current: 25A | Terminal bolt: M4.0 | Separator: KTB2-A25
KTB2-035Type: Modular | Rated current: 35A | Terminal bolt: M4.0 | Separator: KTB2-A35
KTB2-060Type: Modular | Rated current: 60A | Terminal bolt: M6.0 | Separator: KTB2-A60
KTB2-100Type: Modular | Rated current: 100A | Terminal bolt: M6.0 | Separator: KTB2-A100
KTB2-200Type: Modular | Rated current: 200A | Terminal bolt: M10.0 | Separator: KTB2-A200
KTB2-300Type: Modular | Rated current: 300A | Terminal bolt: M12.0 | Separator: KTB2-A300
KTB3-010Type: Two-level modular | Rated current: 10A | Terminal bolt: M3.0 | Separator: KTB3-A10
KTB3-015Type: Two-level modular | Rated current: 15A | Terminal bolt: M3.5 | Separator: KTB3-A15
