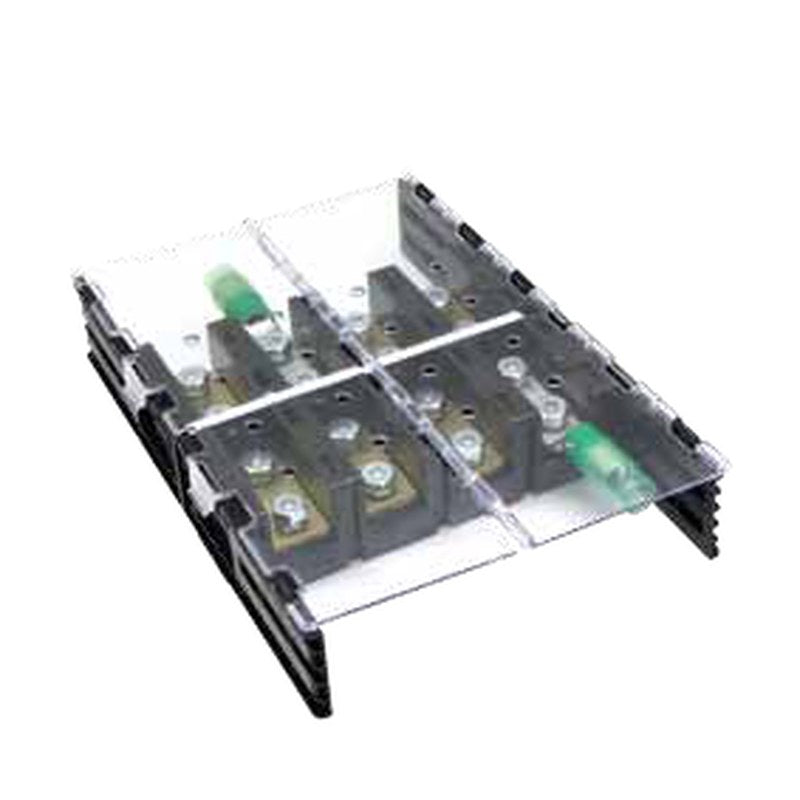

KACON KTB7 Two-Hole Safety Terminal Blocks T Type (400A, 3P/4P)

High-current two-hole terminal blocks with two-stage hinged clear PC safety cover, rated 400A (also usable at 300A).

Key features

Two-hole terminals prevent damage from power-drill torque during bolting
Two-stage open hinged clear PC (UL94 V0) safety cover
Hole size conforms to environment, safety & health standards
400A rating, also usable for 300A; M12 terminal bolts
Shipped with protective cover fitted

Specifications

Rated current	400A (300A compatible)
Rated voltage	Max. 600VAC
Insulation resistance	Min. 100Mohm
Dielectric strength	2,500VAC 1 min
Terminal bolt	M12
Body	Flame-retardant phenolic resin, black
Cover / side walls	PC V0, clear / black
Ambient temperature	-20 to 60 C
Certification	CE
Source	KACON KTB7 Two-Hole Terminal Block catalogue, p. 2-5

KTB7-T34-3P		Poles: 3P \| Weight: 3.5kg (4.5kg packed) \| Pitch: 55mm
KTB7-T34-4P		Poles: 4P \| Weight: 4.7kg (5.7kg packed) \| Pitch: 55mm

Terminal BlocksKACON

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB7 Two-Hole Safety Terminal Blocks T Type (400A, 3P/4P)

Brand KACON·Terminal Blocks

Available part numbers (2)

KTB7-T34-3P, KTB7-T34-4P

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
