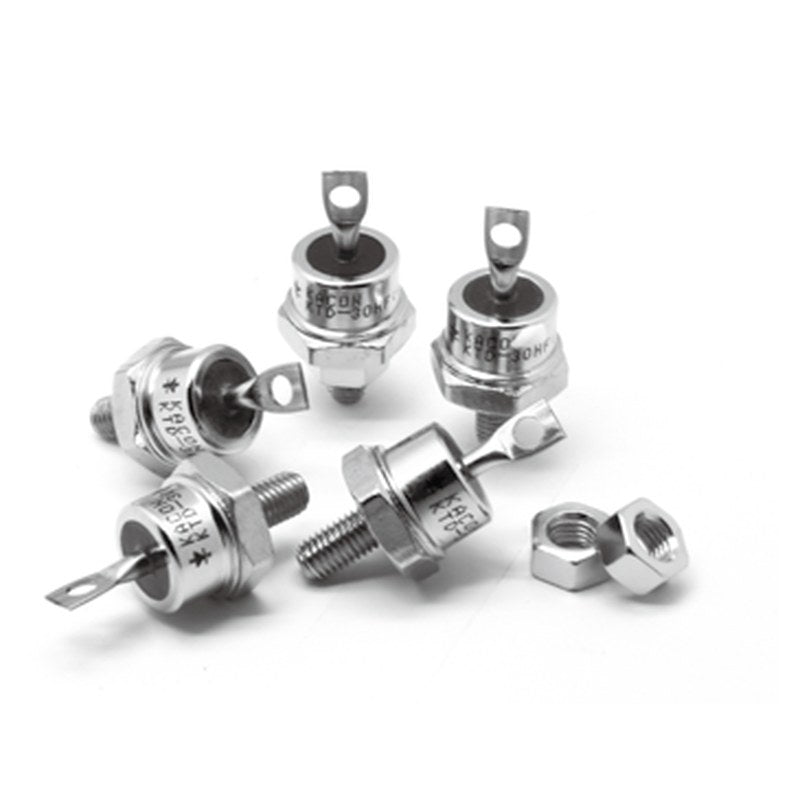

KACON KTD Series Solar Purpose Diodes (DO-5, 30-85A)

KACON KTD Series Solar Purpose Diodes (DO-5, 30-85A)

Stud-mount DO-5 blocking diodes for photovoltaic combiner boxes, with high current capacity.

Key features

  • Rated currents 30A, 50A, 70A and 85A
  • Repetitive reverse voltage up to 1,600V
  • DO-5 stud package, 1/4" 28UNF thread
  • Junction temperature -40 to +150 C
  • Mounts on KHS-106 to KHS-109 heatsinks

Specifications

Package DO-5
Thread 1/4" 28UNF-2A
Junction temperature -40 to +150 C
Mounting torque <=2.0 N.m
Max. reverse current <=10-12 mA
Application Solar PV combiner boxes
Source KACON KHS KTD KMD Series catalogue, p. 1
KTD-30 Rated current IF(AV): 30A | RMS current: 48A | VRRM: 200-1200V | Rjc: <=0.8 C/W
KTD-50 Rated current IF(AV): 50A | RMS current: 80A | VRRM: 200-1200V | Rjc: <=0.8 C/W
KTD-70 Rated current IF(AV): 70A | RMS current: 112A | VRRM: 200-1600V | Rjc: <=0.5 C/W
KTD-85 Rated current IF(AV): 85A | RMS current: 136A | VRRM: 200-1600V | Rjc: <=0.4 C/W
