KACON KTX TempCon Air PID Temperature Controllers (48 to 96 mm)

KACON KTX TempCon Air PID Temperature Controllers (48 to 96 mm)

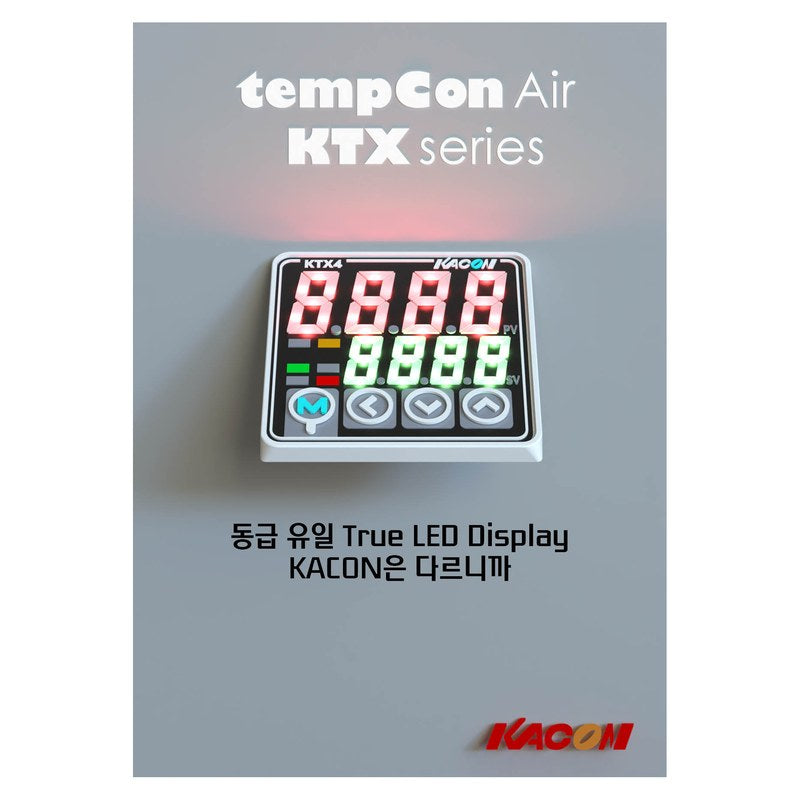

KACON KTX TempCon Air short-depth PID temperature controllers with True LED display and selectable relay or SSR drive output.

Key features

  • Only 50 mm depth behind the panel with large True LED PV/SV display
  • One model selects relay (250VAC 3A) or SSR drive (12VDC, 20mA) output
  • Thermocouple K/E/J/N/T/S/R/B and RTD Pt100/Cu50 inputs
  • ON/OFF or PID control with auto-tuning; heating or cooling
  • One or two alarm relay outputs (250VAC 3A 1NO)
  • Five front sizes: 48x48, 48x96, 96x48, 72x72, 96x96 mm

Specifications

Display accuracy +/-0.5%
Power consumption 8VA max.
Control output Relay 250VAC 3A / SSR drive 12VDC +/-2V, 20mA
Alarm output Relay 250VAC 3A 1NO
Control type ON/OFF, PID with auto-tuning
Sampling period 100 ms
Proportional band 0.1-999.9 C/F
Relay life Mech. 2,500,000 / elec. 100,000 ops
Ambient -10 to +50 C, 35-85% RH
Source KACON Temperature Controller Catalog (Korean) catalogue, p. 2-3
KTX471A Size: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX471D Size: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX472A Size: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX472D Size: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX271A Size: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX271D Size: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX272A Size: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX272D Size: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX371A Size: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX371D Size: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX372A Size: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX372D Size: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX771A Size: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX771D Size: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX772A Size: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX772D Size: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX971A Size: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX971D Size: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX972A Size: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX972D Size: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
Temperature ControllersKACON
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTX TempCon Air PID Temperature Controllers (48 to 96 mm)

Brand KACON·Temperature Controllers

Available part numbers (20)

KTX471A, KTX471D, KTX472A, KTX472D, KTX271A, KTX271D, KTX272A, KTX272D, KTX371A, KTX371D + 10 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTX471ASize: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX471DSize: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX472ASize: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX472DSize: W48 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX271ASize: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX271DSize: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX272ASize: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX272DSize: W48 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX371ASize: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX371DSize: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX372ASize: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX372DSize: W96 x H48 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX771ASize: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX771DSize: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX772ASize: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX772DSize: W72 x H72 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
KTX971ASize: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 100-240VAC
KTX971DSize: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 | Power: 24VDC
KTX972ASize: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 100-240VAC
KTX972DSize: W96 x H96 mm | Control output: Relay / SSR drive | Alarm: AL1 + AL2 | Power: 24VDC
