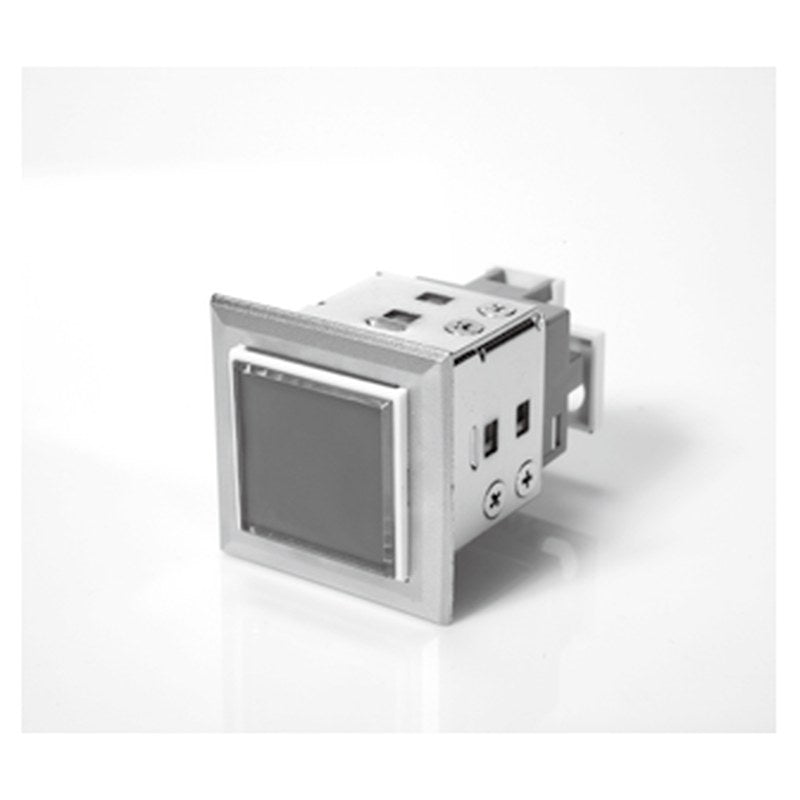

KACON SL Series Square Lights (SL30/SL40)

KACON SL Series Square Lights (SL30/SL40)

KACON SL Series LED square lights for annunciator-style panel displays, in 30 x 30 mm square and 30 x 40 mm rectangular units.

Key features

  • Square (SL30) and rectangular (SL40) LED units
  • Two-position angle control
  • Easy lens and dial (name plate) replacement
  • Assemblies up to 20 rows x 20 lines (custom order)
  • Red, green, yellow, blue and white
  • Rated 24VDC, 110/125VDC, 110VAC or 220VAC (AC with power trans)

Specifications

Illumination LED
Power consumption Max. 20mA
Rated voltage 24VDC, 110/125VDC, 110VAC, 220VAC
Insulation resistance 100MΩ (500VDC)
Dielectric strength 1500VAC
Ambient temperature -25 to +70 °C
Material PC body, acrylic lens
Terminal bolt M3.5 x 7
Ordering Assembly 111-FF is custom order
Source KACON SL-SQUARE LAMP catalogue, p. 1-3
SL30-111R Bezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Red
SL30-111G Bezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Green
SL30-111Y Bezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Yellow
SL30-111B Bezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Blue
SL30-111W Bezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: White
SL40-111R Bezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Red
SL40-111G Bezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Green
SL40-111Y Bezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Yellow
SL40-111B Bezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Blue
SL40-111W Bezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: White
Pilot LampsKACON
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON SL Series Square Lights (SL30/SL40)

Brand KACON·Pilot Lamps

Available part numbers (10)

SL30-111R, SL30-111G, SL30-111Y, SL30-111B, SL30-111W, SL40-111R, SL40-111G, SL40-111Y, SL40-111B, SL40-111W

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL30-111RBezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Red
SL30-111GBezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Green
SL30-111YBezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Yellow
SL30-111BBezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: Blue
SL30-111WBezel: Square 30 x 30 mm | Assembly: 1 x 1 (111) | Colour: White
SL40-111RBezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Red
SL40-111GBezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Green
SL40-111YBezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Yellow
SL40-111BBezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: Blue
SL40-111WBezel: Rectangular 30 x 40 mm | Assembly: 1 x 1 (111) | Colour: White
