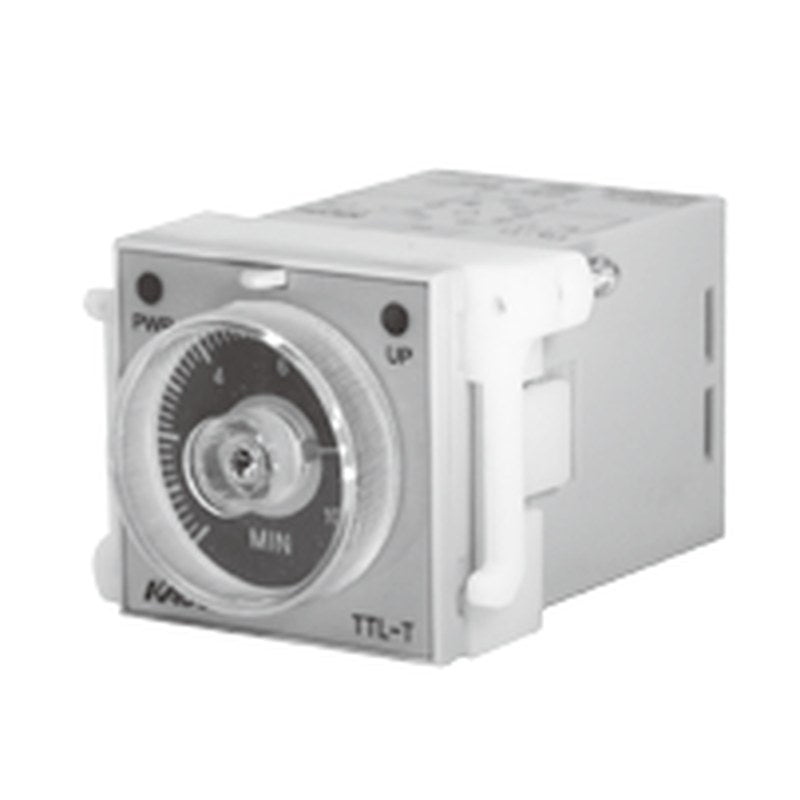

KACON TTL-T Series Analog Timers (power ON delay, 1s-24h)

KACON TTL-T Series Analog Timers (power ON delay, 1s-24h)

Compact plug-in analog power-ON delay timer with single-range dials from 1 second to 24 hours.

Key features

  • TTL-T1: on-delay DPDT (2C); TTL-T2: on-delay SPDT plus instantaneous SPDT
  • Fifteen single time ranges from 1 s to 24 h
  • Supply 220VAC, 110VAC or 24VDC
  • Contact capacity 250VAC 3A resistive
  • Repeat accuracy max. +/-0.3%
  • Mounts on K2BF08 8-pin socket; panel frames and brackets available

Specifications

Function Power ON delay
Contact capacity 250VAC 3A resistive
Operating voltage range 90-110% of supply
Recovery time Max. 200ms
Accuracy Max. +/-0.3%
Setting error +/-5%
Mechanical life Min. 10,000,000 operations
Ambient temperature -10 to +55 C (no icing)
Weight Approx. 75g
Socket K2BF08 (8-pin)
Source KACON TTL-T1 Series catalogue, p. 1-3
TTL-T1-1S 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-1 sec | Supply: 220VAC
TTL-T1-1S 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-1 sec | Supply: 110VAC
TTL-T1-1S 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-1 sec | Supply: 24VDC
TTL-T1-3S 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-3 sec | Supply: 220VAC
TTL-T1-3S 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-3 sec | Supply: 110VAC
TTL-T1-3S 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-3 sec | Supply: 24VDC
TTL-T1-6S 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-6 sec | Supply: 220VAC
TTL-T1-6S 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-6 sec | Supply: 110VAC
TTL-T1-6S 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-6 sec | Supply: 24VDC
TTL-T1-10S 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-10 sec | Supply: 220VAC
TTL-T1-10S 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-10 sec | Supply: 110VAC
TTL-T1-10S 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-10 sec | Supply: 24VDC
TTL-T1-30S 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-30 sec | Supply: 220VAC
TTL-T1-30S 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-30 sec | Supply: 110VAC
TTL-T1-30S 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-30 sec | Supply: 24VDC
TTL-T1-60S 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-60 sec | Supply: 220VAC
TTL-T1-60S 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-60 sec | Supply: 110VAC
TTL-T1-60S 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-60 sec | Supply: 24VDC
TTL-T1-3M 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-3 min | Supply: 220VAC
TTL-T1-3M 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-3 min | Supply: 110VAC
TTL-T1-3M 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-3 min | Supply: 24VDC
TTL-T1-6M 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-6 min | Supply: 220VAC
TTL-T1-6M 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-6 min | Supply: 110VAC
TTL-T1-6M 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-6 min | Supply: 24VDC
TTL-T1-10M 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-10 min | Supply: 220VAC
TTL-T1-10M 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-10 min | Supply: 110VAC
TTL-T1-10M 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-10 min | Supply: 24VDC
TTL-T1-30M 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-30 min | Supply: 220VAC
TTL-T1-30M 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-30 min | Supply: 110VAC
TTL-T1-30M 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-30 min | Supply: 24VDC
TTL-T1-60M 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-60 min | Supply: 220VAC
TTL-T1-60M 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-60 min | Supply: 110VAC
TTL-T1-60M 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-60 min | Supply: 24VDC
TTL-T1-3H 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-3 hour | Supply: 220VAC
TTL-T1-3H 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-3 hour | Supply: 110VAC
TTL-T1-3H 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-3 hour | Supply: 24VDC
TTL-T1-6H 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-6 hour | Supply: 220VAC
TTL-T1-6H 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-6 hour | Supply: 110VAC
TTL-T1-6H 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-6 hour | Supply: 24VDC
TTL-T1-12H 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-12 hour | Supply: 220VAC
TTL-T1-12H 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-12 hour | Supply: 110VAC
TTL-T1-12H 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-12 hour | Supply: 24VDC
TTL-T1-24H 220VAC Contacts: On-delay DPDT (2C) | Time range: 0-24 hour | Supply: 220VAC
TTL-T1-24H 110VAC Contacts: On-delay DPDT (2C) | Time range: 0-24 hour | Supply: 110VAC
TTL-T1-24H 24VDC Contacts: On-delay DPDT (2C) | Time range: 0-24 hour | Supply: 24VDC
TTL-T2-1S 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-1 sec | Supply: 220VAC
TTL-T2-1S 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-1 sec | Supply: 110VAC
TTL-T2-1S 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-1 sec | Supply: 24VDC
TTL-T2-3S 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 sec | Supply: 220VAC
TTL-T2-3S 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 sec | Supply: 110VAC
TTL-T2-3S 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 sec | Supply: 24VDC
TTL-T2-6S 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 sec | Supply: 220VAC
TTL-T2-6S 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 sec | Supply: 110VAC
TTL-T2-6S 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 sec | Supply: 24VDC
TTL-T2-10S 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-10 sec | Supply: 220VAC
TTL-T2-10S 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-10 sec | Supply: 110VAC
TTL-T2-10S 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-10 sec | Supply: 24VDC
TTL-T2-30S 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-30 sec | Supply: 220VAC
TTL-T2-30S 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-30 sec | Supply: 110VAC
TTL-T2-30S 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-30 sec | Supply: 24VDC
TTL-T2-60S 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-60 sec | Supply: 220VAC
TTL-T2-60S 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-60 sec | Supply: 110VAC
TTL-T2-60S 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-60 sec | Supply: 24VDC
TTL-T2-3M 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 min | Supply: 220VAC
TTL-T2-3M 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 min | Supply: 110VAC
TTL-T2-3M 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 min | Supply: 24VDC
TTL-T2-6M 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 min | Supply: 220VAC
TTL-T2-6M 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 min | Supply: 110VAC
TTL-T2-6M 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 min | Supply: 24VDC
TTL-T2-10M 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-10 min | Supply: 220VAC
TTL-T2-10M 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-10 min | Supply: 110VAC
TTL-T2-10M 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-10 min | Supply: 24VDC
TTL-T2-30M 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-30 min | Supply: 220VAC
TTL-T2-30M 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-30 min | Supply: 110VAC
TTL-T2-30M 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-30 min | Supply: 24VDC
TTL-T2-60M 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-60 min | Supply: 220VAC
TTL-T2-60M 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-60 min | Supply: 110VAC
TTL-T2-60M 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-60 min | Supply: 24VDC
TTL-T2-3H 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 hour | Supply: 220VAC
TTL-T2-3H 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 hour | Supply: 110VAC
TTL-T2-3H 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-3 hour | Supply: 24VDC
TTL-T2-6H 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 hour | Supply: 220VAC
TTL-T2-6H 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 hour | Supply: 110VAC
TTL-T2-6H 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-6 hour | Supply: 24VDC
TTL-T2-12H 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-12 hour | Supply: 220VAC
TTL-T2-12H 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-12 hour | Supply: 110VAC
TTL-T2-12H 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-12 hour | Supply: 24VDC
TTL-T2-24H 220VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-24 hour | Supply: 220VAC
TTL-T2-24H 110VAC Contacts: On-delay SPDT + instant SPDT | Time range: 0-24 hour | Supply: 110VAC
TTL-T2-24H 24VDC Contacts: On-delay SPDT + instant SPDT | Time range: 0-24 hour | Supply: 24VDC
