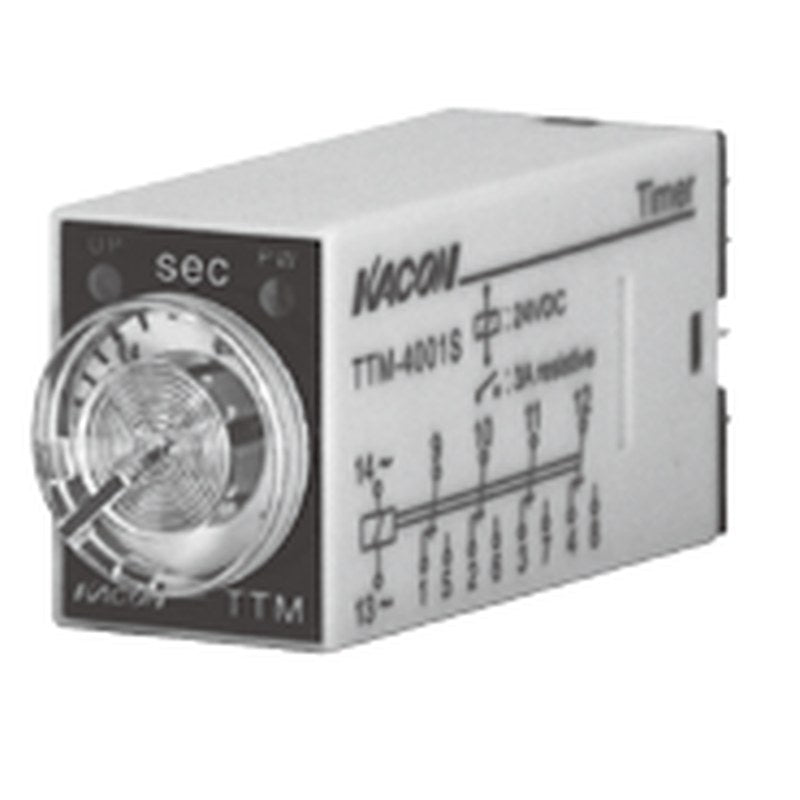

KACON TTM Series Analog Timers (4C, 0.5s-60min)

KACON TTM Series Analog Timers (4C, 0.5s-60min)

Miniature plug-in analog on-delay timer with 4C contacts and time ranges from 0.5 seconds to 60 minutes.

Key features

  • Four changeover contacts (4C), 3A 240VAC resistive
  • Time ranges 0.5 s to 180 s and 5 min to 60 min
  • Supply 220VAC, 110VAC, 24VDC or 12VDC
  • Accuracy max. +/-1%, reset time max. 100 ms
  • Fits KMY4 / KMY4S sockets

Specifications

Contact 4C, 3A 240VAC resistive
Accuracy Max. +/-1%
Reset time Max. 100ms
Power consumption DC 1.2W / AC 2VA
Dielectric strength 1,500VAC 1 min
Mechanical life Min. 1,000,000 operations
Electrical life Min. 200,000 operations
Ambient temperature -25 to +55 C (no icing)
Sockets KMY4, KMY4S
Source KACON TTM Series catalogue, p. 1
TTM-40.5S 220VAC Max. time: 0.5 s | Time unit: Seconds | Supply: 220VAC
TTM-40.5S 110VAC Max. time: 0.5 s | Time unit: Seconds | Supply: 110VAC
TTM-40.5S 24VDC Max. time: 0.5 s | Time unit: Seconds | Supply: 24VDC
TTM-40.5S 12VDC Max. time: 0.5 s | Time unit: Seconds | Supply: 12VDC
TTM-4001S 220VAC Max. time: 1 s | Time unit: Seconds | Supply: 220VAC
TTM-4001S 110VAC Max. time: 1 s | Time unit: Seconds | Supply: 110VAC
TTM-4001S 24VDC Max. time: 1 s | Time unit: Seconds | Supply: 24VDC
TTM-4001S 12VDC Max. time: 1 s | Time unit: Seconds | Supply: 12VDC
TTM-4005S 220VAC Max. time: 5 s | Time unit: Seconds | Supply: 220VAC
TTM-4005S 110VAC Max. time: 5 s | Time unit: Seconds | Supply: 110VAC
TTM-4005S 24VDC Max. time: 5 s | Time unit: Seconds | Supply: 24VDC
TTM-4005S 12VDC Max. time: 5 s | Time unit: Seconds | Supply: 12VDC
TTM-4010S 220VAC Max. time: 10 s | Time unit: Seconds | Supply: 220VAC
TTM-4010S 110VAC Max. time: 10 s | Time unit: Seconds | Supply: 110VAC
TTM-4010S 24VDC Max. time: 10 s | Time unit: Seconds | Supply: 24VDC
TTM-4010S 12VDC Max. time: 10 s | Time unit: Seconds | Supply: 12VDC
TTM-4030S 220VAC Max. time: 30 s | Time unit: Seconds | Supply: 220VAC
TTM-4030S 110VAC Max. time: 30 s | Time unit: Seconds | Supply: 110VAC
TTM-4030S 24VDC Max. time: 30 s | Time unit: Seconds | Supply: 24VDC
TTM-4030S 12VDC Max. time: 30 s | Time unit: Seconds | Supply: 12VDC
TTM-4060S 220VAC Max. time: 60 s | Time unit: Seconds | Supply: 220VAC
TTM-4060S 110VAC Max. time: 60 s | Time unit: Seconds | Supply: 110VAC
TTM-4060S 24VDC Max. time: 60 s | Time unit: Seconds | Supply: 24VDC
TTM-4060S 12VDC Max. time: 60 s | Time unit: Seconds | Supply: 12VDC
TTM-4180S 220VAC Max. time: 180 s | Time unit: Seconds | Supply: 220VAC
TTM-4180S 110VAC Max. time: 180 s | Time unit: Seconds | Supply: 110VAC
TTM-4180S 24VDC Max. time: 180 s | Time unit: Seconds | Supply: 24VDC
TTM-4180S 12VDC Max. time: 180 s | Time unit: Seconds | Supply: 12VDC
TTM-4005M 220VAC Max. time: 5 min | Time unit: Minutes | Supply: 220VAC
TTM-4005M 110VAC Max. time: 5 min | Time unit: Minutes | Supply: 110VAC
TTM-4005M 24VDC Max. time: 5 min | Time unit: Minutes | Supply: 24VDC
TTM-4005M 12VDC Max. time: 5 min | Time unit: Minutes | Supply: 12VDC
TTM-4010M 220VAC Max. time: 10 min | Time unit: Minutes | Supply: 220VAC
TTM-4010M 110VAC Max. time: 10 min | Time unit: Minutes | Supply: 110VAC
TTM-4010M 24VDC Max. time: 10 min | Time unit: Minutes | Supply: 24VDC
TTM-4010M 12VDC Max. time: 10 min | Time unit: Minutes | Supply: 12VDC
TTM-4030M 220VAC Max. time: 30 min | Time unit: Minutes | Supply: 220VAC
TTM-4030M 110VAC Max. time: 30 min | Time unit: Minutes | Supply: 110VAC
TTM-4030M 24VDC Max. time: 30 min | Time unit: Minutes | Supply: 24VDC
TTM-4030M 12VDC Max. time: 30 min | Time unit: Minutes | Supply: 12VDC
TTM-4060M 220VAC Max. time: 60 min | Time unit: Minutes | Supply: 220VAC
TTM-4060M 110VAC Max. time: 60 min | Time unit: Minutes | Supply: 110VAC
TTM-4060M 24VDC Max. time: 60 min | Time unit: Minutes | Supply: 24VDC
TTM-4060M 12VDC Max. time: 60 min | Time unit: Minutes | Supply: 12VDC
