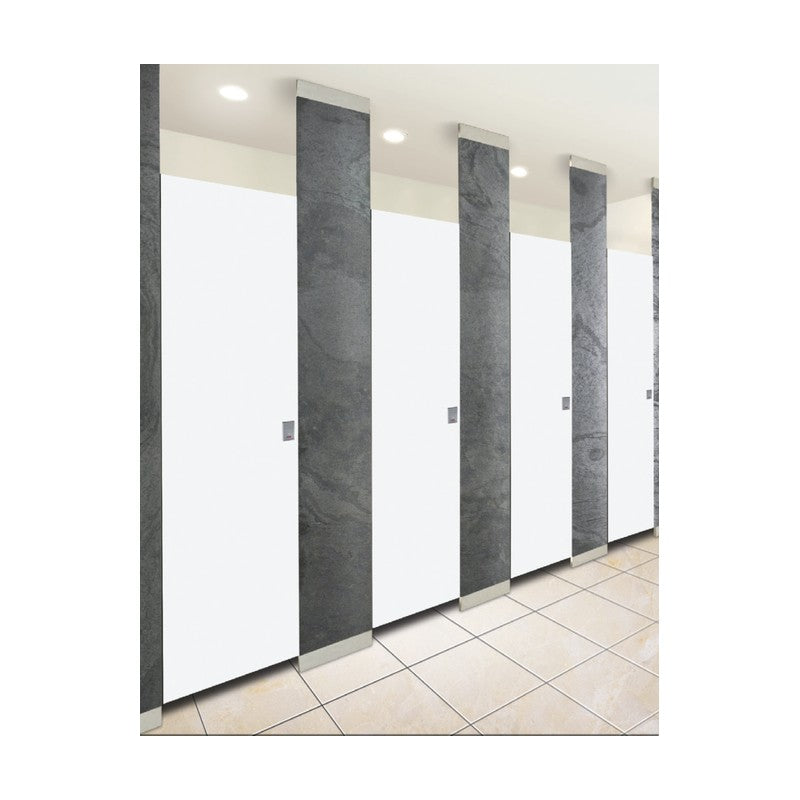

KCC BEAUTICLE PREMIUM Toilet Cubicle System (Steel/Stone/Fusion/DUKE)

KCC BEAUTICLE PREMIUM covers six toilet cubicle lines with upgraded panels: NEOPOP STEEL (stainless steel face), ART STONE (natural stone), ART WOOD (solid wood edge), FUSION 15 (foamed resin), FUSION 18 (CMP compact panel) and DUKE (30 mm core board).

Key features

NEOPOP STEEL: STS304 laminated steel face with folded edges, highly water- and impact-resistant
ART STONE: real natural-stone facing that does not change under long moisture exposure
FUSION 15/18: foamed resin or compact melamine panels that do not swell or warp in humid areas
DUKE: 30 mm core-board panel with round edge band to minimise door/pilaster gaps
Dedicated hardware sets with ABS caps, stoppers and indicator latches
Panel sizes made to order (max W 1,450 / H 2,400 mm)

Specifications

Panel thickness	15-30 mm by line
Door size	W 600-900 (DUKE 850/900), H 1,730-1,750
Partition	1,450 x 1,770 (DUKE 1,800) mm
Pilaster	W 200-400, H 1,800 mm
Custom size	Max W 1,450 / H 2,400 mm
Thickness tolerance	Up to 7 % (composite)
Source	KCC KCC BEAUTICLE catalogue (2025.03)

BEAUTICLE NEOPOP STEEL BASIC 20T		Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Face: STS304 laminated steel, PB core
BEAUTICLE NEOPOP STEEL CEILING-MOUNTED 20T		Config: Ceiling-mounted type \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Face: STS304 laminated steel, PB core
BEAUTICLE ART STONE BASIC 21T		Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 1450x1770 \| Face: Natural stone + HPM, foamed resin
BEAUTICLE ART STONE CEILING-MOUNTED 21T		Config: Ceiling-mounted type \| Door: 600-900 x 1750 \| Partition: 1450x1770 \| Face: Natural stone + HPM, foamed resin
BEAUTICLE ART WOOD BASIC 20T		Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Edge: Solid wood, curved cut
BEAUTICLE ART WOOD CEILING-MOUNTED 20T		Config: Ceiling-mounted type \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Edge: Solid wood, curved cut
BEAUTICLE FUSION 15 BASIC 15T		Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Core: Foamed synthetic resin board
BEAUTICLE FUSION 18 BASIC 18T		Config: Standard floor-supported \| Door: 600-900 x 1730 \| Partition: 20T 1450x1770 \| Core: CMP compact melamine panel
BEAUTICLE FUSION 18 A-LINE(DOOR) 18T		Config: Model variant A-LINE(DOOR) \| Door: 600-900 x 1730 \| Partition: 20T 1450x1770 \| Core: CMP compact melamine panel
BEAUTICLE FUSION 18 B-LINE(DOOR) 18T		Config: Model variant B-LINE(DOOR) \| Door: 600-900 x 1730 \| Partition: 20T 1450x1770 \| Core: CMP compact melamine panel
BEAUTICLE DUKE BASIC 30T		Config: Standard floor-supported \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE L(DOOR) 30T		Config: Model variant L(DOOR) \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE M(DOOR) 30T		Config: Model variant M(DOOR) \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE LM(DOOR) 30T		Config: Model variant LM(DOOR) \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE CEILING-MOUNTED 30T		Config: Ceiling-mounted type \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE CEILING-MOUNTED+SUS LEG 30T		Config: Ceiling-mounted + SUS leg \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE CEILING-MOUNTED+SUS LEG+CENTER LINE(DOOR) 30T		Config: Ceiling+SUS leg+center line \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
BEAUTICLE DUKE DESIGN 30T		Config: Design (custom face) panel \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply

Toilet CubiclesKCC Corporation

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC BEAUTICLE PREMIUM Toilet Cubicle System (Steel/Stone/Fusion/DUKE)

Brand KCC Corporation·Toilet Cubicles

Available part numbers (18)

BEAUTICLE NEOPOP STEEL BASIC 20T, BEAUTICLE NEOPOP STEEL CEILING-MOUNTED 20T, BEAUTICLE ART STONE BASIC 21T, BEAUTICLE ART STONE CEILING-MOUNTED 21T, BEAUTICLE ART WOOD BASIC 20T, BEAUTICLE ART WOOD CEILING-MOUNTED 20T, BEAUTICLE FUSION 15 BASIC 15T, BEAUTICLE FUSION 18 BASIC 18T, BEAUTICLE FUSION 18 A-LINE(DOOR) 18T, BEAUTICLE FUSION 18 B-LINE(DOOR) 18T + 8 more — see full table ↓

How to order

Send the KCC Corporation part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	BEAUTICLE NEOPOP STEEL BASIC 20T	Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Face: STS304 laminated steel, PB core
	BEAUTICLE NEOPOP STEEL CEILING-MOUNTED 20T	Config: Ceiling-mounted type \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Face: STS304 laminated steel, PB core
	BEAUTICLE ART STONE BASIC 21T	Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 1450x1770 \| Face: Natural stone + HPM, foamed resin
	BEAUTICLE ART STONE CEILING-MOUNTED 21T	Config: Ceiling-mounted type \| Door: 600-900 x 1750 \| Partition: 1450x1770 \| Face: Natural stone + HPM, foamed resin
	BEAUTICLE ART WOOD BASIC 20T	Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Edge: Solid wood, curved cut
	BEAUTICLE ART WOOD CEILING-MOUNTED 20T	Config: Ceiling-mounted type \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Edge: Solid wood, curved cut
	BEAUTICLE FUSION 15 BASIC 15T	Config: Standard floor-supported \| Door: 600-900 x 1750 \| Partition: 20T 1450x1770 \| Core: Foamed synthetic resin board
	BEAUTICLE FUSION 18 BASIC 18T	Config: Standard floor-supported \| Door: 600-900 x 1730 \| Partition: 20T 1450x1770 \| Core: CMP compact melamine panel
	BEAUTICLE FUSION 18 A-LINE(DOOR) 18T	Config: Model variant A-LINE(DOOR) \| Door: 600-900 x 1730 \| Partition: 20T 1450x1770 \| Core: CMP compact melamine panel
	BEAUTICLE FUSION 18 B-LINE(DOOR) 18T	Config: Model variant B-LINE(DOOR) \| Door: 600-900 x 1730 \| Partition: 20T 1450x1770 \| Core: CMP compact melamine panel
	BEAUTICLE DUKE BASIC 30T	Config: Standard floor-supported \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE L(DOOR) 30T	Config: Model variant L(DOOR) \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE M(DOOR) 30T	Config: Model variant M(DOOR) \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE LM(DOOR) 30T	Config: Model variant LM(DOOR) \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE CEILING-MOUNTED 30T	Config: Ceiling-mounted type \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE CEILING-MOUNTED+SUS LEG 30T	Config: Ceiling-mounted + SUS leg \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE CEILING-MOUNTED+SUS LEG+CENTER LINE(DOOR) 30T	Config: Ceiling+SUS leg+center line \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
	BEAUTICLE DUKE DESIGN 30T	Config: Design (custom face) panel \| Door: 850/900 x 1750 \| Partition: 30T 1450x1800 \| Core: 5 ply + 18 core board + 5 ply
