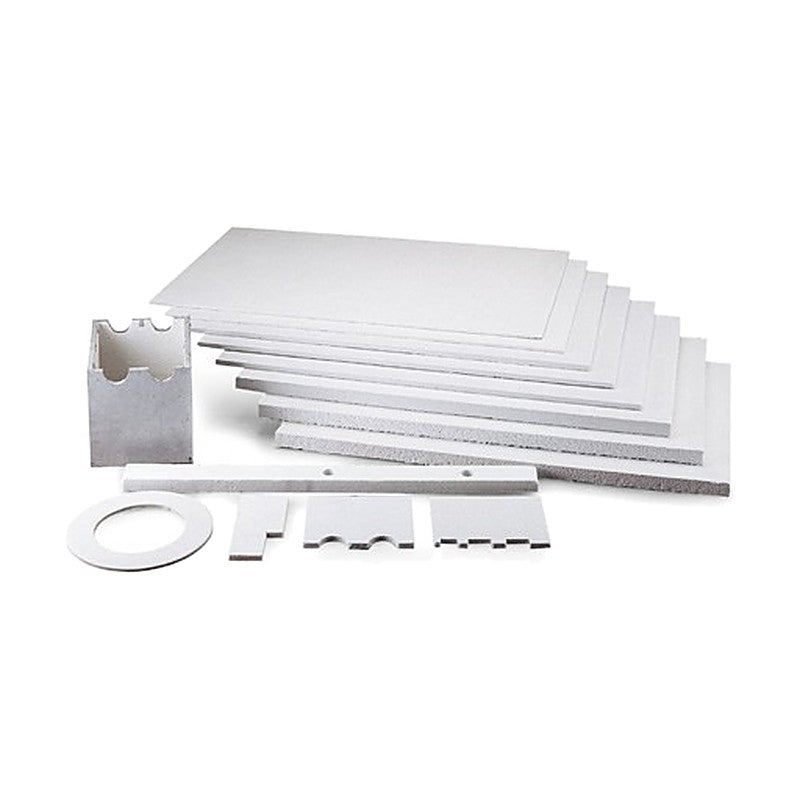

KCC CERAK WOOL Bio Hard Board (1100/1300C, 300 kg/m3)

KCC CERAK WOOL Bio Hard Board is a rigid fibre board formed from bulk fibre with organic and inorganic binders, with a hard surface usable at furnace gas velocities up to 30 m/s.

Key features

Hard surface resists deformation by gas flow (up to 30 m/s)
Excellent thermal shock resistance
For hot-face lining or back-up insulation of furnace roofs and walls
Can be cut for expansion joint filling and sealing

Specifications

Grades	1100 Hard Board (1100C), 1300 Hard Board (1300C)
Density	300 kg/m3
Thickness	12.5, 25, 50 mm
Size	600 x 900 mm
Compressive strength	>=0.1 MPa
Linear shrinkage (24 h)	<=3.0 % at 1000C and 1100C
Thermal conductivity	<=0.135 W/mK (500C)
Organic content	<=8 %
Packing	12 / 6 / 3 pcs per box
Source	KCC CERAK WOOL New-Bio catalogue (2025.11)

BIO HARD BOARD 1100 12.5T 600x900		Grade: 1100 \| Thickness: 12.5 mm \| Size: 600 x 900 mm \| Max temp: 1100C \| Pack: 12 pcs/box
BIO HARD BOARD 1100 25T 600x900		Grade: 1100 \| Thickness: 25 mm \| Size: 600 x 900 mm \| Max temp: 1100C \| Pack: 6 pcs/box
BIO HARD BOARD 1100 50T 600x900		Grade: 1100 \| Thickness: 50 mm \| Size: 600 x 900 mm \| Max temp: 1100C \| Pack: 3 pcs/box
BIO HARD BOARD 1300 12.5T 600x900		Grade: 1300 \| Thickness: 12.5 mm \| Size: 600 x 900 mm \| Max temp: 1300C \| Pack: 12 pcs/box
BIO HARD BOARD 1300 25T 600x900		Grade: 1300 \| Thickness: 25 mm \| Size: 600 x 900 mm \| Max temp: 1300C \| Pack: 6 pcs/box
BIO HARD BOARD 1300 50T 600x900		Grade: 1300 \| Thickness: 50 mm \| Size: 600 x 900 mm \| Max temp: 1300C \| Pack: 3 pcs/box

Ceramic Fibre InsulationKCC Corporation

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC CERAK WOOL Bio Hard Board (1100/1300C, 300 kg/m3)

Brand KCC Corporation·Ceramic Fibre Insulation

Available part numbers (6)

BIO HARD BOARD 1100 12.5T 600x900, BIO HARD BOARD 1100 25T 600x900, BIO HARD BOARD 1100 50T 600x900, BIO HARD BOARD 1300 12.5T 600x900, BIO HARD BOARD 1300 25T 600x900, BIO HARD BOARD 1300 50T 600x900

How to order

Send the KCC Corporation part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
