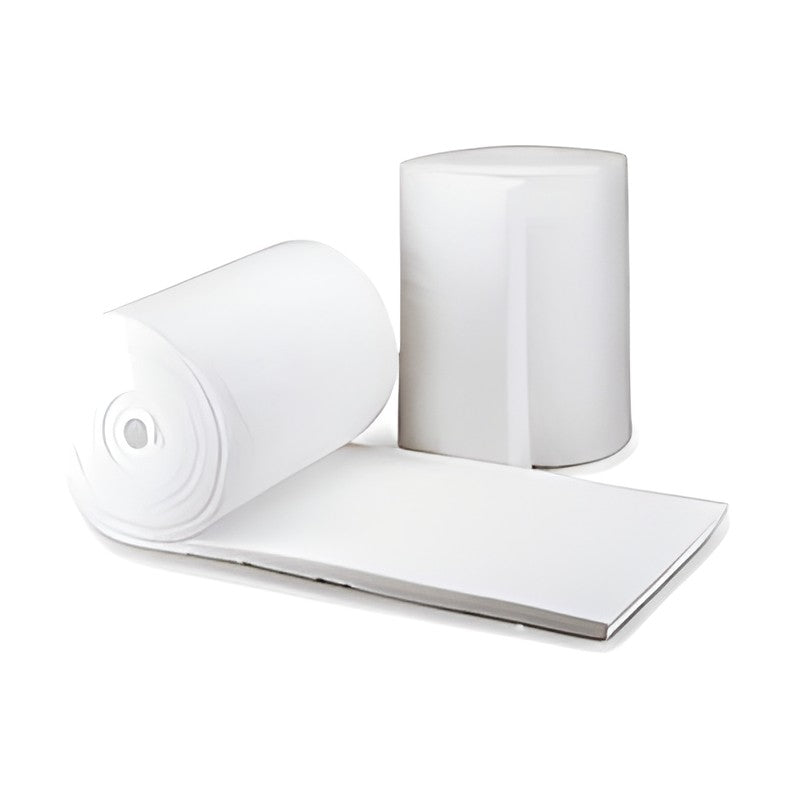

KCC CERAK WOOL New-Bio Blanket (Bio-Soluble Fibre, 1200/1260C)

KCC CERAK WOOL New-Bio Blanket is a needle-punched, binder-free bio-soluble fibre blanket made by the spinning process for super-high-temperature insulation of furnaces, kilns and heat recovery boilers.

Key features

Bio-soluble fibre; passed EU 97/69/EC and German TRGS 905 bio-persistence tests (Fraunhofer ITEM)
Low thermal conductivity and excellent thermal shock resistance
Light and flexible for easy installation
Binder-free, so no off-gassing when heated
Spun fibre with high tensile strength (>=50-60 kPa)

Specifications

Grades	New-Bio 1200 (1200C), New-Bio 1300 (1260C max.)
Density	96, 128 kg/m3
Thickness	12.5, 25, 50 mm
Width / length	600 mm / 14,400, 7,200, 3,600 mm
Colour	White
Tensile strength	>=60 kPa (1200); >=50 kPa (1300)
Linear shrinkage (24 h)	<=3 % at 1200C; 1300: <=5 % at 1260C
Thermal conductivity 128K	1200: 0.080 W/mK (400C), 0.250 (1000C)
Composition (1200)	SiO2 58-67 %, CaO 26-34 %, MgO 2-8 %
Source	KCC CERAK WOOL New-Bio catalogue (2025.11)

NEW-BIO 1200 BLANKET 96K 12.5T 600x14400		Grade: New-Bio 1200 \| Density: 96 kg/m3 \| Thickness: 12.5 mm \| Size: 600 x 14400 mm \| Max temp: 1200C
NEW-BIO 1200 BLANKET 96K 25T 600x7200		Grade: New-Bio 1200 \| Density: 96 kg/m3 \| Thickness: 25 mm \| Size: 600 x 7200 mm \| Max temp: 1200C
NEW-BIO 1200 BLANKET 96K 50T 600x3600		Grade: New-Bio 1200 \| Density: 96 kg/m3 \| Thickness: 50 mm \| Size: 600 x 3600 mm \| Max temp: 1200C
NEW-BIO 1200 BLANKET 128K 12.5T 600x14400		Grade: New-Bio 1200 \| Density: 128 kg/m3 \| Thickness: 12.5 mm \| Size: 600 x 14400 mm \| Max temp: 1200C
NEW-BIO 1200 BLANKET 128K 25T 600x7200		Grade: New-Bio 1200 \| Density: 128 kg/m3 \| Thickness: 25 mm \| Size: 600 x 7200 mm \| Max temp: 1200C
NEW-BIO 1200 BLANKET 128K 50T 600x3600		Grade: New-Bio 1200 \| Density: 128 kg/m3 \| Thickness: 50 mm \| Size: 600 x 3600 mm \| Max temp: 1200C
NEW-BIO 1300 BLANKET 96K 12.5T 600x14400		Grade: New-Bio 1300 \| Density: 96 kg/m3 \| Thickness: 12.5 mm \| Size: 600 x 14400 mm \| Max temp: 1260C
NEW-BIO 1300 BLANKET 96K 25T 600x7200		Grade: New-Bio 1300 \| Density: 96 kg/m3 \| Thickness: 25 mm \| Size: 600 x 7200 mm \| Max temp: 1260C
NEW-BIO 1300 BLANKET 96K 50T 600x3600		Grade: New-Bio 1300 \| Density: 96 kg/m3 \| Thickness: 50 mm \| Size: 600 x 3600 mm \| Max temp: 1260C
NEW-BIO 1300 BLANKET 128K 12.5T 600x14400		Grade: New-Bio 1300 \| Density: 128 kg/m3 \| Thickness: 12.5 mm \| Size: 600 x 14400 mm \| Max temp: 1260C
NEW-BIO 1300 BLANKET 128K 25T 600x7200		Grade: New-Bio 1300 \| Density: 128 kg/m3 \| Thickness: 25 mm \| Size: 600 x 7200 mm \| Max temp: 1260C
NEW-BIO 1300 BLANKET 128K 50T 600x3600		Grade: New-Bio 1300 \| Density: 128 kg/m3 \| Thickness: 50 mm \| Size: 600 x 3600 mm \| Max temp: 1260C

Ceramic Fibre InsulationKCC Corporation

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC CERAK WOOL New-Bio Blanket (Bio-Soluble Fibre, 1200/1260C)

Brand KCC Corporation·Ceramic Fibre Insulation

Available part numbers (12)

NEW-BIO 1200 BLANKET 96K 12.5T 600x14400, NEW-BIO 1200 BLANKET 96K 25T 600x7200, NEW-BIO 1200 BLANKET 96K 50T 600x3600, NEW-BIO 1200 BLANKET 128K 12.5T 600x14400, NEW-BIO 1200 BLANKET 128K 25T 600x7200, NEW-BIO 1200 BLANKET 128K 50T 600x3600, NEW-BIO 1300 BLANKET 96K 12.5T 600x14400, NEW-BIO 1300 BLANKET 96K 25T 600x7200, NEW-BIO 1300 BLANKET 96K 50T 600x3600, NEW-BIO 1300 BLANKET 128K 12.5T 600x14400 + 2 more — see full table ↓

How to order

Send the KCC Corporation part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
