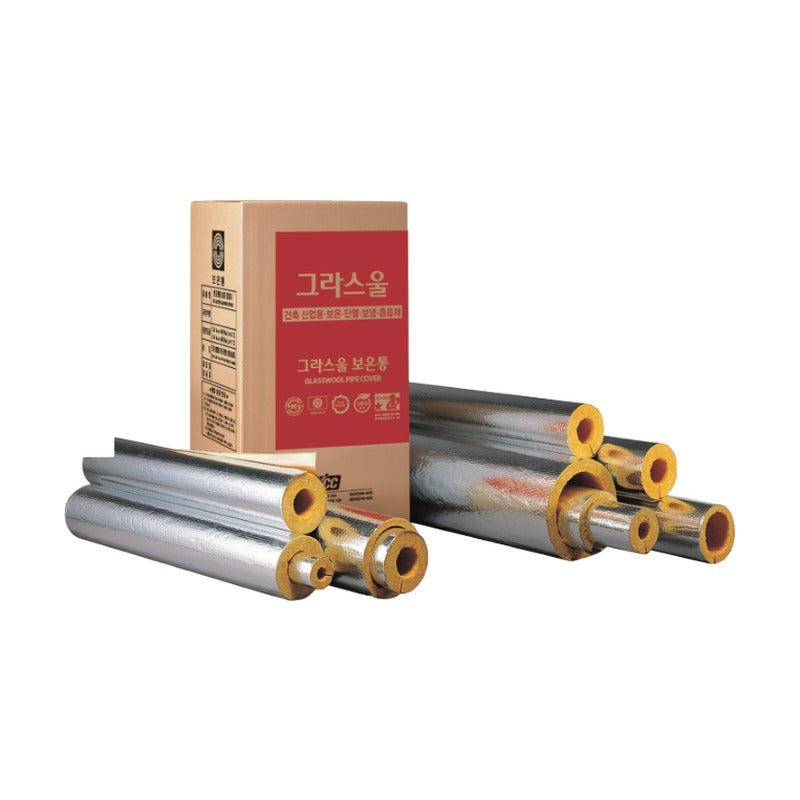

KCC Glass Wool SELF COVER Pipe Insulation (Foil Faced, 60K)

KCC Glass Wool SELF COVER Pipe Insulation (Foil Faced, 60K)

SELF COVER is CMP-formed glass wool pipe section faced with fire-retardant, waterproof silver foil kraft and a double-sided tape lap for one-step installation and finishing.

Key features

  • CMP process: no eccentricity or thickness deviation
  • Fire-retardant, waterproof silver foil kraft facing
  • Double-sided tape lap: install and finish in one step
  • Non-combustible alternative to PE/rubber pipe insulation
  • Thicknesses 25, 40 and 50 mm for 15-250A pipes

Specifications

Density 60 kg/m3
Pipe sizes 15-250A
Thickness 25 / 40 / 50 mm
Thermal conductivity (20 C) 0.034 W/mK measured; KS <= 0.036
Thermal conductivity (70 C) 0.042 W/mK measured; KS <= 0.043
Hot shrinkage temperature 350 C or higher
Standards KS L 9102, JIS A 9504
Facing Silver foil kraft with self-adhesive lap
Source KCC Glass Wool catalogue; KCC piping insulation catalogue
SELF COVER 60K 25T 15-200A Density: 60 kg/m3 | Thickness: 25 mm | Pipe size: 15-200A
SELF COVER 60K 40T 15-250A Density: 60 kg/m3 | Thickness: 40 mm | Pipe size: 15-250A
SELF COVER 60K 50T 15-250A Density: 60 kg/m3 | Thickness: 50 mm | Pipe size: 15-250A
Pipe InsulationKCC Corporation
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC Glass Wool SELF COVER Pipe Insulation (Foil Faced, 60K)

Brand KCC Corporation·Pipe Insulation

Available part numbers (3)

SELF COVER 60K 25T 15-200A, SELF COVER 60K 40T 15-250A, SELF COVER 60K 50T 15-250A

How to order

Send the KCC Corporation part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SELF COVER 60K 25T 15-200ADensity: 60 kg/m3 | Thickness: 25 mm | Pipe size: 15-200A
SELF COVER 60K 40T 15-250ADensity: 60 kg/m3 | Thickness: 40 mm | Pipe size: 15-250A
SELF COVER 60K 50T 15-250ADensity: 60 kg/m3 | Thickness: 50 mm | Pipe size: 15-250A
