KCC Mineral Wool Board Insulation (Felt & Board, 60-200 kg/m3)

KCC Mineral Wool Board Insulation (Felt & Board, 60-200 kg/m3)

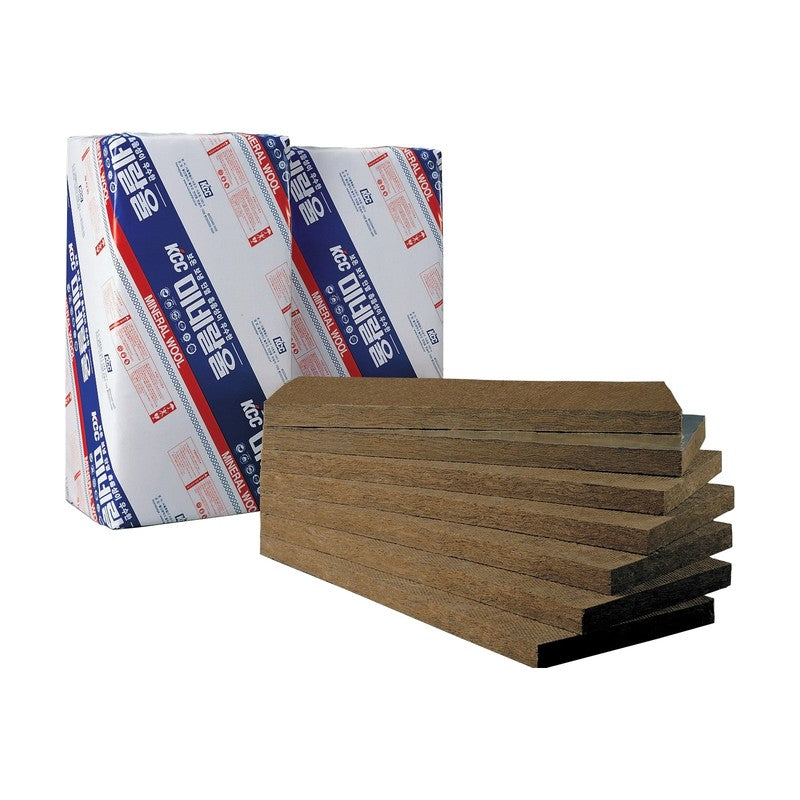

KCC Mineral Wool Board is a rigid inorganic man-made mineral fibre board made with thermosetting resin and water repellent, offering thermal insulation, sound absorption and heat resistance for buildings, tanks, boilers and thermal equipment.

Key features

  • Pendulum System production for uniform quality and improved physical properties
  • Thermal conductivity 0.035-0.037 W/mK at 20C depending on type
  • Non-combustible inorganic material, asbestos-free
  • Water-repellent treated; resistant to acids, alkalis and weathering
  • Light and easy to cut; can be faced with wire mesh, silver foil or metal lath

Specifications

Material Mineral wool (man-made mineral fibre)
Types Felt (60K), Board 1 (80/100K), Board 2 (120/140K), Board 3 (180/200K)
Density 60-200 kg/m3
Thickness 25, 50, 75, 80, 100 mm
Standard size 500 x 1000 mm (width 0.5 or 1 m per spec table)
Thermal conductivity 0.035-0.037 W/mK (20C); 0.042-0.044 W/mK (70C)
Thermal shrinkage temp. Felt over 400C; Board over 600C
Fire performance Non-combustible material (KS F ISO 1182, KS F 2271)
Related standards KS L 9102, JIS A 9504, ASTM C612
Source KCC Mineral Wool catalogue (2025.03)
MINERAL WOOL FELT 60K 25T 500x1000 Type: Felt | Density: 60 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.037 W/mK
MINERAL WOOL FELT 60K 50T 500x1000 Type: Felt | Density: 60 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.037 W/mK
MINERAL WOOL FELT 60K 75T 500x1000 Type: Felt | Density: 60 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.037 W/mK
MINERAL WOOL FELT 60K 80T 500x1000 Type: Felt | Density: 60 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.037 W/mK
MINERAL WOOL FELT 60K 100T 500x1000 Type: Felt | Density: 60 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.037 W/mK
MINERAL WOOL BOARD 80K 25T 500x1000 Type: Board 1 | Density: 80 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 80K 50T 500x1000 Type: Board 1 | Density: 80 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 80K 75T 500x1000 Type: Board 1 | Density: 80 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 80K 80T 500x1000 Type: Board 1 | Density: 80 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 80K 100T 500x1000 Type: Board 1 | Density: 80 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 100K 25T 500x1000 Type: Board 1 | Density: 100 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 100K 50T 500x1000 Type: Board 1 | Density: 100 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 100K 75T 500x1000 Type: Board 1 | Density: 100 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 100K 80T 500x1000 Type: Board 1 | Density: 100 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 100K 100T 500x1000 Type: Board 1 | Density: 100 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 110K 25T 500x1000 Type: Board | Density: 110 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 110K 50T 500x1000 Type: Board | Density: 110 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 110K 75T 500x1000 Type: Board | Density: 110 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 110K 80T 500x1000 Type: Board | Density: 110 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 110K 100T 500x1000 Type: Board | Density: 110 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 120K 25T 500x1000 Type: Board 2 | Density: 120 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 120K 50T 500x1000 Type: Board 2 | Density: 120 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 120K 75T 500x1000 Type: Board 2 | Density: 120 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 120K 80T 500x1000 Type: Board 2 | Density: 120 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 120K 100T 500x1000 Type: Board 2 | Density: 120 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 140K 25T 500x1000 Type: Board 2 | Density: 140 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 140K 50T 500x1000 Type: Board 2 | Density: 140 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 140K 75T 500x1000 Type: Board 2 | Density: 140 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 140K 80T 500x1000 Type: Board 2 | Density: 140 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 140K 100T 500x1000 Type: Board 2 | Density: 140 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.035 W/mK
MINERAL WOOL BOARD 160K 25T 500x1000 Type: Board | Density: 160 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 160K 50T 500x1000 Type: Board | Density: 160 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 160K 75T 500x1000 Type: Board | Density: 160 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 160K 80T 500x1000 Type: Board | Density: 160 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 160K 100T 500x1000 Type: Board | Density: 160 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm
MINERAL WOOL BOARD 180K 25T 500x1000 Type: Board 3 | Density: 180 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 180K 50T 500x1000 Type: Board 3 | Density: 180 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 180K 75T 500x1000 Type: Board 3 | Density: 180 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 180K 80T 500x1000 Type: Board 3 | Density: 180 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 180K 100T 500x1000 Type: Board 3 | Density: 180 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 200K 25T 500x1000 Type: Board 3 | Density: 200 kg/m3 | Thickness: 25 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 200K 50T 500x1000 Type: Board 3 | Density: 200 kg/m3 | Thickness: 50 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 200K 75T 500x1000 Type: Board 3 | Density: 200 kg/m3 | Thickness: 75 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 200K 80T 500x1000 Type: Board 3 | Density: 200 kg/m3 | Thickness: 80 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
MINERAL WOOL BOARD 200K 100T 500x1000 Type: Board 3 | Density: 200 kg/m3 | Thickness: 100 mm | Size: 500 x 1000 mm | k at 20C: 0.036 W/mK
