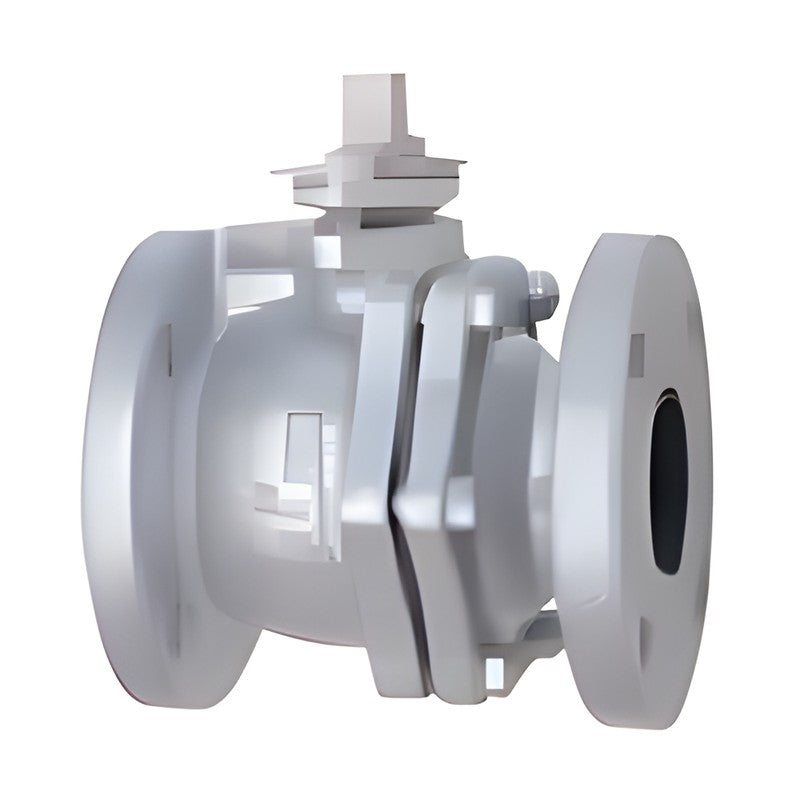

KITZ 10K/Class 125 Cast Iron Ball Valve (10FCT, 10FCTB, 125FCTB)

KITZ 10K/Class 125 Cast Iron Ball Valve (10FCT, 10FCTB, 125FCTB)

KITZ cast iron ball valves with 304SS/CF8 ball and PTFE seats, threaded (10FCT) or flanged to JIS 10K FF and ASME B16.1 Class 125 FF, in full and reduced bore.

Key features

  • FC200 or A126 Cl.B body, 403SS stem, 304SS/CF8 ball
  • PTFE ball seats, gland packing and gasket
  • Full bore (10FCT, 10FCTB, 125FCTB) or reduced bore (10FCTR, 125FCTR)
  • G-10FCTB: gear operated 10 in
  • 10FCT: 120 °C non-shock water 1.4 MPa, saturated steam 0.7 MPa

Specifications

Figs 10FCT, 10FCTB/G-10FCTB, 10FCTR, 125FCTB, 125FCTR
Manufacturer KITZ Corporation, Japan
Valve type Ball
Size range 10A - 250A
Dimensions L length, H height, D handle length (mm)
Stem 403SS
Ball 304SS/CF8
Seat PTFE
Gland packing PTFE
Gasket PTFE
Handle DI/CS
Source KITZ General Catalog E-020=26, p. 76
10FCT 10A Size: 3/8 in (10A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 72 mm | H: 71 mm | D: 130 mm
10FCT 15A Size: 1/2 in (15A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 80 mm | H: 102 mm | D: 130 mm
10FCT 20A Size: 3/4 in (20A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 85 mm | H: 105 mm | D: 130 mm
10FCT 25A Size: 1 in (25A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 95 mm | H: 124 mm | D: 160 mm
10FCT 32A Size: 1-1/4 in (32A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 120 mm | H: 128 mm | D: 160 mm
10FCT 40A Size: 1-1/2 in (40A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 120 mm | H: 114 mm | D: 230 mm
10FCT 50A Size: 2 in (50A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 140 mm | H: 121 mm | D: 230 mm
10FCT 65A Size: 2-1/2 in (65A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 160 mm | H: 154 mm | D: 400 mm
10FCT 80A Size: 3 in (80A) | Rating/Ends: 10K, BS21 / JIS B0203 thread | Bore: Full Bore | L: 182 mm | H: 163 mm | D: 400 mm
10FCTB 15A Size: 1/2 in (15A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 110 mm | H: 102 mm | D: 130 mm
10FCTB 20A Size: 3/4 in (20A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 120 mm | H: 105 mm | D: 130 mm
10FCTB 25A Size: 1 in (25A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 130 mm | H: 124 mm | D: 160 mm
10FCTB 32A Size: 1-1/4 in (32A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 140 mm | H: 128 mm | D: 160 mm
10FCTB 40A Size: 1-1/2 in (40A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 165 mm | H: 114 mm | D: 230 mm
10FCTB 50A Size: 2 in (50A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 180 mm | H: 121 mm | D: 230 mm
10FCTB 65A Size: 2-1/2 in (65A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 190 mm | H: 154 mm | D: 400 mm
10FCTB 80A Size: 3 in (80A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 200 mm | H: 163 mm | D: 400 mm
10FCTB 100A Size: 4 in (100A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 230 mm | H: 199 mm | D: 460 mm
10FCTB 125A Size: 5 in (125A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 300 mm | H: 219 mm | D: 460 mm
10FCTB 150A Size: 6 in (150A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 340 mm | H: 292 mm | D: 1000 mm
10FCTB 200A Size: 8 in (200A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 450 mm | H: 352 mm | D: 1500 mm
G-10FCTB 250A Size: 10 in (250A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Full Bore | L: 533 mm | H: 477 mm | D: 500 mm
10FCTR 125A Size: 5 in (125A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Reduced Bore | L: 250 mm | H: 200 mm | D: 460 mm
10FCTR 150A Size: 6 in (150A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Reduced Bore | L: 270 mm | H: 220 mm | D: 460 mm
10FCTR 200A Size: 8 in (200A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Reduced Bore | L: 290 mm | H: 295 mm | D: 1000 mm
10FCTR 250A Size: 10 in (250A) | Rating/Ends: 10K, JIS B2239 10K FF flange | Bore: Reduced Bore | L: 330 mm | H: 355 mm | D: 1500 mm
125FCTB 50A Size: 2 in (50A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Full Bore | L: 178 mm | H: 121 mm | D: 230 mm
125FCTB 65A Size: 2-1/2 in (65A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Full Bore | L: 190 mm | H: 154 mm | D: 400 mm
125FCTB 80A Size: 3 in (80A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Full Bore | L: 203 mm | H: 163 mm | D: 400 mm
125FCTB 100A Size: 4 in (100A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Full Bore | L: 229 mm | H: 199 mm | D: 460 mm
125FCTB 150A Size: 6 in (150A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Full Bore | L: 394 mm | H: 292 mm | D: 1000 mm
125FCTB 200A Size: 8 in (200A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Full Bore | L: 457 mm | H: 352 mm | D: 1500 mm
125FCTR 150A Size: 6 in (150A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Reduced Bore | L: 267 mm | H: 220 mm | D: 460 mm
125FCTR 200A Size: 8 in (200A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Reduced Bore | L: 292 mm | H: 295 mm | D: 1000 mm
125FCTR 250A Size: 10 in (250A) | Rating/Ends: Class 125, ASME B16.1 Cl.125 FF flange | Bore: Reduced Bore | L: 330 mm | H: 355 mm | D: 1500 mm
