KITZ Class 150 UB Series Butterfly Valve (150UB, GL-150UB)

KITZ Class 150 UB Series Butterfly Valve (150UB, GL-150UB)

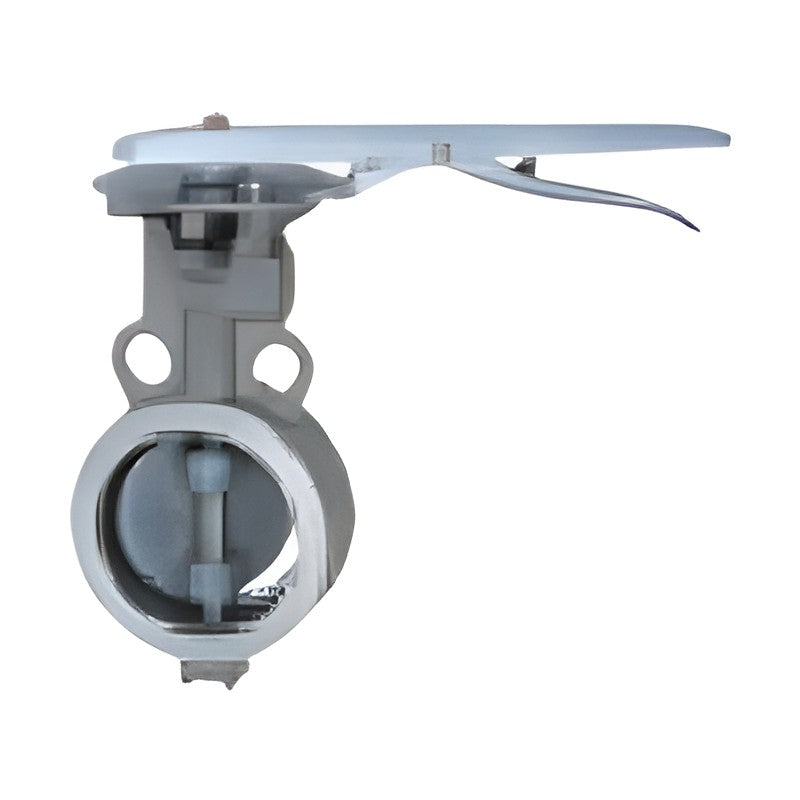

KITZ Fig. 150UB, GL-150UB: Double eccentric stainless steel butterfly valve (UB series) with PTFE seat for chemical service. ASME Class 150, Wafer (ASME CL. 150) ends, sizes 1-1/2 in to 24 in.

Key features

  • Double eccentric kinematics reduce seat wear and operating torque
  • PTFE seat ring with stainless steel supporter
  • Gland packing can be retightened without removing operator
  • Unidirectional; service -29 to +160°C
  • Body CF8; disc CF8+Cr Plating; stem 304SS
  • Operators: 150UB = lever, GL-150UB = Gear (GL)

Specifications

Pressure class ASME Class 150
End connection Wafer (ASME CL. 150)
Body CF8
Stem/Bottom Stem 304SS
Disc CF8+Cr Plating
Packing PTFE
Seat Ring PTFE
Service conditions 150UB: -29°C to +160°C 1.9 MPa; GL-150UB: -29°C to +160°C 1.9 MPa up to 12 in/1.4MPa for 14 in & above
Remarks Double Eccentric, Unidirectional
Dimension key L face-to-face, H height, D handwheel/lever; B gear (per catalogue drawing)
Source KITZ General Catalog E-020=26 (KITZ_general.pdf), p. 121
150UB 40A Size: 1-1/2 in (40A) | Operator: Lever | Dimensions (mm): L 33, H 183, D 230
150UB 50A Size: 2 in (50A) | Operator: Lever | Dimensions (mm): L 43, H 176, D 230
150UB 65A Size: 2-1/2 in (65A) | Operator: Lever | Dimensions (mm): L 46, H 186, D 230
150UB 80A Size: 3 in (80A) | Operator: Lever | Dimensions (mm): L 46, H 207, D 280
150UB 100A Size: 4 in (100A) | Operator: Lever | Dimensions (mm): L 52, H 221, D 280
150UB 125A Size: 5 in (125A) | Operator: Lever | Dimensions (mm): L 56, H 241, D 350
150UB 150A Size: 6 in (150A) | Operator: Lever | Dimensions (mm): L 56, H 263, D 350
GL-150UB 40A Size: 1-1/2 in (40A) | Operator: Gear (GL) | Dimensions (mm): L 33, H 202, D 110, B 150
GL-150UB 50A Size: 2 in (50A) | Operator: Gear (GL) | Dimensions (mm): L 43, H 192, D 140, B 150
GL-150UB 65A Size: 2-1/2 in (65A) | Operator: Gear (GL) | Dimensions (mm): L 46, H 202, D 140, B 150
GL-150UB 80A Size: 3 in (80A) | Operator: Gear (GL) | Dimensions (mm): L 46, H 226, D 170, B 195
GL-150UB 100A Size: 4 in (100A) | Operator: Gear (GL) | Dimensions (mm): L 52, H 240, D 170, B 195
GL-150UB 125A Size: 5 in (125A) | Operator: Gear (GL) | Dimensions (mm): L 56, H 261, D 200, B 204
GL-150UB 150A Size: 6 in (150A) | Operator: Gear (GL) | Dimensions (mm): L 56, H 283, D 200, B 204
GL-150UB 200A Size: 8 in (200A) | Operator: Gear (GL) | Dimensions (mm): L 71, H 348, D 310, B 280
GL-150UB 250A Size: 10 in (250A) | Operator: Gear (GL) | Dimensions (mm): L 76, H 416, D 360, B 310
GL-150UB 300A Size: 12 in (300A) | Operator: Gear (GL) | Dimensions (mm): L 83, H 443, D 360, B 310
GL-150UB 350A Size: 14 in (350A) | Operator: Gear (GL) | Dimensions (mm): L 92, H 476, D 500, B 358
GL-150UB 400A Size: 16 in (400A) | Operator: Gear (GL) | Dimensions (mm): L 102, H 572, D 500, B 360
GL-150UB 450A Size: 18 in (450A) | Operator: Gear (GL) | Dimensions (mm): L 114, H 607, D 500, B 360
GL-150UB 500A Size: 20 in (500A) | Operator: Gear (GL) | Dimensions (mm): L 127, H 623, D 500, B 360
GL-150UB 600A Size: 24 in (600A) | Operator: Gear (GL) | Dimensions (mm): L 154, H 757, D 500, B 377
